B. WALL MOUNTINg
• Find a location on the wall that is near the computer or other AV
equipment that will be connected to the Media Connector.
• Power for the Media Connector must be within 6 ft of this location.
1. Hold Media Connector up to the wall and ensure that it is
level. Mark the mounting hoes with a pencil. The back of the
Media Connector that contains the inputs may be mounted in
any position that is desirable.
2. For sheetrock walls, use the supplied screw-in sheetrock
anchors and screws to secure the Media Connector to the
wall. It is best to drill a 1/4" pilot hole at the two mounting
locations before inserting the anchors.
3. Once the anchors are installed, place the Media Connector
over the mounting anchors and insert the provided screws
through the mounting holes and into the anchor.
4. If walls are concrete or cinder block, appropriate mounting
hardware should be purchased locally.

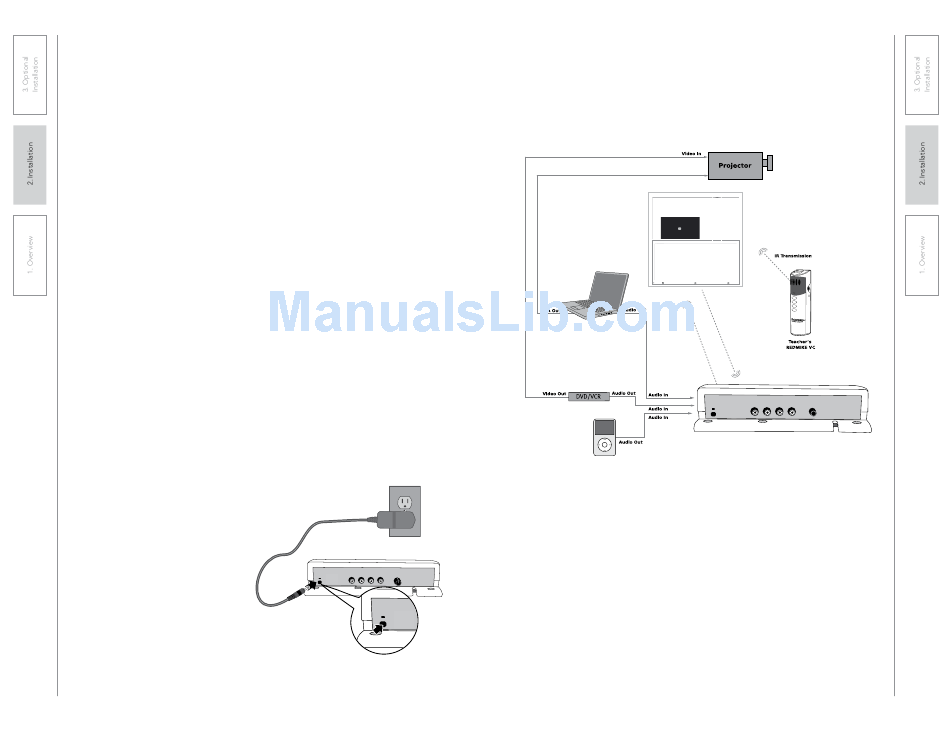

6. CONNECTING THE POWER SUPPLY

1. Locate the DC port on the Media
Connector.
2. Place the DC end of power cord
into DC port.
3. Place the AC end of power cord
into an electrical outlet.
4. Press the power-on button
located on the front of the Media
Connector.
20
AUDIO
AUDIO AUDIO AUDIO AUDIO IN
1 2 3 4
VOLUME
5V 1.0A USB
POWER
AUDIO AUDIO AUDIO AUDIO
1 2 3 4
5V 1.0A USB
POWER

7. AUDIO INTEGRATION

The Media Connector is designed to integrate multiple audio sources quickly
and easily.
TopCAT
AUDIO
IN
VOLUME
AUDIO
AUDIO AUDIO AUDIO AUDIO
IN
1 2 3 4
VOLUME
5V 1.0A
