GAS COOKTOP INSTALLATION INSTRUCTIONS
D. Adjust the "LOW" setting for regular surface
burner valves (Figure 10)
a. Push in and turn control to lITE until burner ignites.
b. Quickly turn knob to lOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. Insert a thin-bladed screwdriver into the hollow valve
stem and engage the slotted screw inside. Flame size
can be increased or decreased with the turn of the
screw. Turn counterclockwise to increase flame size.
Turn clockwise to decrease flame size. Adjust flame
until you can quickly turn knob from lITE to lOWEST
POSITION without extinguishing the flame. Flame
should be as small as possible without going out.
Counterclockwise
Hollow
Valve
Stem
Regular
Burner
Valve

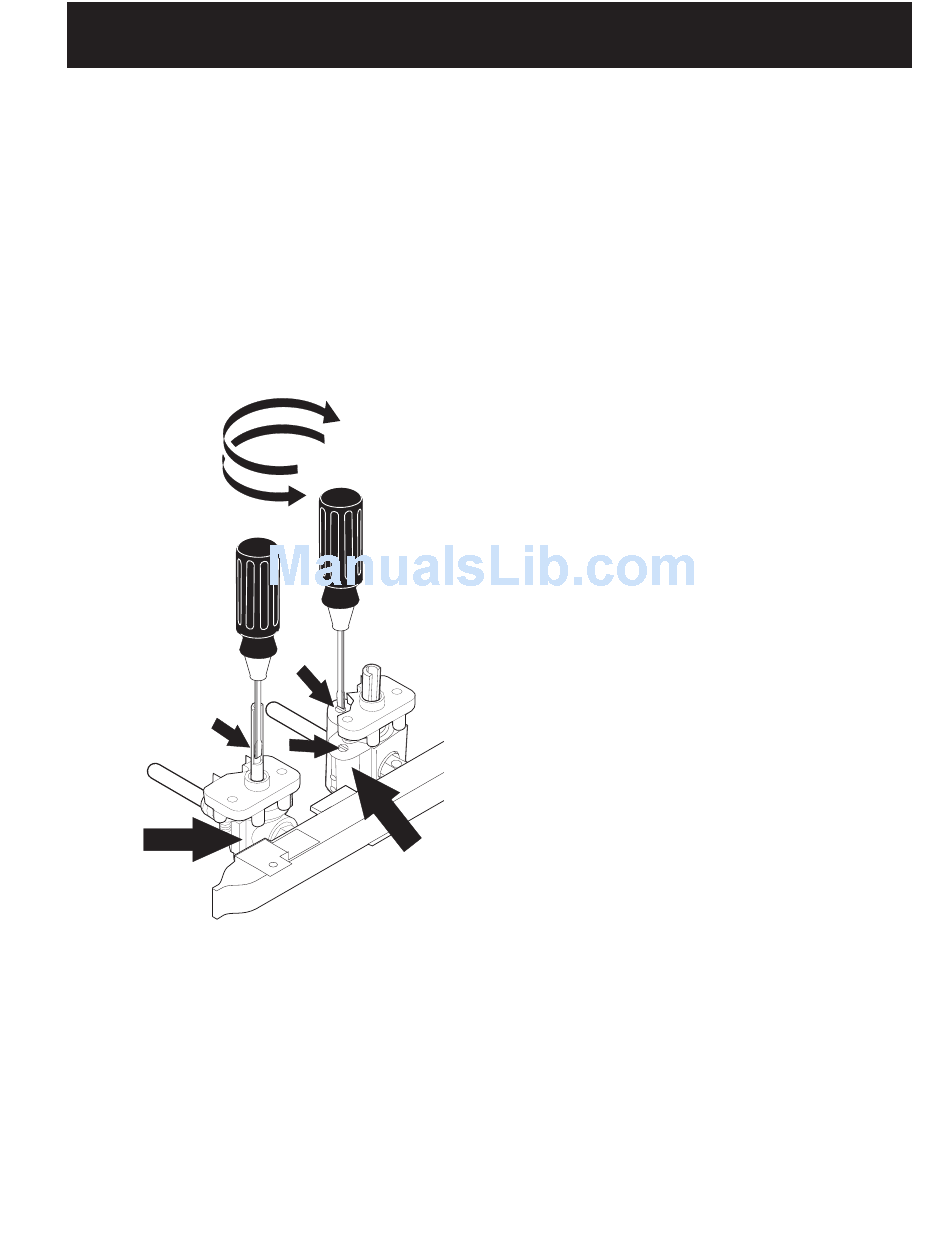

Figure 10
Note: Air mixture adjustment is not required on surface
burners.
Clockwise
A
B
Dual
Burner
Valve
E. Adjust the "LOW" setting of the dual burner surface
valve (Figure 10) (some models):
Note: On the dual valve the low setting of each portion
should be adjusted individually.
a. Push in and turn knob to lITE then continue to turn
until only the inner portion of the dual burner stays on.
b. Quickly turn knob to lOWEST POSITION.
c. If burner goes out, reset control to OFF.
d. Remove the surface burner control knob.
e. The inner portion of the dual burner flame size
can be increased or decreased with the turn of the
screw B. Use screw A to adjust the low flame size
of the outer portion of the dual burner. Turn the
screw counterclockwise to increase flame size. Turn
the screw clockwise to decrease flame size. Adjust
flame until you can quickly turn knob from HIGH to
LOWEST POSITION without extinguishing the flame.
Flame should be as small as possible without going
out.
Note: Air mixture adjustment is not required on surface
burners.
When All Hookups are Complete
Make sure all controls are left in the OFF position.
Make sure the flow of combustion and ventilation air to
the cooktop is unobstructed.

Model and Serial Number Location

The serial plate is located on the underside of the
cooktop.
When ordering parts for or making inquires about your
range, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
of your cooktop.
Your serial plate also tells you the rating of the burners,
the type of fuel and the pressure the cooktop was
adjusted for when it left the factory.

Before You Call for Service

Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide.
It may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
Refer to the warranty in your Use and Care Guide for
our service phone number and address. Please call or
write if you have inquiries about your product and/or
need to order parts.
9
