4.2

Replacing Parts

For any spare parts that are required, please contact either your supplier or the manufacturer
directly. You will need the model name i.e. model number, the gas type, the type of control
and serial number. Servicing and repairs to your appliance must be carried out by a Gas Safe
engineer.
Only approved parts must be used. Isolation of the appliance from the gas supply will
be necessary, before any 'work' is carried out.
4.2.1

Burner Components Removal and Replacement

For ease of access to all the burner
components, we recommend removal of
the entire burner assembly from the
decorative cast iron stove surround.
Please inspect the condition of any seals
or spacers before re-assembly and
replace if necessary.
Section 3.9 describes the installation
procedure of the burner assembly into
the decorative cast iron stove surround.
Reverse this procedure till you have
easy access to the component you wish
to service or replace.

4.2.2 Injector Replacement

1. Remove the cast iron top, sides and front
of the stove.
2. Remove the glass door panel, the fuel
bed components and the front and rear
ceramics.
3. Lift out the top lining board, followed by
the two sides and the back.
4. Remove the main burner. See FIG. 31
5. Grip the injector nose whilst undoing the
injector tube nut.
Burner s upport
brac k et
Inj ec tor
Sec uri ng
Nuts
Inj ec tor tube
nut

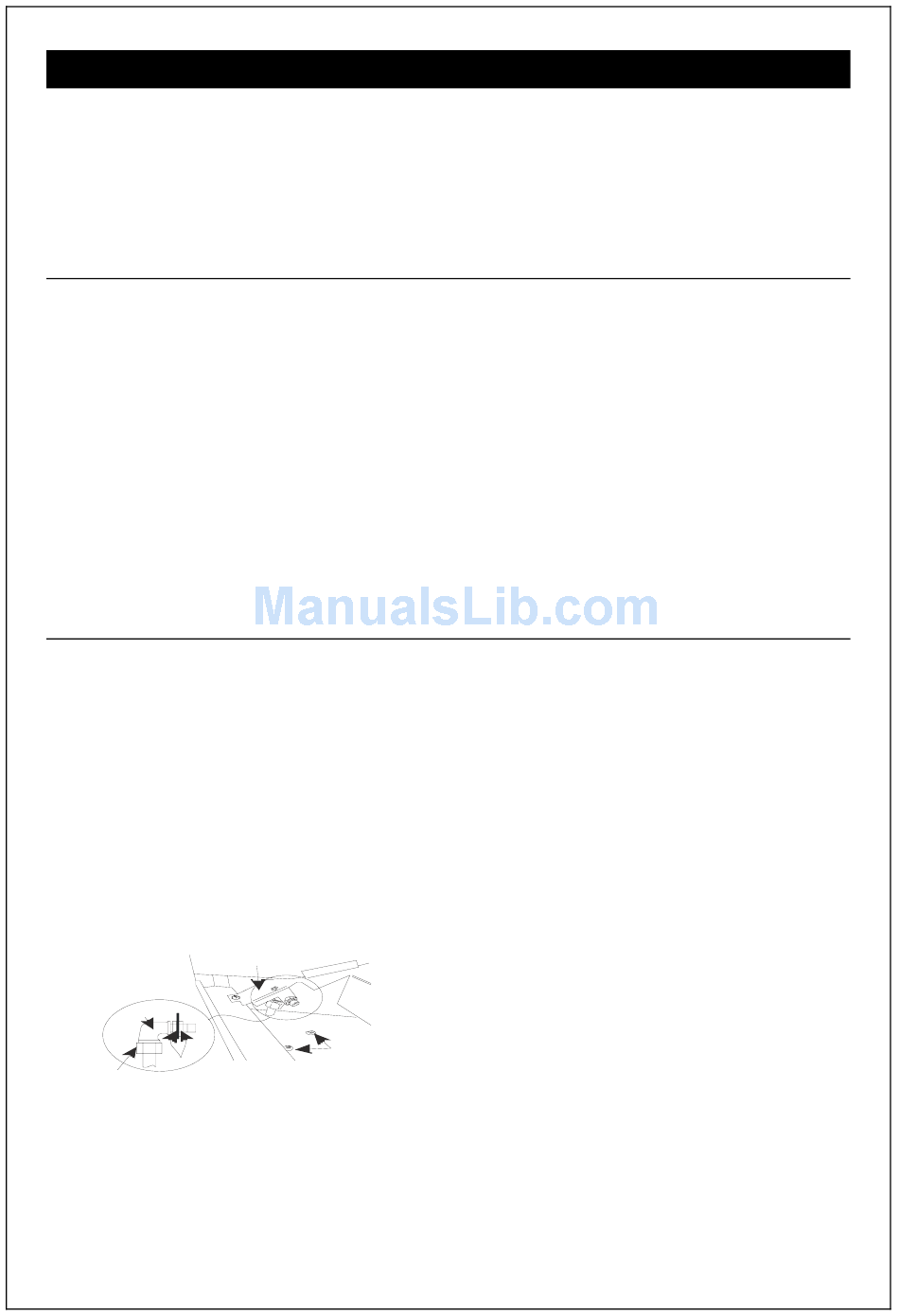

FIGURE 30. INJECTOR & VALVE DETAIL
NOTE: If at any time the pilot assembly
is removed or replaced, the spacer
should be replaced as well.
6. Unscrew the outer injector securing nut.
Unscrew the self tapping screws,
holding the burner support bracket in
place. Lift away the support bracket.
7. Remove the injector and replace it with
the new one. Change over the rear
securing nut.
8. Replace the burner support bracket and
secure with the four self tapping screws.
Replace the outer injector securing nut
and tighten. Grip the injector nose and
tighten the tube nut, making sure that the
injector is correctly aligned.
9. Replace all the other components.
Valv e Brac k et
fix ing s c rews
