Installation & Operating Instructions
Variants Covered: Ignite 7 (CD1), Hereford 7 (CD2)
Conventional Flue Natural Gas Stove
PLEASE LEAVE THESE INSTRUCTIONS WITH THE
Please note gas installations MUST only be carried out by installers who are
Warning
- Appliance should not be used if the glass in the door is cracked,
200747_1TB Jan 2019
Model: Gas Q7 MK2
& Desire 7 (SD1)
Top Flue Outlet Only
Chimney closure plates are not supplied
Gas Safe registered.
damaged or broken.
END USER
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broseley Gas Q7 MK2
Summary of Contents for Broseley Gas Q7 MK2

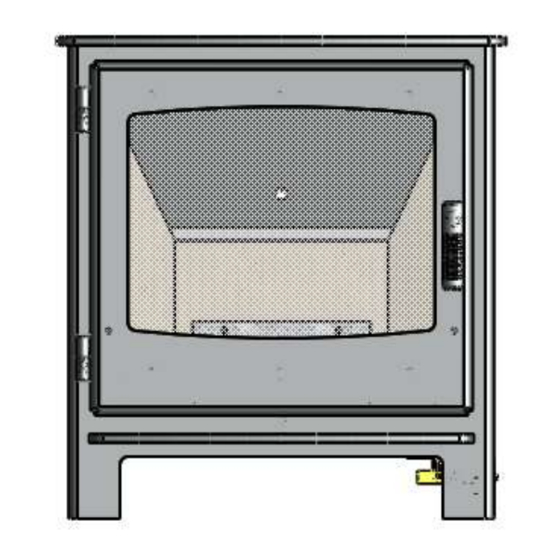

- Page 1 Installation & Operating Instructions Model: Gas Q7 MK2 Variants Covered: Ignite 7 (CD1), Hereford 7 (CD2) & Desire 7 (SD1) Conventional Flue Natural Gas Stove Top Flue Outlet Only END USER PLEASE LEAVE THESE INSTRUCTIONS WITH THE Chimney closure plates are not supplied Please note gas installations MUST only be carried out by installers who are Gas Safe registered.
-
Page 2: Table Of Contents
Contents Introduction Packing List Specification Dimensions Hearth Requirements Chimney Requirements Assembly Burner Installation Mica Board Installation Fitting the Decorative Log Retainer Connecting the TTB Sensor Positioning the logs Assembling the door handle Gas Connection & Pressure Testing Spillage Testing Maintenance Operating the Stove Cleaning the Stove Curing the Paint... -
Page 3: Introduction
Introduction THANK YOU FOR PURCHASING A BROSELEY GAS STOVE Broseley Fires Ltd, a family run company, was founded as an appliance and design development company in 1975. Since then we have built up an enviable reputation for the quality, reliability and fuel efficiency of our stoves. -
Page 4: Specification
Specification Heat Input (Gross) 6.5kW Gas Category Supply Pressure 20 mbar Gas Rate 0.602 m Injector Size 125mm (5”) Flue diameter Country of destination GB, IE Efficiency Class Class 1 Nominal Output 4.7kW 130 mg/kWh (GCV) Please note this product is designed to only use natural gas G20. Dimensions Ignite CD1 Q7 - WEIGHT 75 Kg Hereford CD2 Q7 –... -
Page 5: Hearth Requirements
Hearth Requirements The appliance needs to be located onto a solid non-combustible hearth with a minimum thickness of 12mm. The hearth must be capable of withstanding the weight of the appliance. NB Measurements taken from the Lid of the stove (Dimension C on page 4): Ensure all minimum clearances to combustible materials are complied with as below: Hearth Protrusion (in front of the appliance) -
Page 6: Chimney Requirements
Chimney Requirements Please note Broseley Fires do not provide flue pipes, closure plates or any other associated accessory. Top Flue Outlet Only The stove must be installed in accordance with current gas and buildings regulations BS5871: Part1. The appliance can be installed in any adequate area suitable for solid fuel fires and stoves. -
Page 7: Burner Installation
Assembly - Burner Installation The burner will come pre-fitted, however please ensure all components are present and fitted as per the information below to ensure nothing has moved (or become damaged) in transit. You will need a pozi drive screwdriver when fitting/replacing the gas burner. 1) Remove the stove body from its packaging and stand it in position. - Page 8 Assembly - Burner Installation 6) Next place the 2 x ceramic rods into the slots located in the bracket above the burner as pictured. 7) Next fit the mica boards as detailed in the next section. Page 9 200747_1TB...
-
Page 9: Mica Board Installation
Assembly – Mica Boards As with the burner, the Mica boards will be pre-fitted into the stove. The information below will assist with the removal/re-installation should they need to be removed for maintenance purposes. First fit the rear mica board as Now fit one of the side mica boards shown above. -
Page 10: Fitting The Decorative Log Retainer
Assembly – Decorative Log Retainer Using the 2 off M5 C/Sunk Bolts provided, locate the decorative trim behind the stove opening as shown and secure in position. Assembly - Fitting TTB sensor With the burner installed, thread the TTB cable from the interrupter/ splitter to the rear of the stove. -
Page 11: Positioning The Logs
Before any ceramics are placed in position ensure that the pilot is not obstructed and the burner is operating correctly. Broseley Fires Ltd accepts no responsibility for any injury sustained whilst handling hot ceramics. Ceramics which are found to be placed other than in accordance with these instructions will result in a charge being made following any service callout. - Page 12 Assembly - Positioning the Logs 2: Position the left as shown using the two pegging points, please note you should have a single peg pointing upwards at the back. 3: Do the same for the right hand side, again you should have a single peg pointing upwards...
- Page 13 Assembly - Positioning the Logs 4: Interlock the rear log into position as shown below Position the rear log as shown with the thinner end to the right and the three holes facing you. This log locates onto the pegs at the back (as established in steps 2 and 3).
- Page 14 Assembly - Positioning the Logs 5: Position the central log as shown. This log has a peg which locates into the central hole in the rear log. After step 5 your log layout should look like this. 200747_1TB...
- Page 15 Assembly - Positioning the Logs 6: Position the next log as shown so that it locates onto the peg of the central log. After step 6 your log layout should look like this. 200747_1TB...
- Page 16 Assembly - Positioning the Logs 7: The next ceramic locates into the right hole in the rear ceramic as shown. After step 7 your log layout should look like this. 200747_1TB...
- Page 17 Assembly - Positioning the Logs 8: This ceramic locates into the left most hole in the rear ceramic. You should have a peg pointing up at the front now. After step 8 your log layout should look like this. 200747_1TB...
- Page 18 Assembly - Positioning the Logs 9: Position the small front log onto the last remaining peg as shown. After step 9 your log layout should look like this. 200747_1TB...
- Page 19 Assembly - Positioning the Logs 10: Finally position the far left and far right logs as shown in the final ceramic layout below. These logs do not have location points and simply rest up against the side vermiculite as pictured. The final ceramic layout should look like this.
-
Page 20: Assembling The Door Handle
Assembly – Assembling the door handle Push the stove door closed and secure it by attaching the handle and turning it clockwise until you achieve a gas tight seal. Assembly - Gas Connection & Pressure Testing A minimum 15mm-diameter gas supply pipe must be used to within 1 metre of the installation with the final connection to the stove to be completed with the suitable 8mm semi-rigid gas pipe. -
Page 21: Spillage Testing
Spillage Testing A Spillage Test MUST be made before the installed fire is left with the customer. Carry out the test by first closing all doors and windows in the room containing the fire. Ensure that the fire is burning at full rate for a minimum of 10-15 minutes. Using a lighted smoke match, run it along under the rear edge of the stove. -
Page 22: Maintenance
Maintenance Door adjustment In the case of the door rope not providing an adequate seal to the room, products of combustion may enter the room (see warning notes), to ensure an adequate seal the door may need to be periodically adjusted as the rope seal wears with use. -
Page 23: Operating The Stove
Operating the Stove It is important to read these instructions thoroughly before lighting the stove. The gas stove operates with a traditional permanent pilot light. The knob for ignition and power control is located on the lower right hand side of the stove, the indicator in the plate shows the knob position (Marked on knob) The pilot light is located at the front left corner of the coal matrix. -
Page 24: Cleaning The Stove
Cleaning the stove We recommend only doing this when the stove is cold using a soft brush to clean any of the stove surfaces, this is normally sufficient to remove dust, ash and debris. For stubborn marks you can use a damp lint free cloth, ensure that all surfaces are dried off immediately. -
Page 25: Trouble-Shooting And Servicing
Trouble-shooting The gas pilot will not ignite or stay lit Ensure the gas is turned on at the appliance and the meter / cylinder. Check for blockages (especially after the pressure test point connection). Is there a strong spark being generated, If not firstly check that the spade connection is push fully into the pilot assembly. - Page 26 Trouble-shooting The main burner does not seem to burn correctly or will not stay alight Check the flue draft. In adverse conditions and when the flue is extremely cold it is possible the products of combustion may build up inside the stove and not exit via the flue ways correctly, in this scenario the ODS will activate and turn off the burner.
-
Page 27: Commissioning Form
Commissioning Form THIS SECTION MUST BE COMPLETED AND SIGNED BY THE INSTALLATION ENGINEER PLEASE LEAVE WITH THE CUSTOMER AND THE APPLIANCE. Size of Governor setting: (i.e.) Natural Gas 20mbar. Length and size of gas supply: _______________ Meter pressure Fire only on: ________________ All Other appliances on: __________________ Burner pressure Fire only on: _______________ All Other appliances on: __________________... -
Page 28: Guarantee
The rights given in this guarantee are limited to the UK mainland and are in addition to any to which you may have a statutory entitlement. Please retain your purchase receipt. We will need to see this in the event of a claim under warranty. Broseley Fires Ltd, First Floor, Bemodern Ltd. Unit B Knights Court,... -
Page 29: Energy Efficiency Rating
(shown in the tables above). This product MUST be installed by a Gas Safe Registered Installer. Full details are provided in this manual. Broseley Fires Ltd, First Floor, Unit B Knights Court, Archers Way, Battlefield Enterprise Park, Shrewsbury, Shropshire SY1 3GA 200747_1TB...
