CONCEPT2 DYNAMIC INDOOR ROWER
Assembly continued

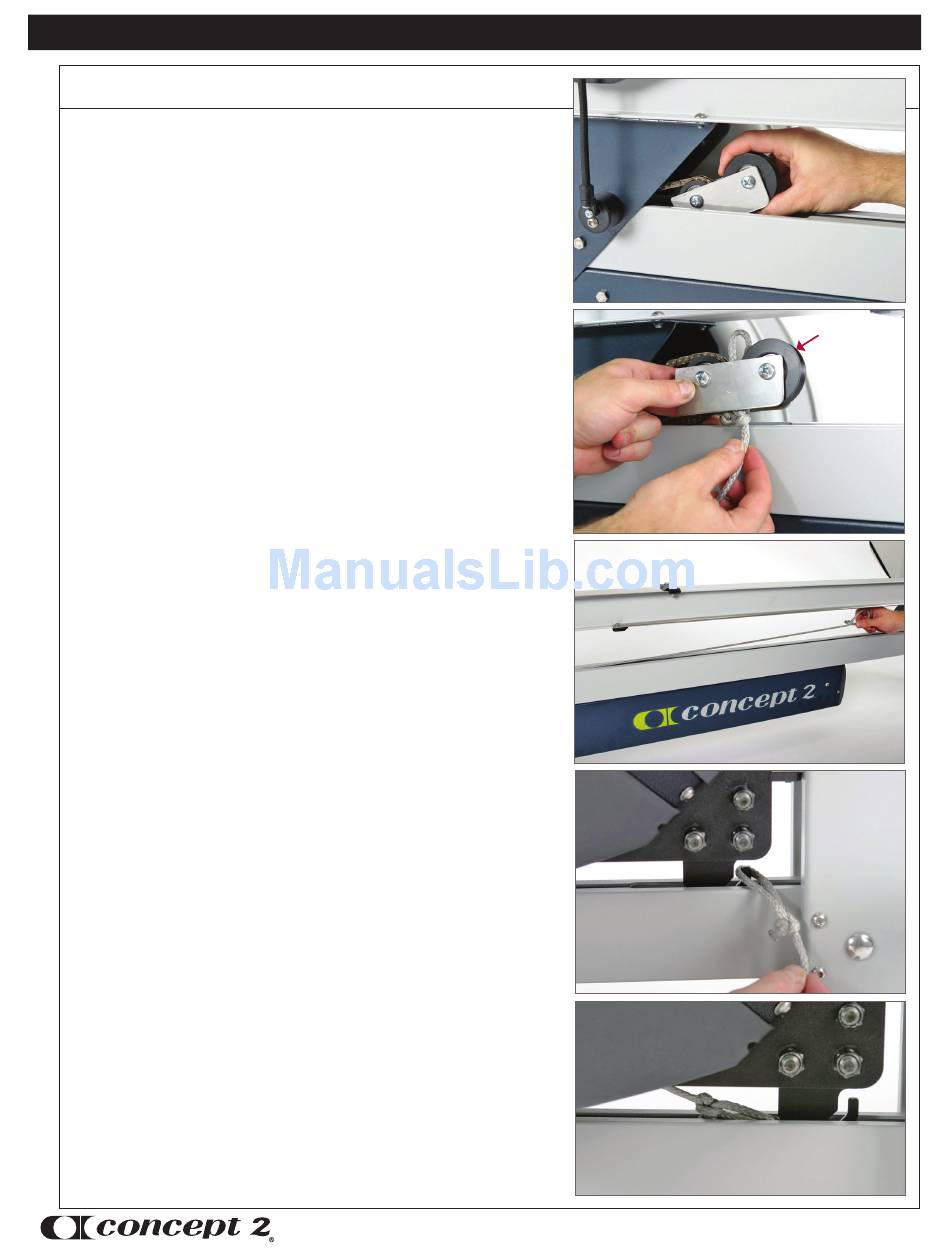

At the opposite end of the machine where the
shuttle channel meets the rear leg, reach into the
slot in the shuttle channel and grasp the shuttle.
Pull the shuttle up through the slot in the shuttle
channel so that it is exposed. See photo U.
Push the looped end of the handle drive cord up
through the shuttle (between the two pulleys) and
over the handle drive cord pulley. See photo V.
Pull the handle drive cord toward the front leg
assembly so that all the slack is taken up around
the drive cord pulley. See photo W.
Slide the foot carriage all the way to the end of
the rail near the front leg assembly. Hook the
looped end of the handle drive cord over the
exposed tip of the drive plate hook. See photo X.
Tuck the handle drive cord down into the slot in
the shuttle channel so that the knot of the looped
end is inside the shuttle channel and behind the
drive plate hook. Pull back on the handle drive
cord to ensure that the loop is fully seated at the
base of the drive plate hook. Check the knot to
ensure it is not rubbing against the top of the
shuttle channel. If it is rubbing, remove the loop
from the drive plate hook and rotate it so that the
tail of the knot is pointing down and away from
the top of the shuttle channel.
See photo Y.
photo U
photo V
photo W
photo X
photo Y
Page 7 0914
Handle
Drive Cord
Pulley
