CONCEPT2 DYNAMIC INDOOR ROWER
Assembly continued

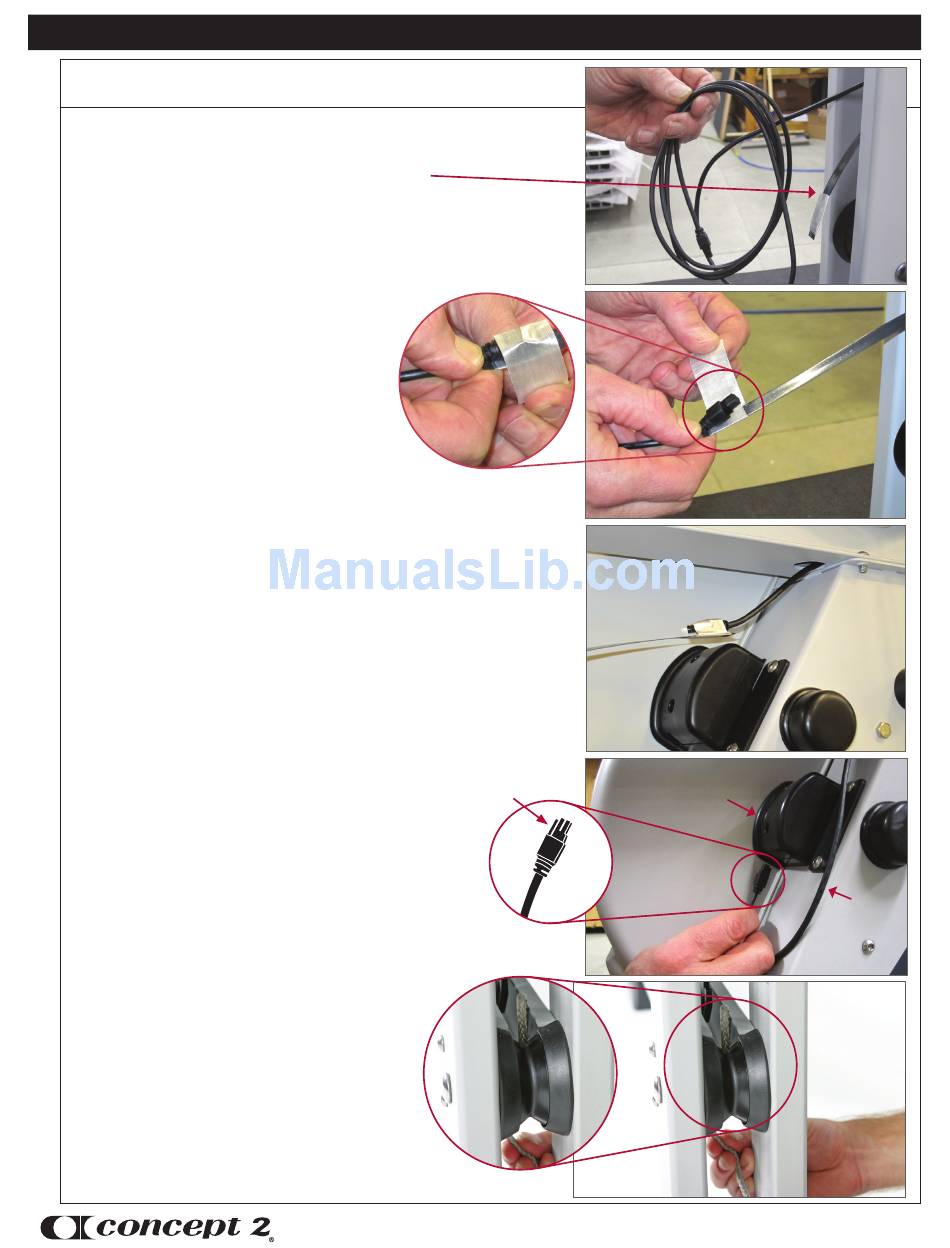

Feed it all the way through the rail assembly
until it comes out the other end. See photo P.
Partially unwrap the white tape and
wrap it around the generator cable plug,
covering the plug.
See photo Q.
Pull the black installation leader tape (with the
generator cable attached) back through the
rail assembly until it comes out the hole in the
underside of the rail assembly. See photo R.
Detach the installation leader tape from the
generator cable and plug the generator cable
into the black generator on the flywheel.
See photo S.
Be careful to position so the retainer clip is as
shown in the drawing.
Step 10:
Install the Handle Drive Cord
Push the looped end of the handle drive cord
up through the slot in the bottom of the
shuttle channel so that it is directly behind
the lower pulley. See photo T. Pull all of
the handle drive cord out of the top of the
shuttle channel and rest it on the floor.
photo P
photo Q
photo R
Retainer Clip
photo S
photo T
Page 6 0914
Generator
Generator
Cable
