CONCEPT2 DYNAMIC INDOOR ROWER

Assembly Instructions

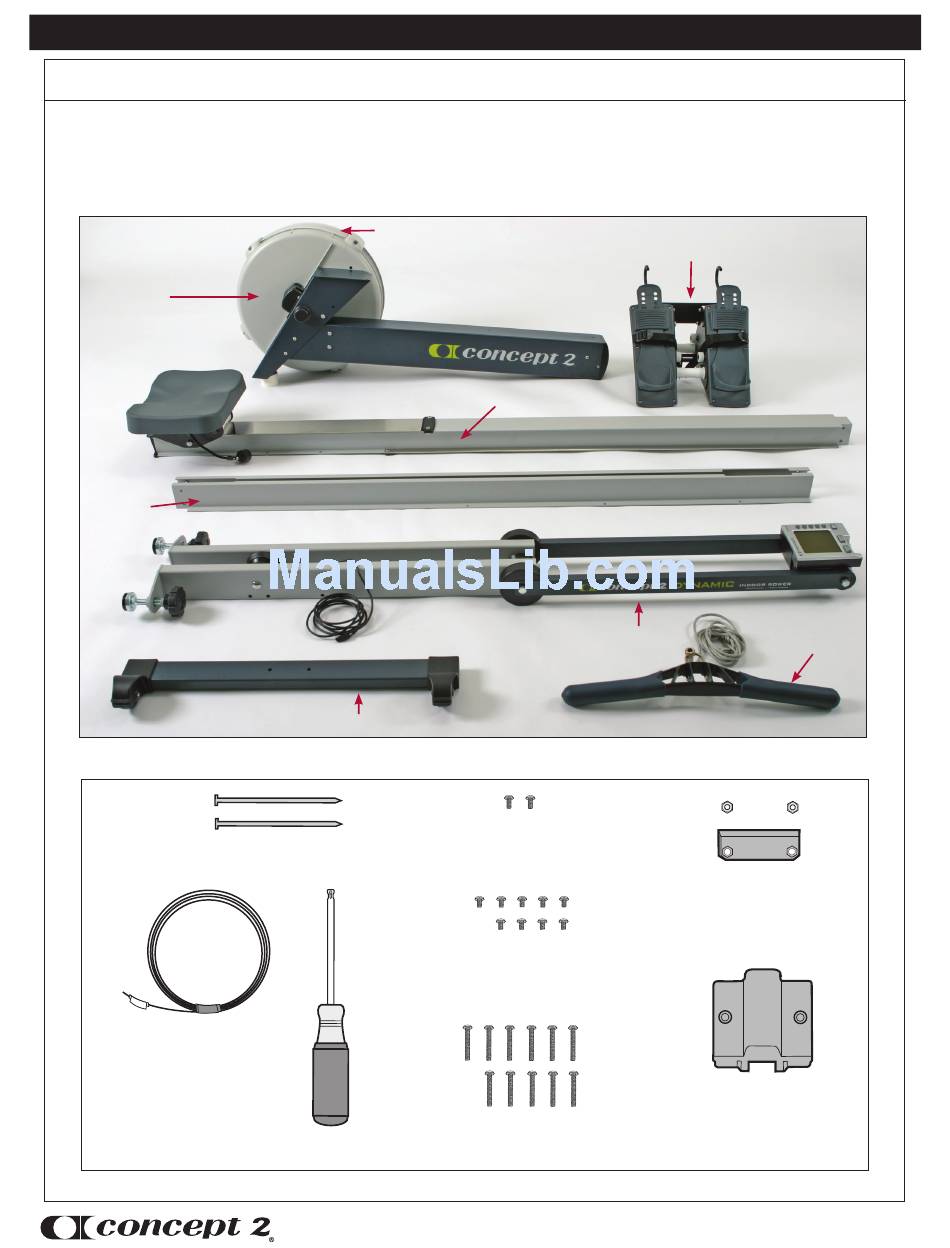

Step 1. Open the two boxes and remove all the parts. Lay out the parts as shown below and read
through the assembly instructions before beginning assembly. Note: The clear plastic shield located
on the top of the flywheel is the optional Wind Shield. See Additional Notes for usage on page 9
Flywheel
Return
Assembly
Shuttle
Channel
2 20-penny nails
Installation
leader tape
(Located in plastic
bag with manuals)
Wind Shield
Rear Foot
Parts for Assembly
2 PN 2226 T27 6 lobe drive x
1/2" patched rev. ss
9 PN 2239 T27 6 lobe drive x
3/8" patched rev. ss
11 PN 2228 T27 6 lobe drive
1 6 lobe Driver x 1 3/8" patched rev. ss
Page 2
Rail Assembly
Front Leg/Monitor Arm Assembly
0914
Foot Carriage
Handle
1 Rail Assembly
End Stop w/2 nuts
1 Front Leg End Cap
CONCEPT2.COM
