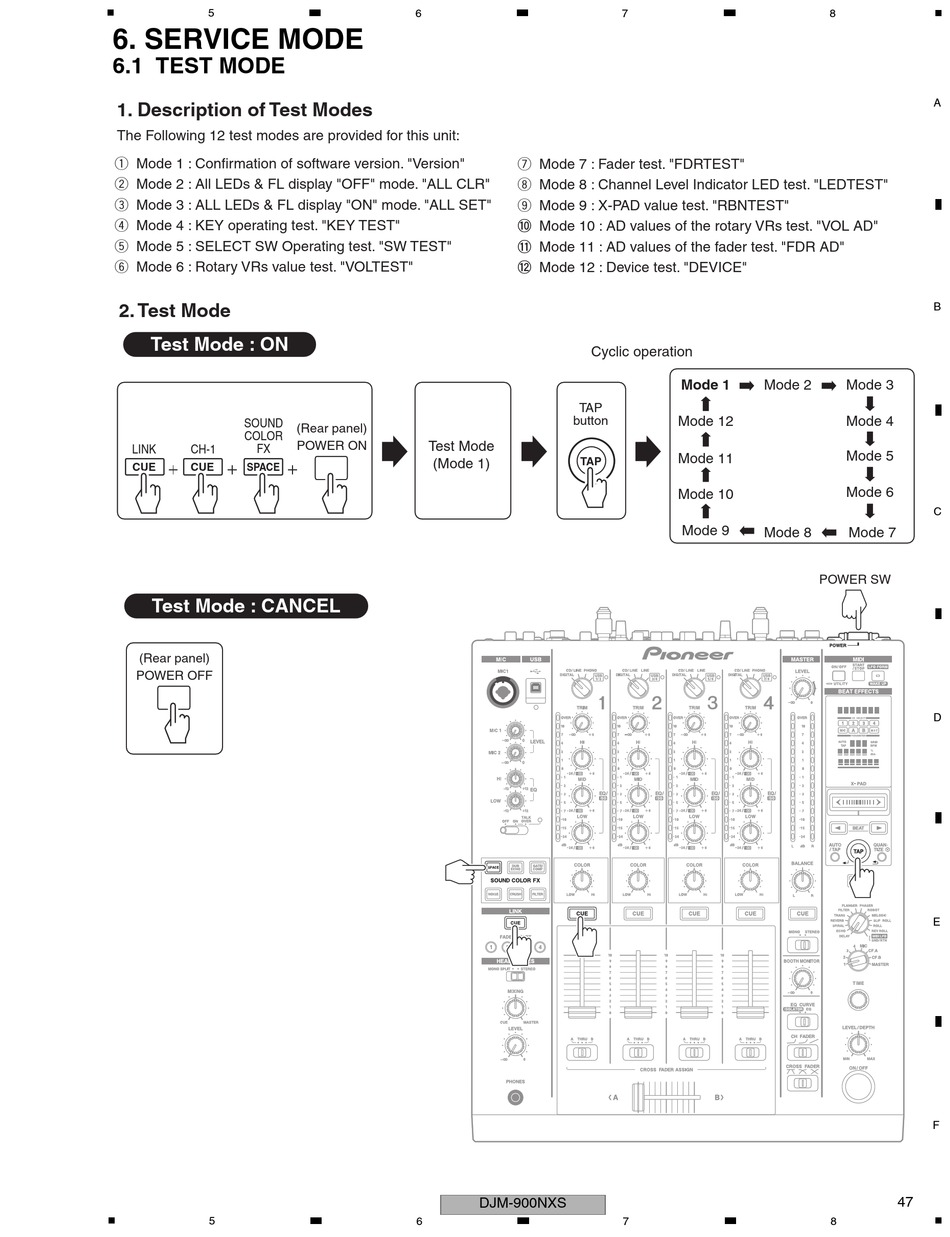

6. SERVICE MODE

6.1 TEST MODE

1. Description of Test Modes
The Following 12 test modes are provided for this unit:
1 Mode 1 : Confirmation of software version. "Version"
2 Mode 2 : All LEDs & FL display "OFF" mode. "ALL CLR"
3 Mode 3 : ALL LEDs & FL display "ON" mode. "ALL SET"
4 Mode 4 : KEY operating test. "KEY TEST"
5 Mode 5 : SELECT SW Operating test. "SW TEST"
6 Mode 6 : Rotary VRs value test. "VOLTEST"
2. Test Mode
Test Mode : ON
SOUND
COLOR
LINK CH-1 FX
CUE CUE SPACE
Test Mode : CANCEL
(Rear panel)
POWER OFF
5
6
(Rear panel)
POWER ON Test Mode
(Mode 1)
6
7
7 Mode 7 : Fader test. "FDRTEST"
8 Mode 8 : Channel Level Indicator LED test. "LEDTEST"
9 Mode 9 : X-PAD value test. "RBNTEST"
a Mode 10 : AD values of the rotary VRs test. "VOL AD"
b Mode 11 : AD values of the fader test. "FDR AD"
c Mode 12 : Device test. "DEVICE"
Cyclic operation
TAP
button
TAP
DJM-900NXS
7
8
Mode 1 Mode 2 Mode 3
Mode 12 Mode 4
Mode 5
Mode 11
Mode 6
Mode 10
Mode 9
Mode 8 Mode 7
POWER SW
