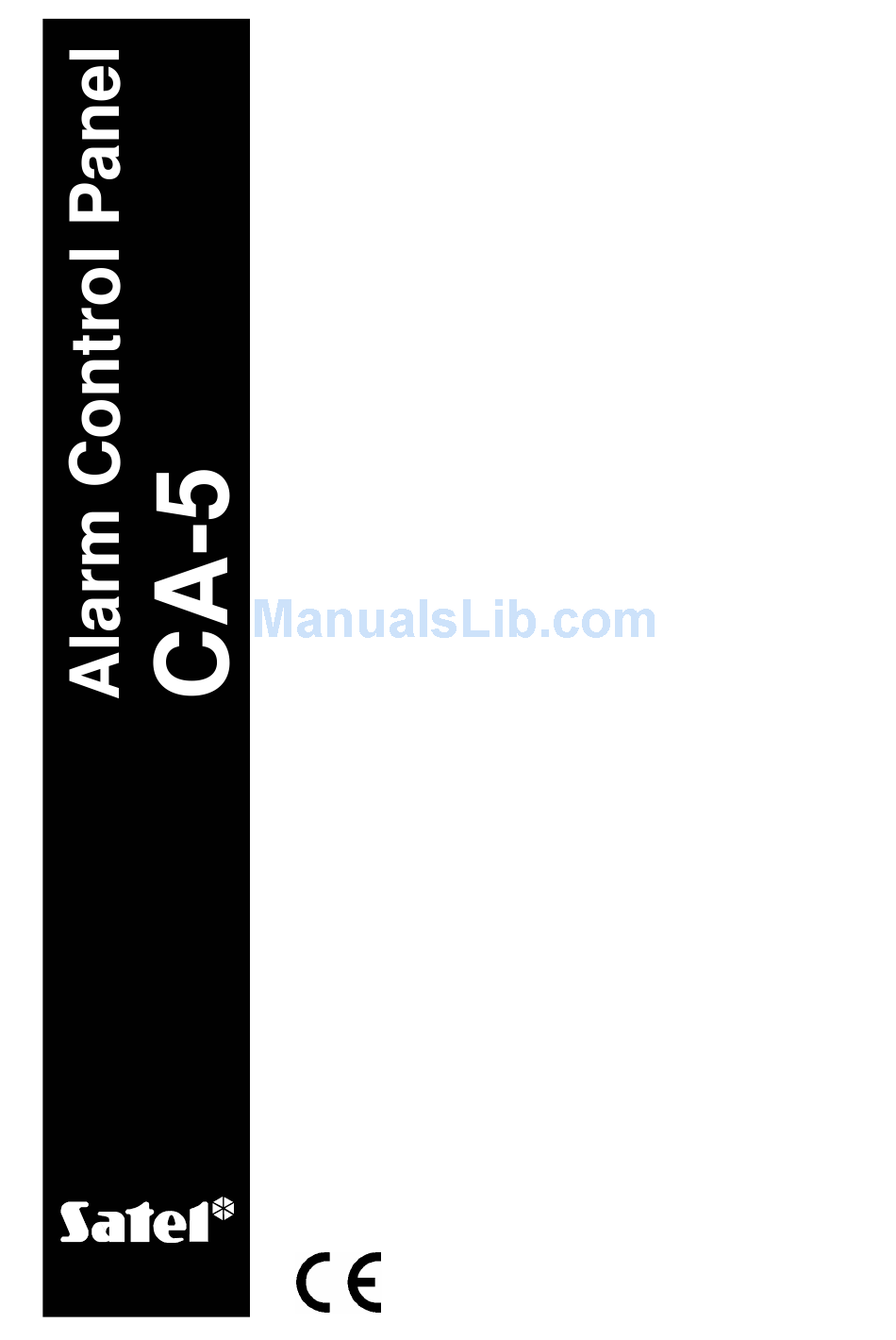

Page 1: User Manual
USER MANUAL GDAŃSK POLAND ca5u_e 06/04... - Page 2 Directives 91/157/EEC and 93/86/EEC). Latest EC declaration of conformity and product approval certificates can be downloaded from our Web site www.satel.pl Definitions of some technical terms as used in this manual: • Service mode – the control panel condition which permits calling of the service functions and programming of the security system parameters.
-
Page 3: Table Of Contents
CONTENTS TECHNICAL RELIABILITY OF THE SECURITY SYSTEM ..........2 ALARM SYSTEM OPERATING COSTS ................2 GENERAL FEATURES....................... 2 OPERATION ........................3 LED Functions ..........................4 Status of Control Panel Armed Zones ...................5 Conditions Signaled Acoustically in the Keypad ................5 Events Signaled on the OUT1 Output ...................6 User Access Codes........................6 Armed Mode of the Control Panel ....................6 FULL ARMED MODE ............................6... -
Page 4: Technical Reliability Of The Security System
GENERAL FEATURES The CA-5 alarm control panel is an advanced, microprocessor base device designed for burglary and assault alarm systems. It is characterized by a simplicity of operation, legibility of information for the user, and a high operational reliability. It has been fitted with a telephone communicator (dialer) which enables the security system to operate together with a monitoring station. -
Page 5: Operation
CA-5 SATEL OPERATION This manual contains description of operating the CA-5 alarm control panel by means of the LED-M keypad. Basic operation of the security system comes down to arming and disarming the system (supervision), and to adequate reaction to the information the control panel may signal on the keypad. -
Page 6: Led Functions

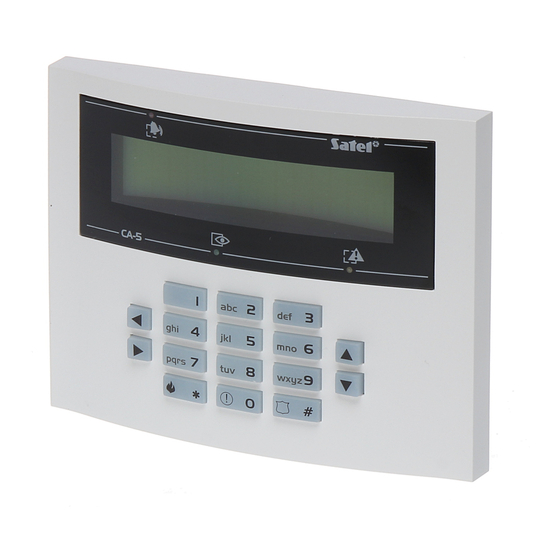

9 Figure 2. CA-5 LCD keypad There are available two version of LCD keypads (CA-5 KLCD-L and CA-5 KLCD-S) that differ in the dimension and the size of display. The keypad and the display backlight illumination can be permanent or switched on automatically by pressing a key, or, alternatively, by violation of any control panel zone when armed –... -
Page 7: Status Of Control Panel Armed Zones
CA-5 SATEL − off - no mains power • TROUBLE (yellow) – blinks when the control panel detects a technical problem or a monitoring problem. • PROGRAM (red) – indicates the control panel operation in programming mode: − on – service mode (additionally, a short beep every 3 seconds) – pressing successively the [0][#] keys will cause return to the normal operation mode −... -
Page 8: Events Signaled On The Out1 Output
The service code provides access to some of the user functions (besides creating and deleting the users, and arming or disarming the system). Armed Mode of the Control Panel In order to adjust the security system to various situations, the CA-5 control panel offers several armed modes: FULL ARMED MODE... -
Page 9: Partial Armed Mode With No Exit From The Site
CA-5 SATEL PARTIAL ARMED MODE WITH NO EXIT FROM THE SITE The supervision mode with automatic bypassing of the zones (detectors) assigned by the installer. If, after arming the system, the user has not left the site and has not violated the... -
Page 10: Disarming And Alarm Clearing [Code][#]
User Manual • the function is disabled by the installer – this situation will be signaled with two long beeps. Disarming and Alarm Clearing [CODE][#] If the panel is armed (the ARMED LED is on or blinking) and/or it signals an alarm (the ALARM LED is on or blinking), entering the user access code and confirming it with the [#] or [ ] key will disarm the system and/or clear the alarm. -
Page 11: Alarm Memory Review [5]
CA-5 SATEL alarm ALARM CONTROL PANEL CA-5 LCD 04.07 14:01 zo.5 Tamper alarm armed trouble Event description - example. Figure 2. An event description contains: date - day and month time of event - hour and minutes source code (if possible) - kpd. -
Page 12: Current Trouble Check-Out [7]
User Manual On depressing and holding down the key (until you hear a single beep), the PROGRAM LED will start blinking, and the LEDs from 1 to 5 will indicate the type of trouble according to the list contained in the description of the CURRENT TROUBLE CHECK-OUT function. The list of detectable troubles consists of two sets of five items each. -
Page 13: Switching The Chime On/Off [8]
CA-5 SATEL Power supply outputs trouble - information on the installation fault (F3 fuse), requires intervention of the service personnel (it can be only displayed during the memory trouble review). Clock loss - occurs on disconnecting the power supply and restarting the control panel; the clock and date should be set with the user function 6. -
Page 14: User Functions Accessible With Access Code
LCD keypad The panel confirms entering the user functions mode with three short beeps and displays the two first names out of the currently accessible user functions. alarm ALARM CONTROL PANEL CA-5 LCD 1.Change code 2.Add user cursor of function... -
Page 15: [Code][ * ][1][#]
] - calling the "user function" mode, confirmed with three short beeps and in the LED keypad additionally slow blinking of the PROGRAM LED, [1] [#] - calling the "change code" function, alarm ALARM CONTROL PANEL CA-5 LCD confirmed with two short beeps and in 1.Change code: keypad... -
Page 16: [Code][ * ][3][#]
[3][5] - indicating numbers deleted alarm ALARM CONTROL PANEL CA-5 LCD access codes – confirmed in the LED keypad extinguishing of the LEDs with Users to leave: 2 . 4 . numbers 3 and 5 (the LEDs 2 and 4 are... -
Page 17: [Code][ * ][5][#]
[3][4] - selecting the numbers of zones to be alarm ALARM CONTROL PANEL CA-5 LCD bypassed – in the LED keypad the LEDs Zones to bypass: 3 and 4 will light up, in the LCD keypad .. -
Page 18: [Code][ * ][6][#]
The history of events may be downloaded by means of the LCD keypad or the computer and its program managing the CA-5 alarm control panel. The programming procedure is as follows:... - Page 19 CA-5 SATEL Digits are presented in the binary code according to the table: LED INDICATIONS LED No. DIGIT - LED off - LED on EXAMPLE: checking the time and date of the panel clock (user access code = 1230) - next to the keys are shown examples of LED indications.
-
Page 20: Mono Outputs [Code][ * ][7][#]
User Manual MONO outputs [CODE][ * ][7][#] The purpose of the function is determined by the installer. It can, for instance, activate electromagnetic locks, bells, signaling lamps or any other devices. The function is available when the „MONO switch” type has been selected for one of the outputs. Using this function switches on the output for a time specified by the installer. -
Page 21: Events
CA-5 SATEL also can be effected by the installer in local mode using the corresponding service function. The meaning of audible signals generated on activating the function: three long beeps mean that the line is engaged by monitoring – wait and then... - Page 22 LEDs 1÷5 (zones state) ARMED on - zone violated – partition armed, off - zone OK blinking – exit time in progress blinking fast - zone alarm memory on with short extinguishing every 2 sec. - zone tamper violated flashing every 2 sec. - zone tamper alarm memory PROGRAM –...
- Page 23 – indicates detection of technical [5] - pressing for 3 sec. trouble in system - to alarm ALARM CONTROL PANEL CA-5 LCD activates alarm check press key [7] for 8 Jul, 13:26:41 memory viewing 3 sec..
- Page 24 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND Tel. +48 58 320 94 00 info@satel.pl www.satel.pl...
