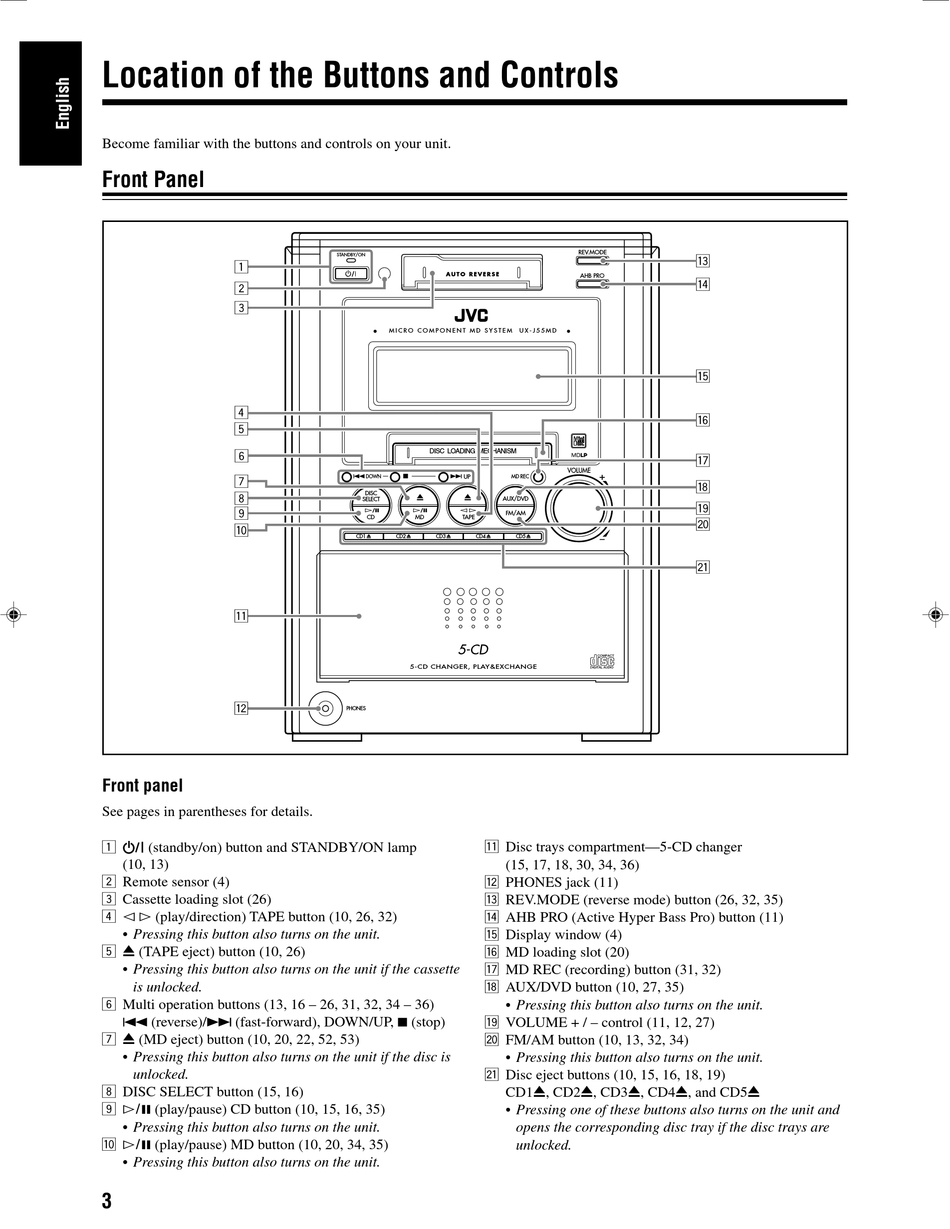

Location of the Buttons and Controls

Become familiar with the buttons and controls on your unit.

Front Panel

1
2
3
4
5
6
7
8
9
p
q
w
Front panel
See pages in parentheses for details.
1
(standby/on) button and STANDBY/ON lamp
(10, 13)
2 Remote sensor (4)
3 Cassette loading slot (26)
4 @ # (play/direction) TAPE button (10, 26, 32)
• Pressing this button also turns on the unit.
5 0 (TAPE eject) button (10, 26)
• Pressing this button also turns on the unit if the cassette
is unlocked.
6 Multi operation buttons (13, 16 – 26, 31, 32, 34 – 36)
4 (reverse)/¢ (fast-forward), DOWN/UP, 7 (stop)
7 0 (MD eject) button (10, 20, 22, 52, 53)
• Pressing this button also turns on the unit if the disc is
unlocked.
8 DISC SELECT button (15, 16)
9 #¥8 (play/pause) CD button (10, 15, 16, 35)
• Pressing this button also turns on the unit.
p #¥8 (play/pause) MD button (10, 20, 34, 35)
• Pressing this button also turns on the unit.
3
STANDBY/ON
A U T O R E V E R S E
M I C R O C O M P O N E N T M D S Y S T E M
DISC LOADING MECHANISM
7
4 ¢
DOWN UP
DISC
0 0
SELECT
‹ 8 ‹ 8 ¤ ‹
/ /
CD MD TAPE
CD1 0 CD2 0 CD3 0 CD4 0
5-CD
5-CD CHANGER, PLAY&EXCHANGE
PHONES
q Disc trays compartment—5-CD changer
w PHONES jack (11)
e REV.MODE (reverse mode) button (26, 32, 35)
r AHB PRO (Active Hyper Bass Pro) button (11)
t Display window (4)
y MD loading slot (20)
u MD REC (recording) button (31, 32)
i AUX/DVD button (10, 27, 35)
o VOLUME + / – control (11, 12, 27)
; FM/AM button (10, 13, 32, 34)
a Disc eject buttons (10, 15, 16, 18, 19)
REV.MODE
AHB PRO
U X - J 5 5 M D
VOLUME
+
MD REC
AUX/DVD
FM/AM
CD5 0
–
(15, 17, 18, 30, 34, 36)
• Pressing this button also turns on the unit.
• Pressing this button also turns on the unit.
CD10, CD20, CD30, CD40, and CD50
• Pressing one of these buttons also turns on the unit and
opens the corresponding disc tray if the disc trays are
unlocked.
e
r
t
y
u
i
o
;
a
