AM antenna
1
2
Vinyl-covered wire
(not supplied)
3

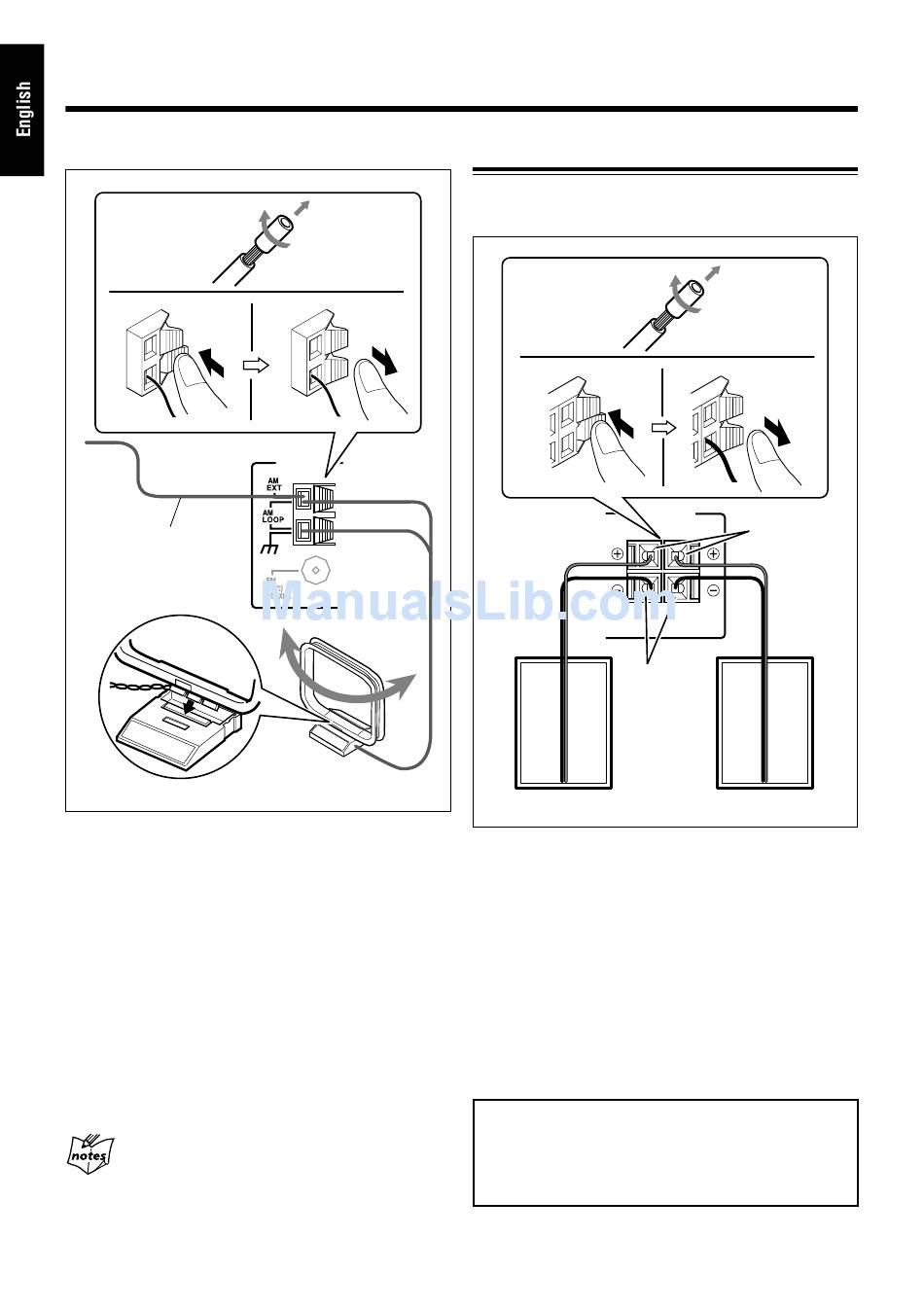

1 If the cords are covered with insulation, remove
a short section of insulation at the end of each
cord by twisting and pulling it off.
2 Connect the AM loop antenna to the AM
LOOP terminals as illustrated.
3 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. The AM
loop antenna must remain connected.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other terminals or
connecting cords.
• Keep the antennas away from metallic parts of the unit, connecting cords,
and the AC power cord.
7
ANTENNA
AM loop antenna
(supplied)

Connecting Speakers

To connect speakers
You can connect the speakers using the speaker cords.
1
2
SPEAKERS
RIGHT
Speaker
cord
Black
Right speaker
1 If the cords are covered with insulation, remove
a short section of insulation at the end of each
cord by twisting and pulling it off.
2 Hold the clamp of the speaker terminal.
3 Insert the end of the speaker cord into the
terminal.
Match the polarity of the speaker terminals: Red cord to red
terminal ª and black cord to black terminal ·.
4 Release your finger from the clamp.
IMPORTANT:
• Use only speakers with the same speaker impedance as
indicated by the speaker terminals on the rear of the unit.
• DO NOT connect more than one speaker to one speaker
terminal.
3,4
Red
LEFT
Speaker
cord
SPEAKER
IMPEDANCE
4Ω ~ 16Ω
Left speaker
