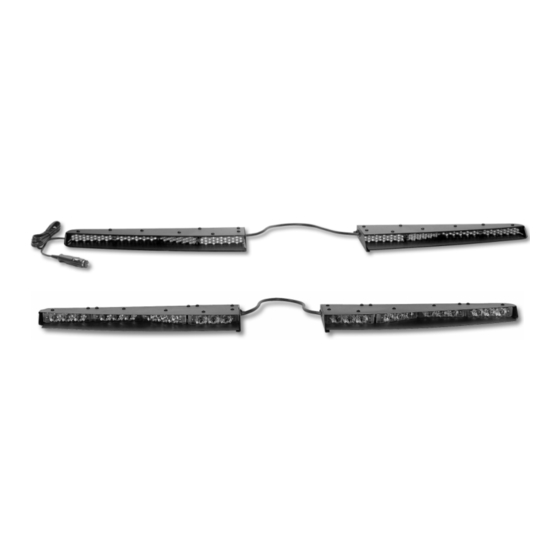

- Page 1 INSTALLATION AND INSTRUCTION MANUAL The Split Phantom The Split Phantom ™ Undercover Interior LED Lightbar Models ULB21 ULB24 (Discrete) (Gen 4 Starburst) IMPORTANT: Please read all of the following instructions before installing your new warning light. PLIT390 REV. C 3/19/10...
- Page 2 Star Headlight & Lantern Co., Inc. assumes no responsibility for the integrity of the installation for this or any of its products. The Split Phantom ™ uses state-of-the-art Light Emitting Diode (LED) technology.
-
Page 3: Optional Mounting Brackets
Optional Mounting Brackets There are six (6) optional mounting brackets that can be used to mount your Split Phantom Half Phantom ™ or ™. Your light comes with the one that was selected at the time the light was ordered. Please review the diagram below that shows the parts included with each kit. -
Page 4: Mounting Instructions
It is the sole responsibility of the owner to ensure the light is secure. Split Phantom™ is designed to be mounted on the inside of your vehicle. It is not intended for exterior applications and is not warranted against water damage. -
Page 5: Universal Bracket Installation
The mounting instructions are divided into two separate sections. If you are using the Universal Mount, proceed below. If you will be using one of the vehicle specific brackets, please skip to page 9. UNIVERSAL BRACKET INSTALLATION (Model 274-ULB21-U1) SUCTION CUP WINDOW ADHESIVE MOUNT •... - Page 6 Universal Mounting (CONT'D) Attach Forked Brackets to Light 1. Insert one of the carriage bolts through one of the washers. Please note that washer is used as a spacer on the square neck of the carriage bolt. Slide the bolt and washer through the back of the left bracket.
- Page 7 Universal Mounting (CONT'D) Attach Forked Brackets to Visor Clips (If you do not have visor clips, or your visor clips will NOT provide a secure mount, or this method will not work in your vehicle for any other reason, use the alternate method on the next page.) 1.
- Page 8 Universal Mounting (CONT'D) Attach Forked Brackets using Alternate Method If you are not using the visor clip installation described on the previous page, continue below. 1. Some vehicles may not have visor clips appropriate for the previously described installation, or may completely lack any visor clips. An alternate mounting screw hole is provided in the bracket for these situations.
- Page 9 Universal Mounting (CONT'D) Attach The Suction Cups or Window Adhesive Mounts 1. Remove the two #4 x 1/4" Phillips pan head screws on either end of the bar, along with the washers and nylon spacers. Remove outermost screws from bottom of unit. (Bottom View) 2.
- Page 10 VEHICLE SPECIFIC BRACKET INSTALLATION (Models 274-ULB21-CH, 274-ULB21-CV, 274-ULB21-EX, 274-ULB21-IM, and 274-ULB21-TA) 1. Remove both visor clips from the vehicle. 2. Loosen (LOOSEN, DO NOT REMOVE!!) the three visor pivot arm screws on one side of the vehicle with appropriate screwdriver. (Passenger’s side shown) 3.
- Page 11 Vehicle Specific Mounting Brackets (CONT'D) 6. Tighten the screws on the visor arm to hold the visor bracket in place. (Passenger’s side shown) 7. Place the angled "L" bracket over the two studs on the visor bracket as shown to the right. Using two #8 washers and two acorn nuts, attach the “L”...
-
Page 12: Baffle Adjustment
Vehicle Specific Mounting Brackets (CONT'D) 10. With acorn nuts still slightly loose, slide the light as close to the front windshield as possible. Once it is touching the window, tighten the two acorn nuts that secure the two brackets together. 11. -
Page 13: Operating Instructions
3-Way Mode Switch is in. 3-Way Mode Switch set for Steady (Takedown) Mode: If the 3 -way mode switch of your Split Phantom™ is in the Steady Mode position, the Pattern Select/Burst Mode will “burst” your LEDs into a super-bright, high-power mode (takedowns). -
Page 14: Pattern List
Toggle Mode: Pressing and holding the pattern select button until the LED’s flash three times (approx. 9 seconds) will toggle the “steady side” for patterns 31 and 32. • The Split Phantom ™ will remember the pattern it was in when turned off and display the same pattern when re-activated. -13-... - Page 15 Once your Split Phantom is installed, please test all the patterns ™ and options to familiarize yourself with the various patterns and the operation of the buttons. If you have any questions concerning this or any other product, please contact our Customer Service Department at (585) 226-9787.
- Page 16 These lights use state-of-the-art Light Emitting Diode (LED) technology. These warning lights are comprised of ultra-high intensity LEDs that are controlled by a solid state flasher unit to efficiently produce light output with lifetimes up to 100,000 hours. Under normal circumstances, you will not need to replace any LEDs in this light.
