Star Mini Phantom
Interior Undercover Mini LED Light
(Lineum Dual Color LEDs)
IMPORTANT:
Please read all of the following instructions before installing your new light.
CAUTION: Please be sure to check that your cigarette plug outlet or hard wire is properly
fused with a 5 amp fuse. Testing the light before this fuse is properly
installed will void the warranty on the light.
PATENTS D530,029 and D632,421
ULB9LDC Series
™
PLIT530 REV. -
2/26/15
Advertisement
Related Manuals for Star Headlight & Lantern Star Mini Phantom ULB9LDC Series
Summary of Contents for Star Headlight & Lantern Star Mini Phantom ULB9LDC Series

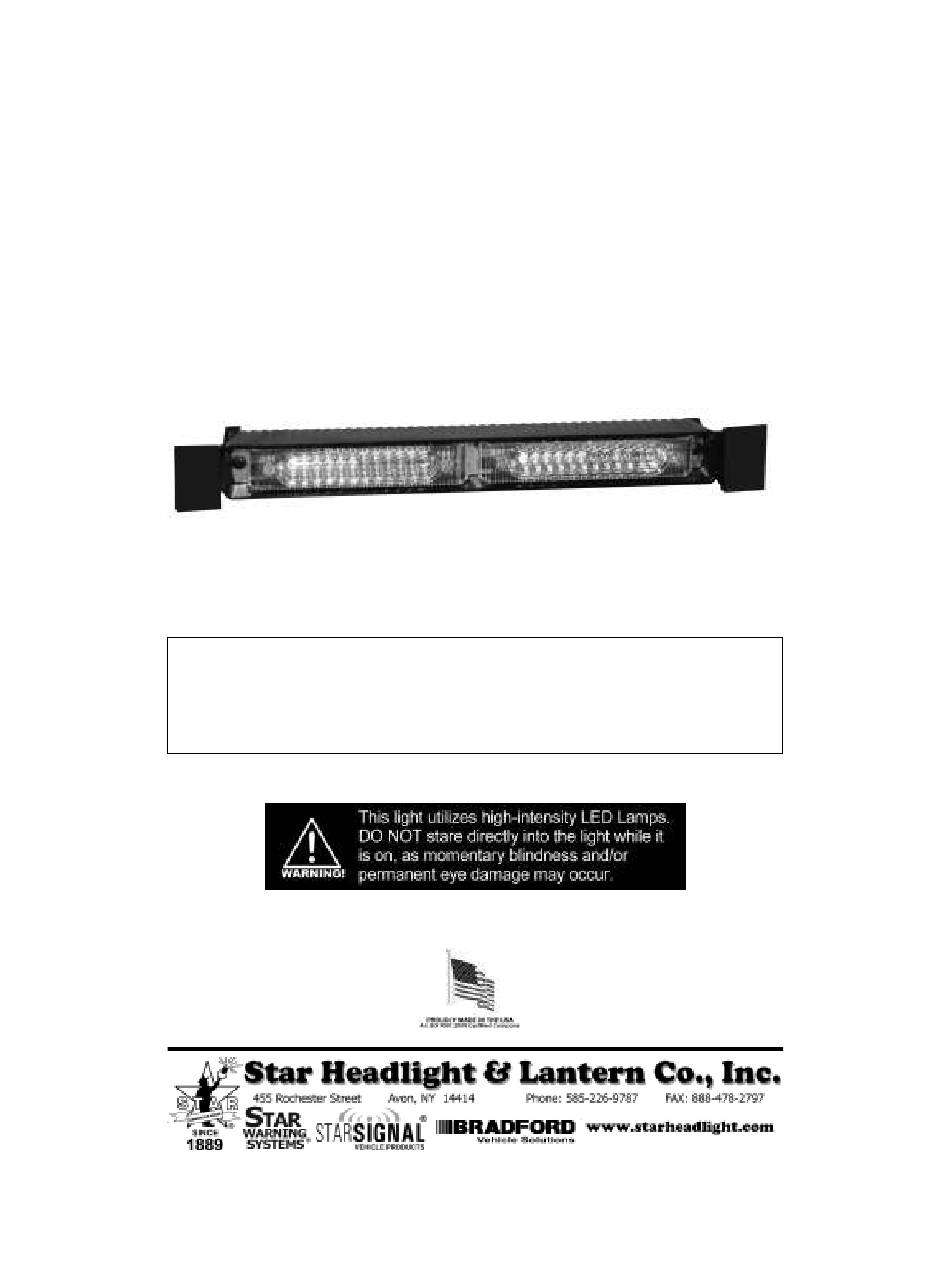

- Page 1 Star Mini Phantom ™ Interior Undercover Mini LED Light PATENTS D530,029 and D632,421 ULB9LDC Series (Lineum Dual Color LEDs) IMPORTANT: Please read all of the following instructions before installing your new light. CAUTION: Please be sure to check that your cigarette plug outlet or hard wire is properly fused with a 5 amp fuse.
- Page 2 This light is designed to be mounted on the inside of your vehicle. It is not intended for exterior applications and is not warranted against water damage. It is the sole responsibility of the owner to ensure the warning light is secure.
- Page 3 Mounting Front Windshield Adhesive Mount The hood can be installed such that the cord can exit either side. Route the cord through the appropriate slot and slide the hood onto the back of the light until the hooks on the hood “latch”...
- Page 4 (ULB9S Mounting CONT’D) Optional Reflective Hood Label Installation Practice installing label BEFORE removing backing. 1. Align the notch in the label with the center of the hood taking care that the front edge of the label lines up with the front edge of the hood. 2.
- Page 5 Optional Bracket Mounting (Deck, Mirror, or Suction Cup) 1. Decide which side you want the cord to exit the light and determine which way you will need to mount the ULB9-BKT to your light. 2. Attach Part A of the mounting bracket, facing the direction you have selected, to the light by using two of the Philips head screws.
-
Page 6: Connections And Operation
Connections and Operation ULB9LDC (cig plug version only) The ULB9LDC (cig plug version) can be left plugged into the outlet in your vehicle. Either function (color) can be turned on and off using the lighted power switches on the cord. Power 2 will override Power 1 if both are activated. - Page 7 PATTERNS The ULB9LDC Series lights are designed with 12 different patterns in one of two phases. The second phase is identical to the first, but flashes opposite from the first. It will only be noticeable when synchronizing two of the ULB9E-1 lights (hardwire versions only). Phase 1 Phase 2 Pattern...
- Page 8 LED FIVE YEAR LIMITED WARRANTY The manufacturer warrants this LED light against factory defects in material and workmanship for five years after the date of purchase. The owner will be responsible for returning to the Service Center any defective item(s) with the transportation costs prepaid. The manufacturer will, without charge, repair or replace at its option, products, or part(s), which its inspection determines to be defective.
