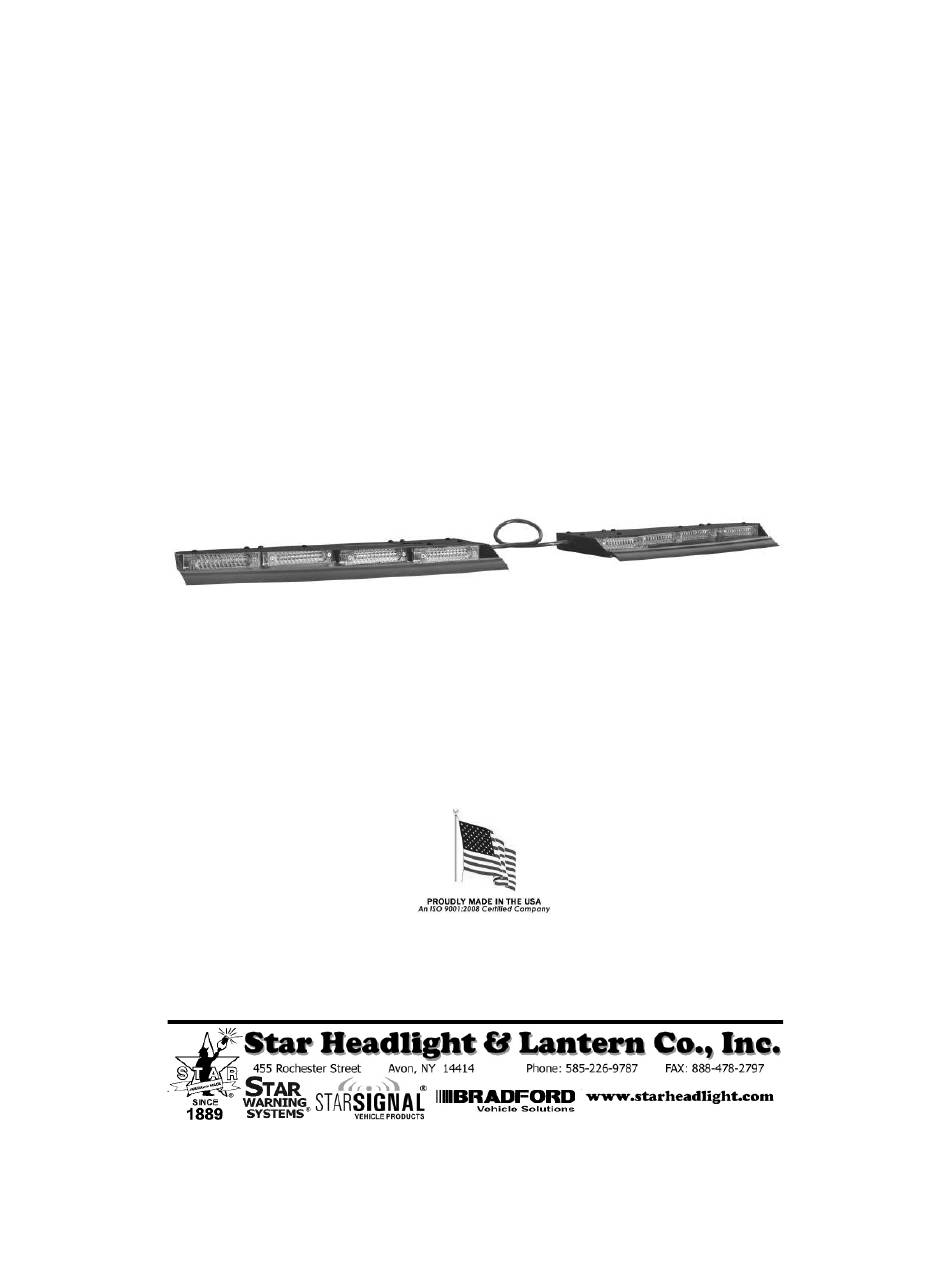

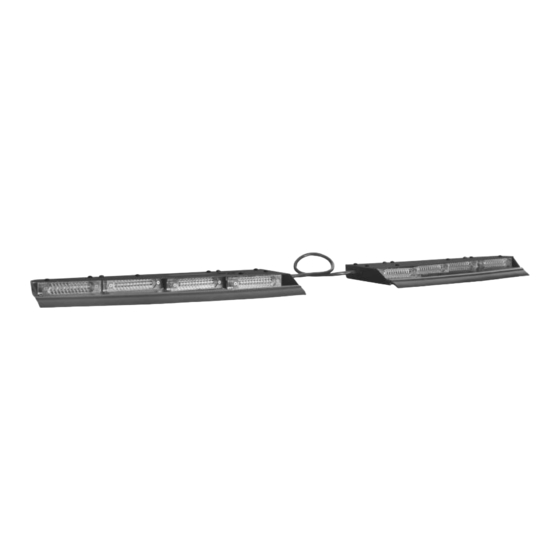

- Page 1 Lineum Star Split Phantom ® Model ULB28 Model ULB28 Model ULB28 Model ULB28 Dual Color Undercover Interior LED Lightbar PLIT507 REV. B 2/19/16...
- Page 2 IMPORTANT: Please read all of the following instructions before installing your new warning light. Please Note: These instructions are provided as a general guideline only. Specific mounting and/or wiring, may be necessary and are the sole responsibility of the installer. Star Headlight &...
-
Page 3: Gasket Installation
Gasket Installation 1. Before installing any of the brackets, slide the enclosed rubber channel over the front edge of the baffle. 2. Install the gasket such that it curves upward as pictured to the right. GASKET CURVED UP Mounting There are several optional mounting brackets that can be used to mount your Split Phantom ™. -
Page 4: Baffle Adjustment
Baffle Adjustment 1. After the light has been mounted (see separate mounting instructions), if adjustments permit, slide the light forward until the top of it is touching the windshield. 2. Loosen the baffle screws and carefully slide the baffle forward until the gasket is forced slightly downward by the pressure of the windshield. -
Page 5: Quick Wiring Guide
Wiring For proper installation and full operability, this light requires a 20A ignition switched power source, connections to the negative terminal of the battery, and 4-6 external switches rated for a minimum 1A (user supplied). These lights come with a pre-installed 8-conductor harness. In addition, the cable also contains a bare drain wire and foil shielding. - Page 6 Programming Programming is optional. If the default settings are acceptable, skip to the Operation section. If you will be changing any of the options on your lightbar, this should be done prior to installation. Programmable features include the following: • Traffic Director or Takedown Mode •...
-
Page 7: Pattern Programming
Programming (CONT'D) Pattern Programming Not only does this light have several Patterns to select from, but it also incorporates advanced programming that allows you to select which heads flash On and Off with one another (Phase), and which heads are active in any of the functions (Head Enable). Basic Pattern Selection The first step in programming is to select a basic pattern for each function: •... - Page 8 Programming (CONT'D) Phase Selection (Programmable for Patterns 1-16 only) Each flashing head has two Phases, an “On” phase and an “Off” phase. You can program each head for either Phase, allowing you to customize which heads flash On together and which are Off together. This can be done for your Communication Level 1, Level 2, and Pursuit functions.
- Page 9 Programming (CONT'D) Program Mode (Cloning) If you are installing multiple lights and have a number of options to set, you may find it easier to set up one light, then “clone” its settings onto the other lights. To do so, proceed as follows: Communication Port...
- Page 10 Operating Instructions Functions Switched Through Wires Main control of this light is done though the wires in the harness. They should be connected to +12VDC through several switches (user supplied) as described in the Wiring section. Priority 1 Flashing Mode (Orange w/Green) This is usually intended as a slower, less urgent mode typically used...
- Page 11 These lights use state-of-the-art Light Emitting Diode (LED) technology. These warning lights are comprised of ultra-high intensity LEDs that are controlled by a solid state flasher unit to efficiently produce light output with lifetimes up to 100,000 hours. Under normal circumstances, you will not need to replace any LEDs in this light.
- Page 12 NOTICE Due to continuous product improvements, we reserve the right to change any specifications and/ or information contained in this manual at any time without notice. Star Headlight & Lantern Co., Inc. makes no warranty of any kind with regards to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
