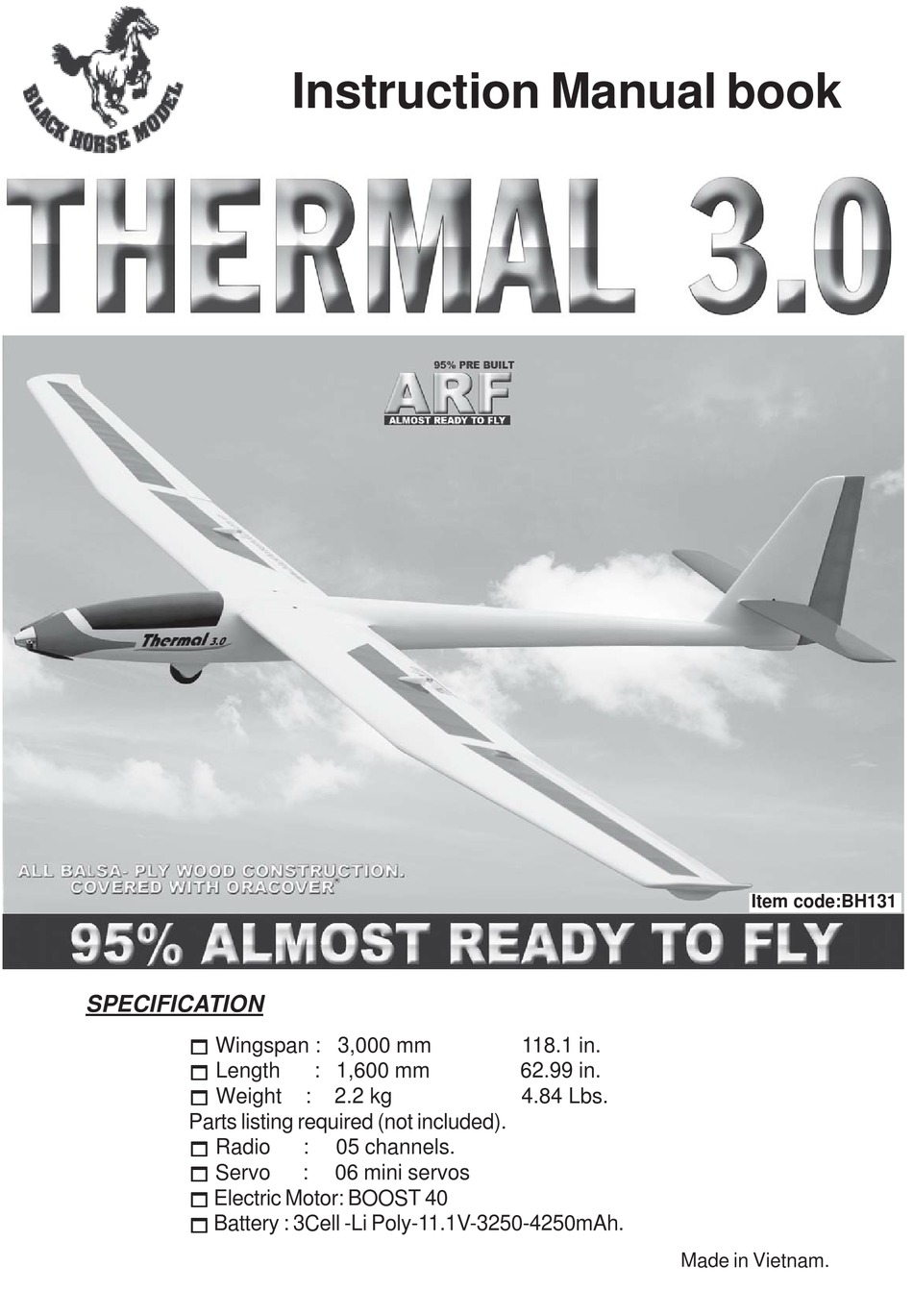

SPECIFICATION
     Wingspan : 3,000 mm
     Length
     Weight
Parts listing required (not included).
     Radio
     Servo
     Electric Motor: BOOST 40
     Battery : 3Cell -Li Poly-11.1V-3250-4250mAh.
Instruction Manual book
: 1,600 mm
:
2.2 kg
:
05 channels.
:
06 mini servos
118.1 in.
62.99 in.
4.84 Lbs.
Made in Vietnam.
Item code:BH131
