SPECIFICATION
     Wingspan : 3,000 mm
     Length
     Weight
     Radio
     Servo
     Electric Motor: BOOST 40
     Battery : 3celI - LiPo-11.1V-3250-4250mAh
Instruction Manual book
: 1,600 mm
:
2.2 kg
:
05 channels.
:
06 servos.
1 18.1 in.
62.99 in.
4.84 Lbs.
Made in Vietnam.
Item code:BH131

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermal 3.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Thermal 3.0

Summary of Contents for Black Horse Model Thermal 3.0

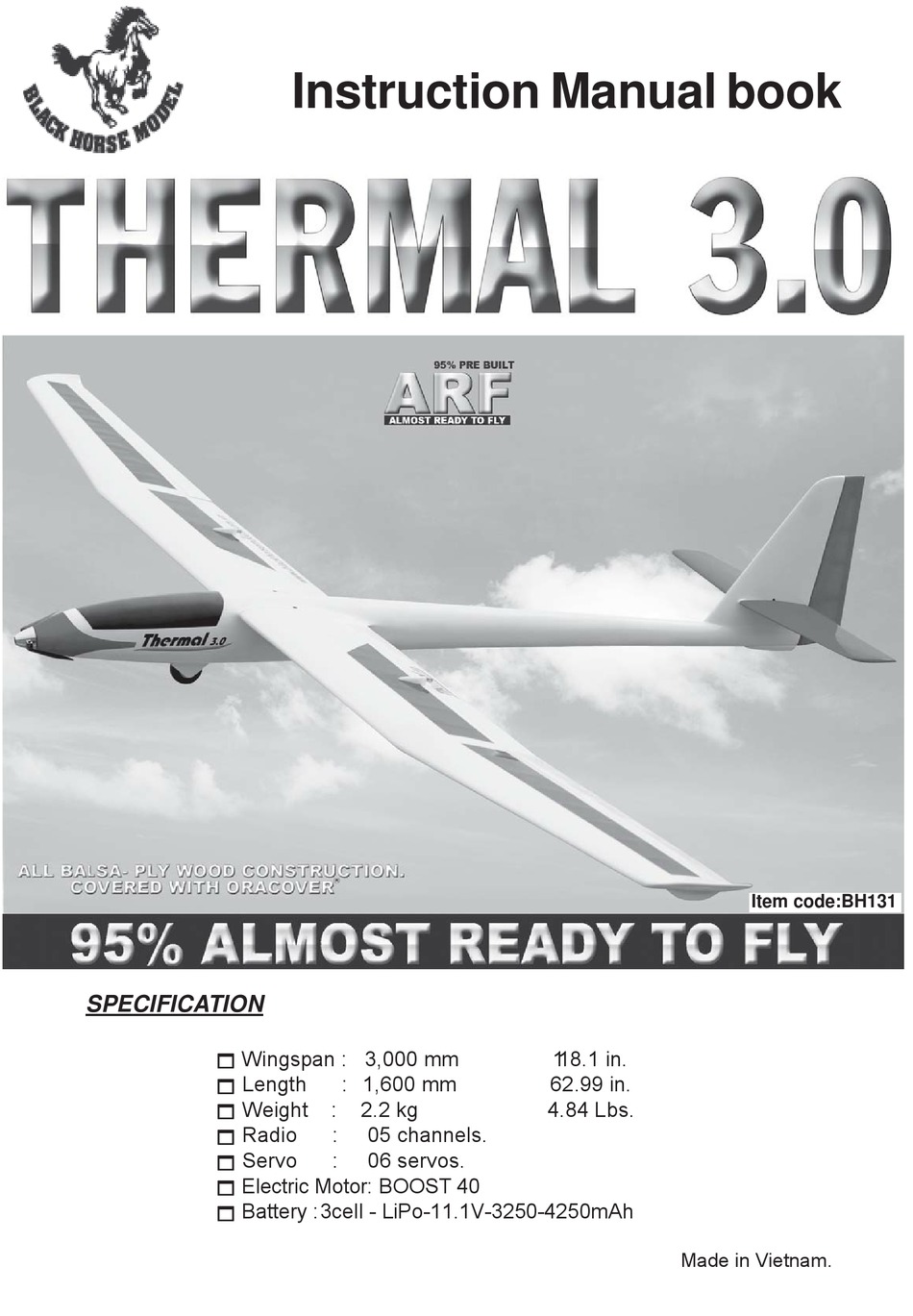

  • Page 1 Instruction Manual book Item code:BH131 SPECIFICATION      Wingspan : 3,000 mm 1 18.1 in.      Length : 1,600 mm 62.99 in.      Weight 2.2 kg 4.84 Lbs.      Radio 05 channels.
