SPECIFICATION
Wingspan :
Length
Weight
Radio
Servo
Engine
Instruction Manual book
1,650mm
:
1,460mm
:
3.8kg
:
05 channels.
:
05 servos.
:
75
2 stroke
91
4 stroke
64.96 in.
57.48 in.
8.38 Lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extra 330L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Black Horse Model Extra 330L

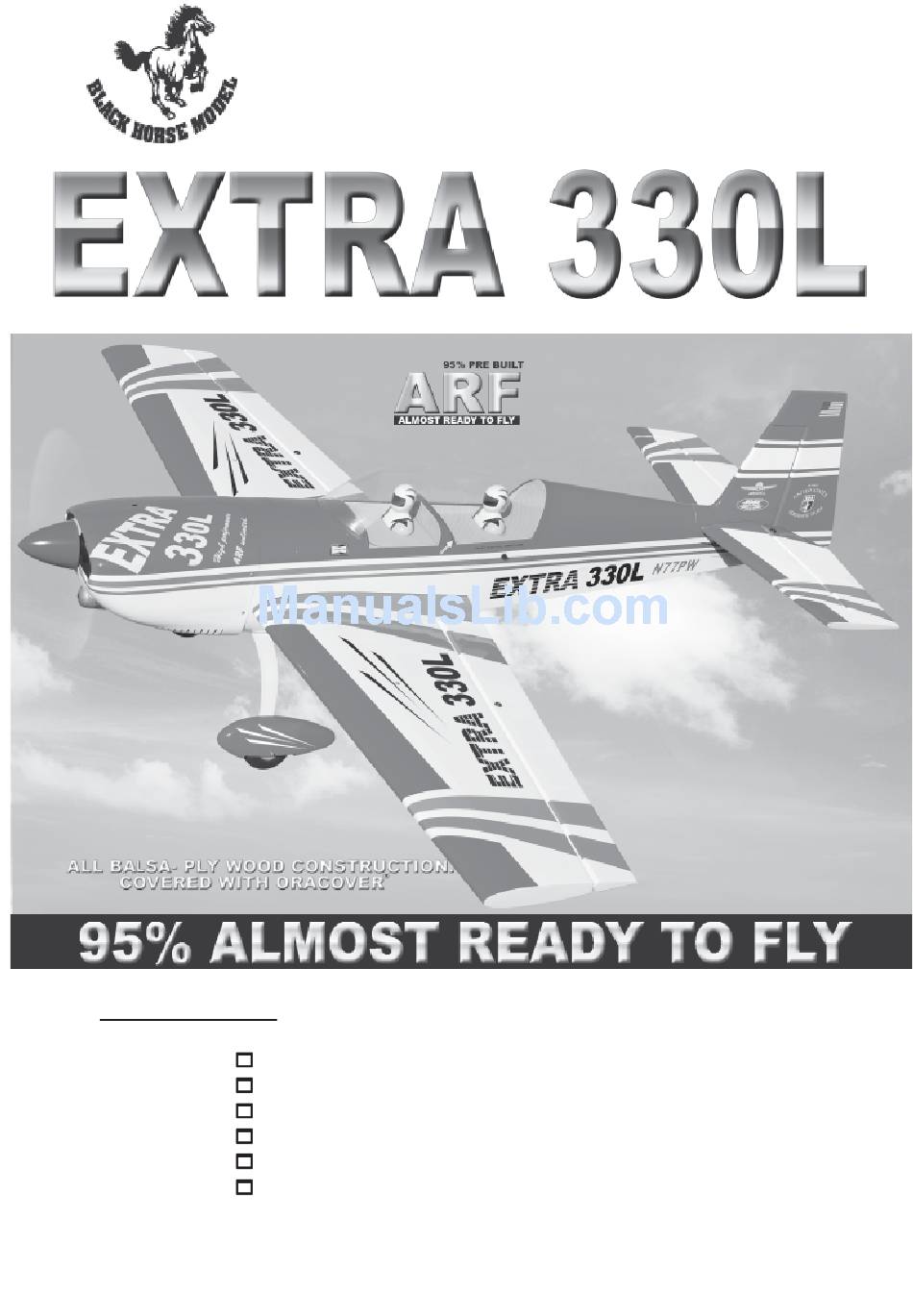

  • Page 1 Instruction Manual book SPECIFICATION Wingspan : 1,650mm 64.96 in. Length 1,460mm 57.48 in. Weight 3.8kg 8.38 Lbs. Radio 05 channels. Servo 05 servos. Engine 2 stroke 4 stroke Made in Vietnam.
  • Page 2 EXTRA 330L Instruction Manual This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your EXTRA 330L Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.
  • Page 3: Safety Precaution

    EXTRA 330L. INSTRUCTION MANUAL Caution: this model is not a toy! SAFETY PRECAUTION. If you are a beginner to this type of powered + This is not a toy model, please ask an experienced model flyer + Be sure that no other flyers are using your for help and support.
  • Page 4: Installing The Aileron Servos

    EXTRA 330L Instruction Manual INSTALLING THE AILERON SERVOS. 1. Install the rubber grommets and brass eyelets onto the aileron servo. C/A glue C/A glue C/A glue 2. Using a modeling knife, remove the cov- ering servo tray. Remove covering C/A glue...
  • Page 5 EXTRA 330L. INSTRUCTION MANUAL INSTALLING THE AILERON CONTROL HORN. 3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.
  • Page 6: Installing The Aileron Linkages

    EXTRA 330L Instruction Manual Remove covering Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. M3 lock nut...
  • Page 7: Installing The Engine Mount

    EXTRA 330L. INSTRUCTION MANUAL C/A glue Repeat the procedure for the other wing half. INSTALLING THE ENGINE MOUNT. See pictures below: Drill a hole 4mm diameter 4x30mm 4x30mm ENGINE MOUNT.
  • Page 8 EXTRA 330L Instruction Manual FUEL TANK. INSTALLING THE STOPPER ASSEMBLY 5. Test fit the stopper assembly into the tank. It may be necessary to remove some of Fuel pick- up tube Vent tube the flashing around the tank opening using a modeling knife.
  • Page 9: Installing The Engine

    EXTRA 330L. INSTRUCTION MANUAL INSTALLING THE ENGINE. Locate the long piece of wire used for the throttle pushrod. One end of the wire has been pre-bend in to a “Z” bend at the factory. This “Z” bend should be inserted into the throttle...
  • Page 10 EXTRA 330L Instruction Manual Pushrod wire Pushrod wire Right side 4 x 30mm Secure Left side...
  • Page 11 EXTRA 330L. INSTRUCTION MANUAL 2. While keeping the back edge of the COWLING. cowl flush with the marks, align the front of the cowl with the crankshaft of the engine. The 1. Slide the fiberglass cowl over the en- front of the cowl should be positioned so the...
  • Page 12: Installing The Spinner

    EXTRA 330L Instruction Manual Secure INSTALLING THE SPINNER. INSTALLING THE THROTTLE PUSHROD. 1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo 3mm x 15mm arm using a 2mm drill bit to accommodate the servo connector.
  • Page 13: Horizontal Stabilizer

    EXTRA 330L. INSTRUCTION MANUAL Secure HORIZONTAL STABILIZER. Top side Throttle servo ELEVATOR INSTALLATION. 1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray. 2. Mount the servo to the tray using the mounting screws provided with your radio sys- tem.
  • Page 14 EXTRA 330L Instruction Manual 2. Draw a center line onto the horizontal stabilizer. Then slide the horizontal into the fu- selage. C/A glue center line C/A glue 3. Mark the shape of the vertical on the left and right sides onto the horizontal stabilizer...
  • Page 15 EXTRA 330L. INSTRUCTION MANUAL Epoxy glue Remove covering 6. After the epoxy has fully cured, re- move the masking tape or T-pins used to hold the stabilizer in place and carefully inspect the glue joints. Use more epoxy to fill in any...
  • Page 16: Elevator Control Horn Installa- Tion

    EXTRA 330L Instruction Manual ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 50mm. M3 lock nut. Nilon control clasp. Elevator control horn Remove covering ELEVATOR PUSHROD INSTALLATION.
  • Page 17 EXTRA 330L. INSTRUCTION MANUAL Elevator Elevator pushrod pushrod Secure Bottom side Bend and cut after Top side Secure...
  • Page 18: Vertical Installation

    EXTRA 330L Instruction Manual Elevator pushrod C/A glue Elevator servo VERTICAL INSTALLATION. C/A glue Vertical stabilizer installation See picture below. Hinge. 1. Using a modeling knife cut away the covering from the end of fuselage for the rud- der hinge.
  • Page 19 EXTRA 330L. INSTRUCTION MANUAL 2. Put the rudder into the fuselage as same as picture below. Remove covering 3. Mark the shape of the vertical on the left and right side of the rudder on to the hori- zontal stabilizer using a felt-tip pen.
  • Page 20: Rudder Pushrod Installation

    EXTRA 330L Instruction Manual RUDDER PUSHROD INSTALLATION. 1. Rudder pushrod install as same as the way of aileron control horn. 2. Rudder push - pull system install as same as picture below. C/A glue M3 clevis ( 4pcs for push - pull system ).
  • Page 21 EXTRA 330L. INSTRUCTION MANUAL Rudder pushrod- pull cable C/A glue Rudder con- trol horn Rudder con- trol horn Rudder Rudder cable cable...
  • Page 22 EXTRA 330L Instruction Manual MAIN GEAR INSTALATION. PARTS REQUIRED 1) The blind nuts are already mounted in- side the fuselage. 2) The holes in the landing gear should be to accept the mounting bolts. Mark point 3) Using the hardware provided, mount the main landing gear to the fuselage.
  • Page 23: Mounting The Tail Wheel Bracket

    EXTRA 330L. INSTRUCTION MANUAL 3. Secure the tail wheel bracket in place using three 3mm x 12mm wood screws. Be careful not to overtighten the screws. Secure MOUNTING THE TAIL WHEEL BRACKET. 1. Set the tail wheel assembly in place on the plywood plate.
  • Page 24: Installing The Receiver And Battery

    EXTRA 330L Instruction Manual switch INSTALLING THE RECEIVER AND BATTERY. 1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make Battery plugging in the aileron servo lead easier when you are installing the wing .
  • Page 25: Wing Attachment

    EXTRA 330L. INSTRUCTION MANUAL Drill a hole 3mm diameter Receiver 3.5 x 30mm WING ATTACHMENT. Locate the aluminium wing dihedral Secure brace. *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits prop- erly.
  • Page 26 EXTRA 330L Instruction Manual Secure Secure WING ATTACHMENT. See picture wing attach to fuselage. Wing bolt. Right wing Installing the fuselage hatch as same as pic- ture below. Secure BALANCING. 1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.
  • Page 27: Control Throws

    4) Check the control surface. 5) Check the receiver antenna . It should be fully extended and not coiled up inside the fuselage. 6) Properly balance the propeller. We wish you many safe and enjoyable flights with your EXTRA 330L .
  • Page 28 EXTRA 330L Instruction Manual...
