Instruction Manual book

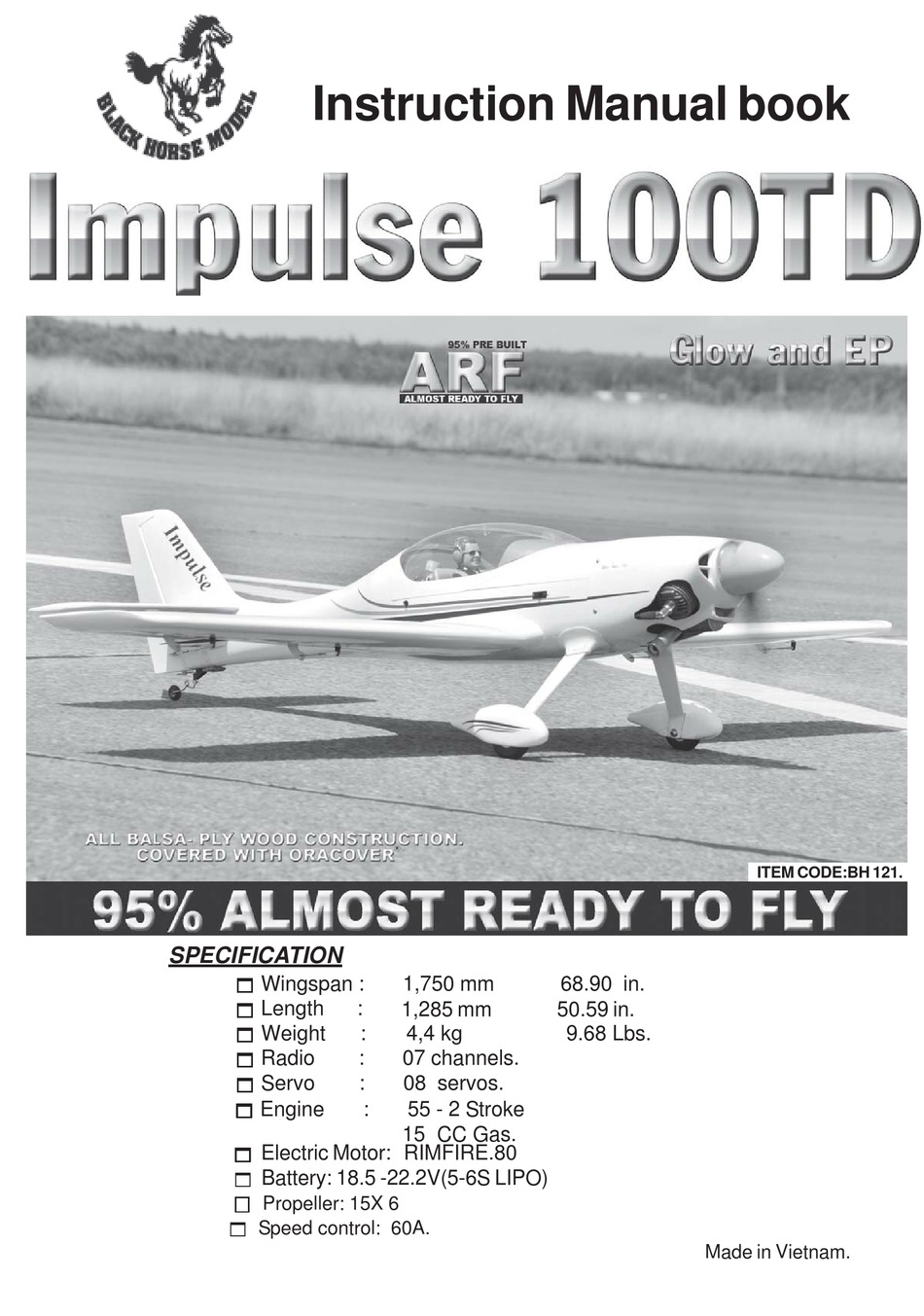

SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine


Electric Motor: RIMFIRE.80


 Battery: 18.5 -22.2V(5-6S LIPO)
 
Propeller: 15X 6

Speed control: 60A.
1,750 mm
:
1,285 mm
:
4,4 kg
:
07 channels.
:
08 servos.
:
55 - 2 Stroke
15 CC Gas.
68.90 in.
50.59 in.
9.68 Lbs.
Made in Vietnam.
ITEM CODE:BH 121.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Impulse 100TD and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse Model Impulse 100TD

Summary of Contents for Black Horse Model Impulse 100TD

  • Page 1 Instruction Manual book ITEM CODE:BH 121. SPECIFICATION      Wingspan : 1,750 mm 68.90 in.      Length 1,285 mm 50.59 in.      Weight 4,4 kg 9.68 Lbs.      Radio 07 channels.

  • Page 2: Parts List

    - Item code: BH 121 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your Impulse 100TD. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    Impulse 100TD Instruction Manual - Item code: BH 121 Wing warp: Hold the panel twisted Caution: this model is not a toy! gently in the opposite If you are a beginner to this type of powered direction to the warp, and...

  • Page 4: Installing The Aileron Servo

    Impulse 100TD Instruction Manual - Item code: BH 121 REPLACEMENT SMALL PARTS 1. Aluminium landing gear. 2. Wheel pants. Bottom side 3. Fuel Tank. 4. Engine mount ply of wood . 5. Tail gear set. 6. Plastic parts for landing gear.
  • Page 5 Impulse 100TD Instruction Manual - Item code: BH 121 C/A glue. C/A glue. C/A glue.   2. Using a modeling knife, remove the cov- ering servo tray. C/A glue. Servo tray. Remove covering C/A glue. C/A glue.
  • Page 6 Impulse 100TD Instruction Manual - Item code: BH 121  5. Instal servo tray with aileron servo into the wing as same as picture below.  3. Drill 1,5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo.

  • Page 7: Installing The Aileron Linkages

    Impulse 100TD Instruction Manual - Item code: BH 121 3.INSTALLING THE AILERON LINKAGES . Installing the aileron linkages as pictures below. 60mm Attach the clevis to the outer hole in the con- trol horn. A+B Epoxy PLUS II. FLAP A+B Epoxy 1.
  • Page 8 Impulse 100TD Instruction Manual - Item code: BH 121 A+B Epoxy PLUS 2x10mm. Secure. Control horn of the flap 3.INSTALLING THE FLAP LINKAGES. Installing the aileron linkages as pictures below. 60 mm Repeat the procedure for the other wing half.
  • Page 9 Impulse 100TD Instruction Manual - Item code: BH 121 Bottom side Aileron Flap Repeat the procedure for the other wing half. THERE ARE TWO OPTIONS: 1. ELECTRIC MOTOR 2. ENGINE MOUNT. OPTION 1: ELECTRIC MOTOR INSTALLING ELECTRIC MOTOR. Drill a hole...
  • Page 10 Impulse 100TD Instruction Manual - Item code: BH 121 Machine screw. Battery. C/A glue. Motor. 3 x 15mm Rotor sharft. Left side. Front view. Right side Front view. Secure.

  • Page 11: Installing The Engine Mount

    Impulse 100TD Instruction Manual - Item code: BH 121 OPTION 2: ENGINE MOUNT Secure. INSTALLING THE ENGINE MOUNT. See pictures below: 5x 70mm Front view. INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of...

  • Page 12: Installing The Stopper Assembly

    Impulse 100TD Instruction Manual - Item code: BH 121 Throttle - cable Throttle servo FUEL TANK. INSTALLING THE STOPPER ASSEMBLY  1) The stopper has been pre-assembled at the factory.  2) Using a modeling knife, cut one length Throttle - cable...
  • Page 13 Impulse 100TD Instruction Manual - Item code: BH 121 Secure Tygon gas tubing not included only use for gasoline silicon tube not included only use for glow fuel. Blow through one of the lines to ensure the fuel lines have not become kinked inside the fuel tank compartment.
  • Page 14 Impulse 100TD Instruction Manual - Item code: BH 121 Right side. Mark point 1. COWLING.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage.
  • Page 15 Impulse 100TD Instruction Manual - Item code: BH 121  2. While keeping the back edge of the Mark point 2. cowl flush with the marks, align the front of the cowl with the crankshaft of the engine. The front of the cowl should be positioned so the crankshaft is in nearly the middle of the cowl opening.

  • Page 16: Installing The Spinner

    Impulse 100TD Instruction Manual - Item code: BH 121 INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. 3 x 12mm Secure Secure. Front view...

  • Page 17: Installing The Elevator Servos

    Impulse 100TD Instruction Manual - Item code: BH 121 Secure. HORIZONTAL STABILIZER. Horizontal stabilizer installation  See picture below. INSTALLING THE ELEVATOR SERVOS.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.
  • Page 18 Impulse 100TD Instruction Manual - Item code: BH 121 C/A glue. C/A glue. C/A glue. C/A glue. Bottom side. C/A glue. 165 mm C/A glue. C/A glue.

  • Page 19: Elevator Control Horn Installa- Tion

    Impulse 100TD Instruction Manual - Item code: BH 121 ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pictures below. Control horn of Elevator. Epoxy glue. Epoxy glue. C/A glue.

  • Page 20: Elevator Pushrod Installation

    Impulse 100TD Instruction Manual - Item code: BH 121 VERTICAL STABILIZER INSTALLATION. ELEVATOR PUSHROD INSTALLATION. Rudder servo install as same as method of  Elevator pushrod install as same as the way elevator servo. See picture below: of aileron pushrod.

  • Page 21: Rudder Control Horn Installa- Tion

    Impulse 100TD Instruction Manual - Item code: BH 121  When you are sure that everything is a RUDDER CONTROL HORN INSTALLA- aligned correctly, mix up a generous amount TION. of 30 minute epoxy. Apply a thin layer to the...

  • Page 22: Mounting The Tail Wheel Bracket

    Impulse 100TD Instruction Manual - Item code: BH 121 C/A glue. Rudder pushrod. C/A glue. Plastic parts of elevator and Bottom side rudder pushrod. Elevator Elevator pushrod pushrod Rudder pushrod. MOUNTING THE TAIL WHEEL BRACKET.      1. Set the tail wheel assembly in place on the plywood plate.
  • Page 23 Impulse 100TD Instruction Manual - Item code: BH 121 R u d d e r pushrod. Elevator pushrod. Bottom side. MAIN GEAR INSTALATION. PARTS REQUIRED  1) Assemble and mounting the wheel pants as shown in the following pictures. Drill a hole 2mm diameter.

  • Page 24: Installing The Main Landing Gear

    Impulse 100TD Instruction Manual - Item code: BH 121 L a n d i n g gear. Plastic parts for landing gear . 5x 40mm Secure. 2) A drop of C/A glue on the wheel collar screws will help keep them from coming lose during operation.

  • Page 25: Installing The Switch

    Impulse 100TD Instruction Manual - Item code: BH 121 INSTALLING THE SWITCH.       1. Cut out the switch hole using a modeling knife. Use a 2mm drill bit and drill out the two Secure. mounting holes through the fuselage side.

  • Page 26: Wing Attachment

    Impulse 100TD Instruction Manual - Item code: BH 121 Do not permanently secure the receiver and battery until after balancing the model. Tie wrap. BATTERY. Left wing. Receiver. WING ATTACHMENT. Locate the aluminium wing dihedral brace. aluminium 19mm See picture wing attach to fuselage.
  • Page 27 Impulse 100TD Instruction Manual - Item code: BH 121 Top side. Secure. Top side. Insert and secure Left wing BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash.

  • Page 28: Control Throws

    Impulse 100TD Instruction Manual - Item code: BH 121 Lift the model. If the tail drops when you lift, the model is “tail heavy” and you must add weigh* to the nose. If the nose drops, it is “nose heavy” and you must add weight* to Ailerons Control the tail to balance.
