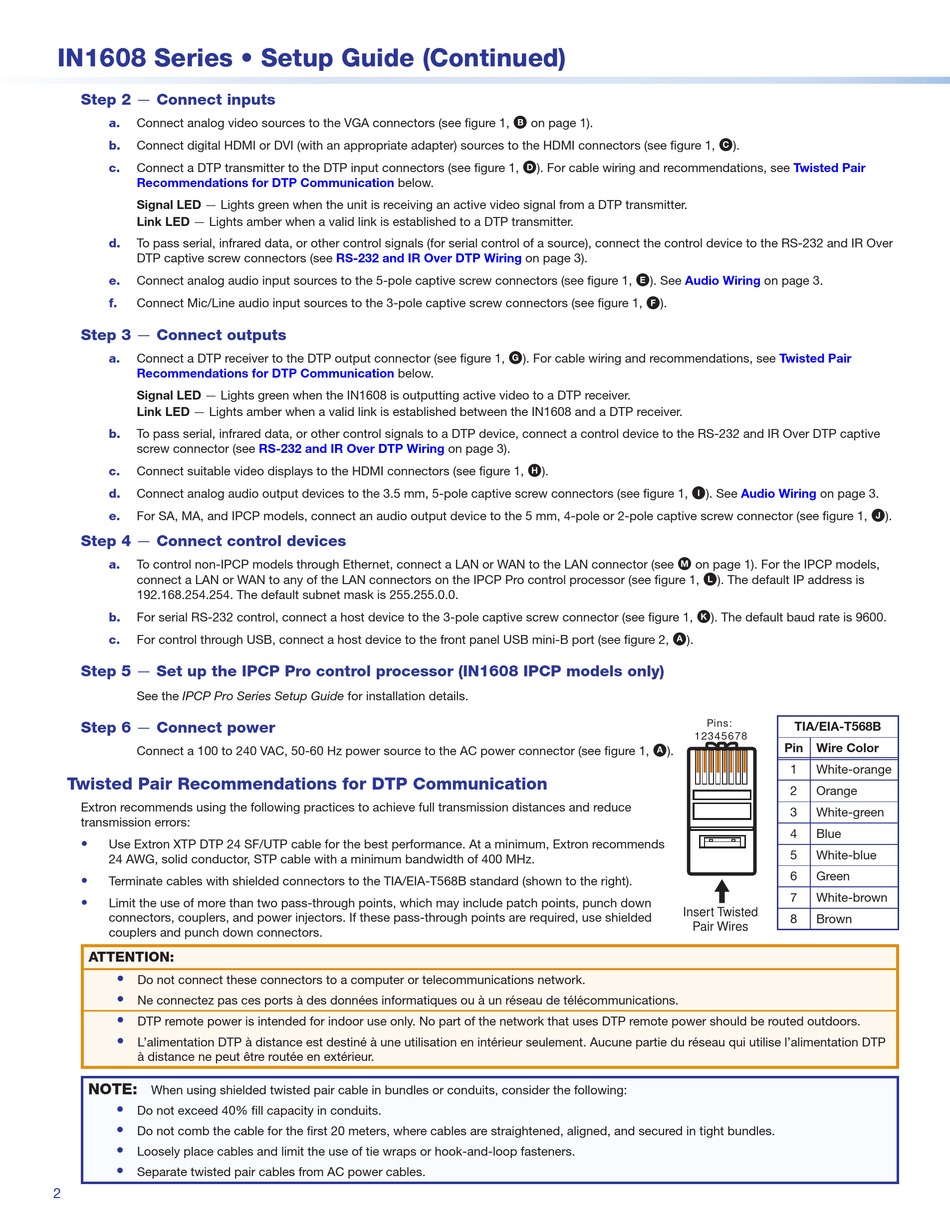

IN1608 Series • Setup Guide (Continued)
Step 2 — Connect inputs
a. Connect analog video sources to the VGA connectors (see figure 1,
b. Connect digital HDMI or DVI (with an appropriate adapter) sources to the HDMI connectors (see figure 1,
c. Connect a DTP transmitter to the DTP input connectors (see figure 1,
Recommendations for DTP Communication
Signal LED — Lights green when the unit is receiving an active video signal from a DTP transmitter.
Link LED — Lights amber when a valid link is established to a DTP transmitter.
d. To pass serial, infrared data, or other control signals (for serial control of a source), connect the control device to the RS-232 and IR Over
DTP captive screw connectors (see
e. Connect analog audio input sources to the 5-pole captive screw connectors (see figure 1,
f. Connect Mic/Line audio input sources to the 3-pole captive screw connectors (see figure 1,
Step 3 — Connect outputs
a. Connect a DTP receiver to the DTP output connector (see figure 1,
Recommendations for DTP Communication
Signal LED — Lights green when the IN1608 is outputting active video to a DTP receiver.
Link LED — Lights amber when a valid link is established between the IN1608 and a DTP receiver.
b. To pass serial, infrared data, or other control signals to a DTP device, connect a control device to the RS-232 and IR Over DTP captive
screw connector (see
c. Connect suitable video displays to the HDMI connectors (see figure 1,
d. Connect analog audio output devices to the 3.5 mm, 5-pole captive screw connectors (see figure 1,
e. For SA, MA, and IPCP models, connect an audio output device to the 5 mm, 4-pole or 2-pole captive screw connector (see figure 1,
Step 4 — Connect control devices
a. To control non-IPCP models through Ethernet, connect a LAN or WAN to the LAN connector (see
connect a LAN or WAN to any of the LAN connectors on the IPCP Pro control processor (see figure 1,
192.168.254.254. The default subnet mask is 255.255.0.0.
b. For serial RS-232 control, connect a host device to the 3-pole captive screw connector (see figure 1,
c. For control through USB, connect a host device to the front panel USB mini-B port (see figure 2,
Step 5 — Set up the IPCP Pro control processor (IN1608 IPCP models only)
See the IPCP Pro Series Setup Guide for installation details.
Step 6 — Connect power
Connect a 100 to 240 VAC, 50-60 Hz power source to the AC power connector (see figure 1,
Twisted Pair Recommendations for DTP Communication
Extron recommends using the following practices to achieve full transmission distances and reduce
transmission errors:
•
Use Extron XTP DTP 24 SF/UTP cable for the best performance. At a minimum, Extron recommends
24 AWG, solid conductor, STP cable with a minimum bandwidth of 400 MHz.
•
Terminate cables with shielded connectors to the TIA/EIA-T568B standard (shown to the right).
•
Limit the use of more than two pass-through points, which may include patch points, punch down
connectors, couplers, and power injectors. If these pass-through points are required, use shielded
couplers and punch down connectors.
ATTENTION:
•
Do not connect these connectors to a computer or telecommunications network.
•
Ne connectez pas ces ports à des données informatiques ou à un réseau de télécommunications.
•
DTP remote power is intended for indoor use only. No part of the network that uses DTP remote power should be routed outdoors.
•
L'alimentation DTP à distance est destiné à une utilisation en intérieur seulement. Aucune partie du réseau qui utilise l'alimentation DTP
à distance ne peut être routée en extérieur.
NOTE:
When using shielded twisted pair cable in bundles or conduits, consider the following:
•
Do not exceed 40% fill capacity in conduits.
•
Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles.
•
Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners.
•
Separate twisted pair cables from AC power cables.
2
below.
RS-232 and IR Over DTP Wiring
below.
RS-232 and IR Over DTP Wiring
on page 1).
B
). For cable wiring and recommendations, see
D
on page 3).
G ). For cable wiring and recommendations, see
on page 3).
).
H
C ).
Twisted Pair
E ). See Audio Wiring on page 3.
F ).
Twisted Pair
I ). See Audio Wiring
M on page 1). For the IPCP models,
). The default IP address is
L
K ). The default baud rate is 9600.
A ).
Pins:
TIA/EIA-T568B
12345678
Pin
A ).
Pin
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
Insert Twisted
8
Pair Wires
RJ-45
Connector
on page 3.
J ).
T568A T
Wire Color
Wire color Wi
White-orange
White-green White
Orange
Green Orang
White-green
White-orange White
Blue
Blue Blue
White-blue
White-blue White
Green
Orange Green
White-brown White
White-brown
Brown Brown
Brown
