Adjustment
Adjusting Image (Continued)

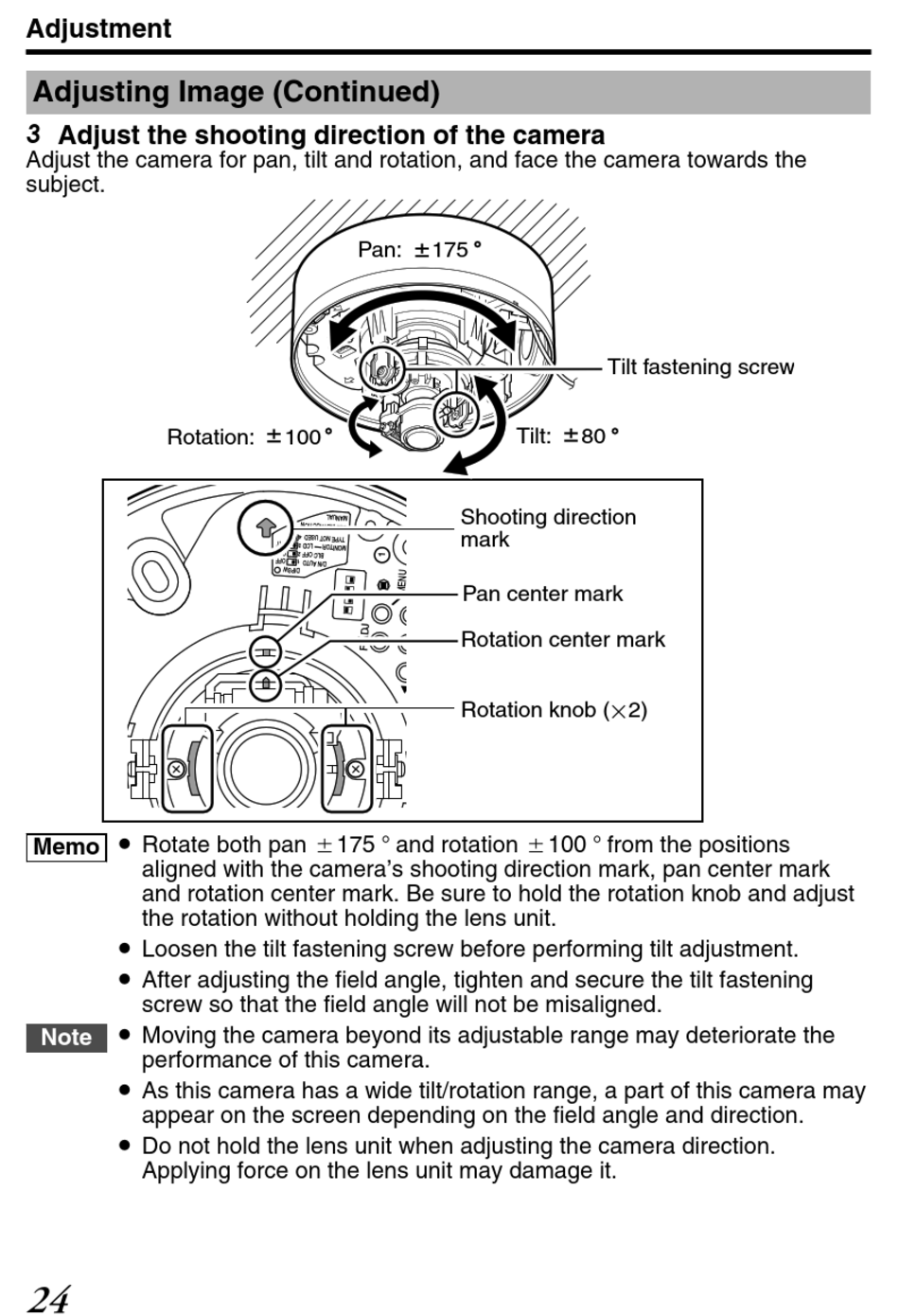

3 Adjust the shooting direction of the camera
Adjust the camera for pan, tilt and rotation, and face the camera towards the
subject.
Rotation:
.
Rotate both pan
Memo
aligned with the camera's shooting direction mark, pan center mark
and rotation center mark. Be sure to hold the rotation knob and adjust
the rotation without holding the lens unit.
Loosen the tilt fastening screw before performing tilt adjustment.
After adjusting the field angle, tighten and secure the tilt fastening
screw so that the field angle will not be misaligned.
Moving the camera beyond its adjustable range may deteriorate the
Note
performance of this camera.
As this camera has a wide tilt/rotation range, a part of this camera may
appear on the screen depending on the field angle and direction.
Do not hold the lens unit when adjusting the camera direction.
Applying force on the lens unit may damage it.
24
Pan:
175
100
175 and rotation
Tilt fastening screw
Tilt:
80
Shooting direction
mark
Pan center mark
Rotation center mark
Rotation knob ( 2)
100 from the positions
