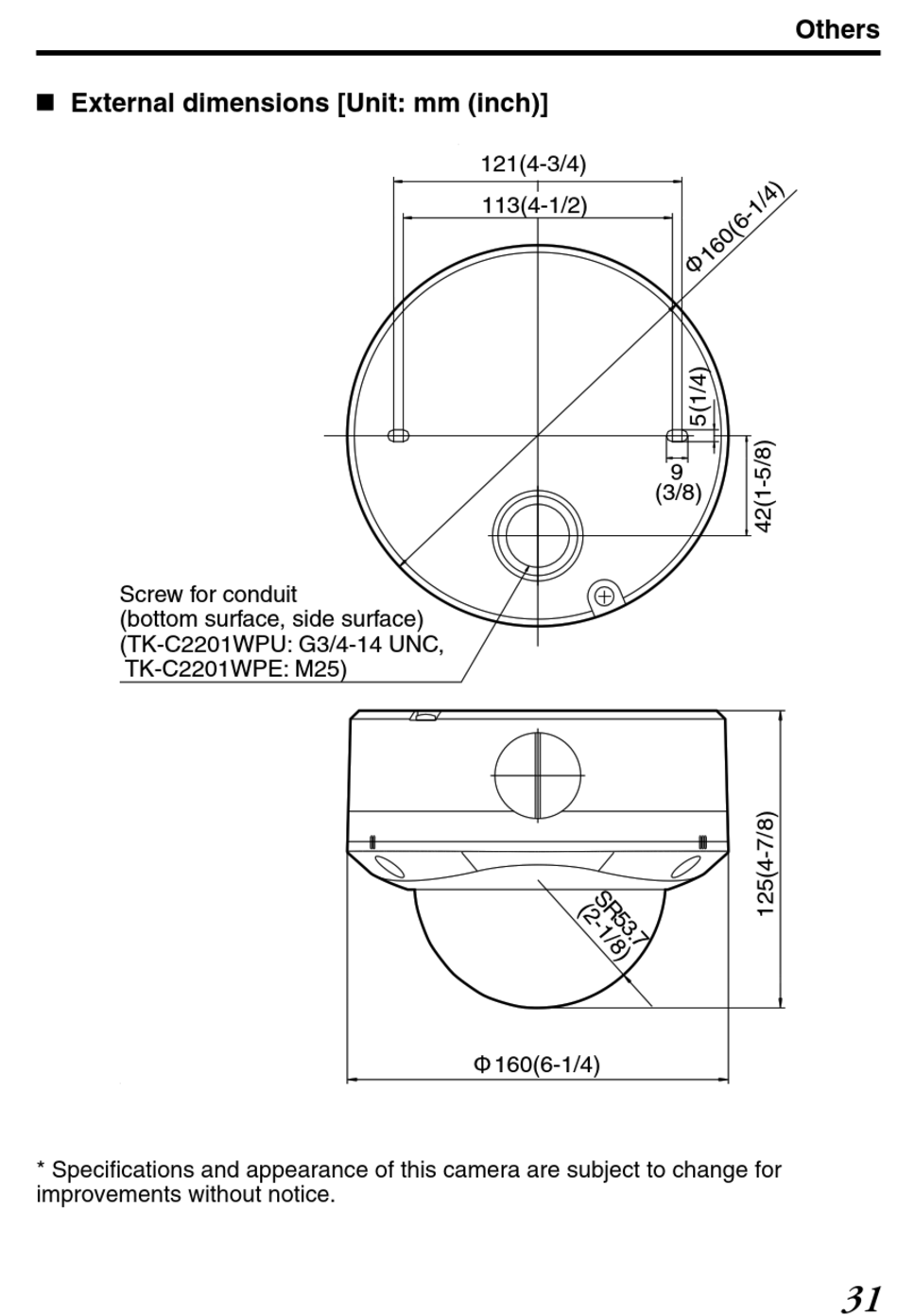

External dimensions [Unit: mm (inch)]
Screw for conduit
(bottom surface, side surface)
(TK-C2201WPU: G3/4-14 UNC,
TK-C2201WPE: M25)
.
* Specifications and appearance of this camera are subject to change for
improvements without notice.
.
121(4-3/4)
113(4-1/2)
Others
9
(3/8)
31
