Mounting the Camera Using the Conduit Hole at the Bottom of the

Base

Conduit hole: G3/4-14 UNC (TK-C2201WPU), M25 (TK-C2201WPE)

1 Remove the dome cover and inner dome (A page 13)

2 Remove the camera unit from the base and mount the fall

prevention wire to the camera unit

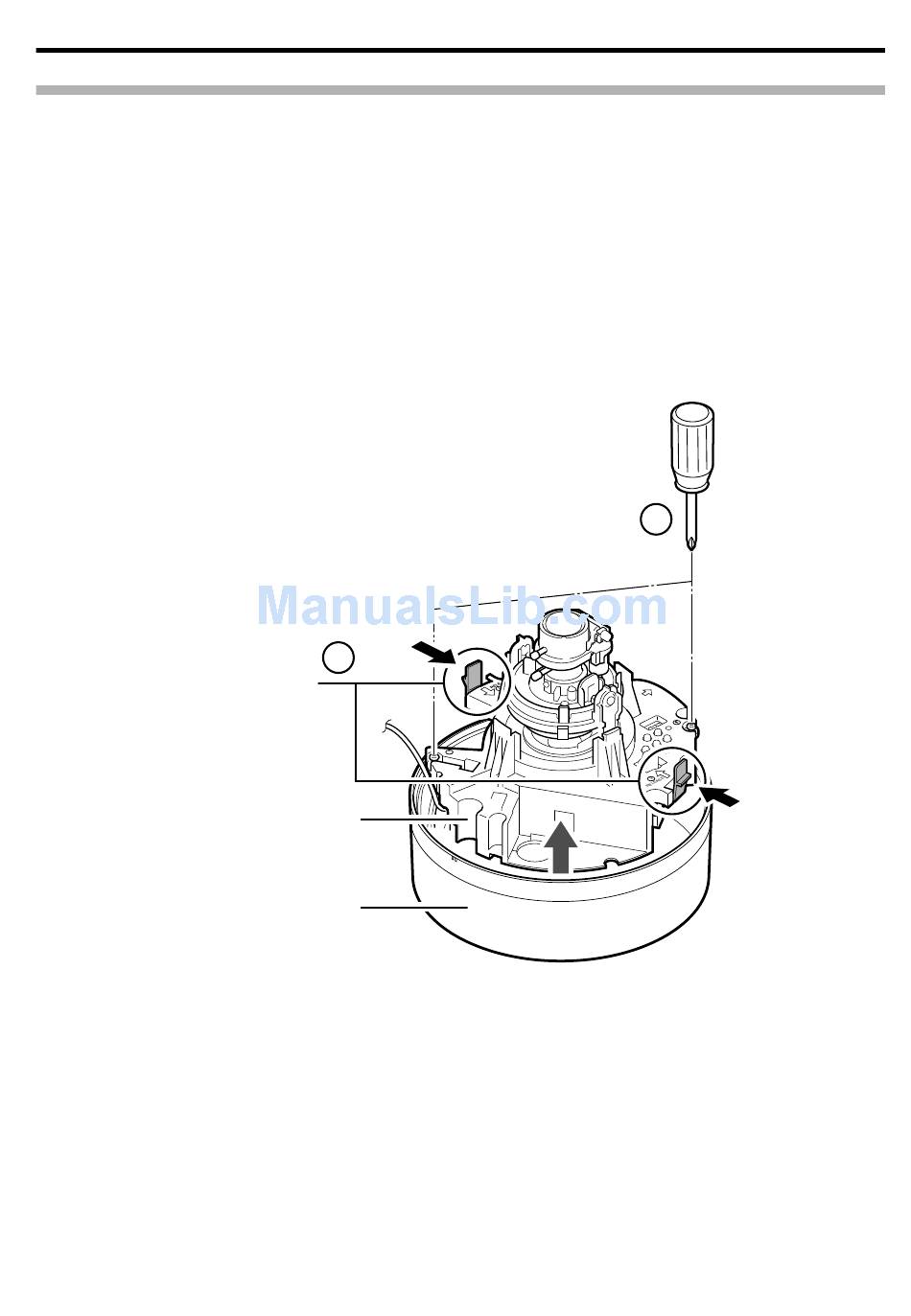

① Loosen the camera unit fastening screw (2 locations) with a screwdriver.

② Press the catch (2 locations) inwards and remove the camera from the base.

③ Remove the fall prevention wire fastening screw on the base to mount the fall

prevention wire. (The fall prevention wire is not provided.)

Catches (x 2)

Camera unit

Base
