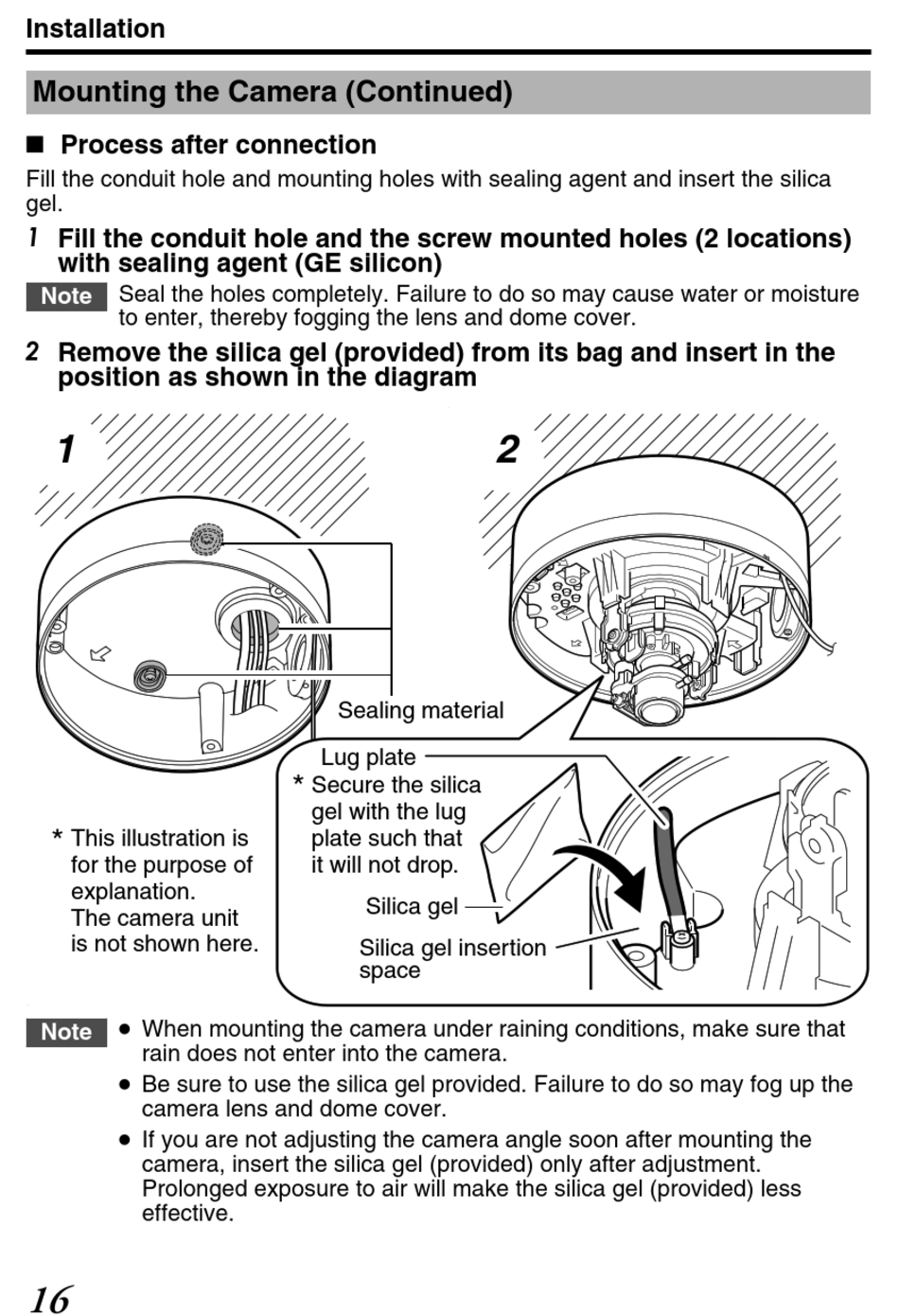

Installation
Mounting the Camera (Continued)
Process after connection
Fill the conduit hole and mounting holes with sealing agent and insert the silica
gel.
1 Fill the conduit hole and the screw mounted holes (2 locations)
with sealing agent (GE silicon)
Seal the holes completely. Failure to do so may cause water or moisture
Note
to enter, thereby fogging the lens and dome cover.
2 Remove the silica gel (provided) from its bag and insert in the
position as shown in the diagram
1
*
This illustration is
for the purpose of
explanation.
The camera unit
is not shown here.
.
When mounting the camera under raining conditions, make sure that
Note
rain does not enter into the camera.
Be sure to use the silica gel provided. Failure to do so may fog up the
camera lens and dome cover.
If you are not adjusting the camera angle soon after mounting the
camera, insert the silica gel (provided) only after adjustment.
Prolonged exposure to air will make the silica gel (provided) less
effective.
16
.
Sealing material
Lug plate
*
Secure the silica
gel with the lug
plate such that
it will not drop.
Silica gel
Silica gel insertion
space
2
