4 Adjust the image size

Loosen the fastening screw for the zoom adjustment ring and move the ring to the

left/right to adjust the image size. After adjustment is complete, fasten the screw.

5 Adjust the focus

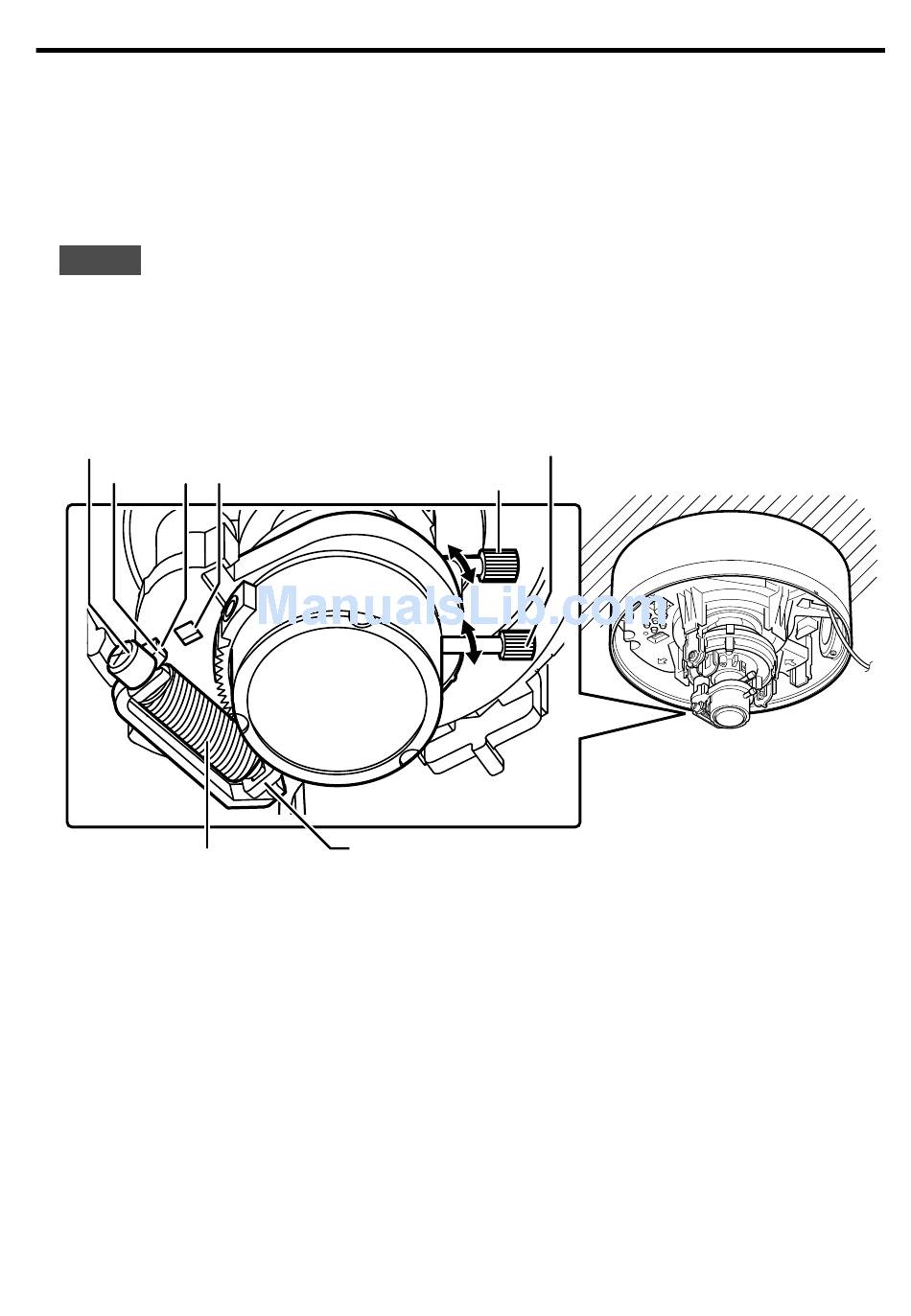

① Hold the focus adjust gear knob, shift the catch from point A to point B as

illustrated in the diagram to disengage the gear.

To prevent the gear shaft from breaking when the gear is opened too

Note

far out from B, remove the gear shaft from the bearing (C in diagram).

In this case, re-insert the shaft back into the bearing C and return it to

the original position before using.

② Loosen the fastening screw for the focus adjustment ring and move the ring

to the left/right to adjust the focus.

Knob

Catch

B A

Focus adjust gear

Focus adjustment ring

Zoom adjustment ring

Adjustment
