Step 2 — Connect the System
1. Connect the scanner to the IB-131 interface box, using the supplied cable with kit
P/N 98-000014-01. If making up your own cable, make certain that you connect
transmit pins to receive pins.
2. Connect the IB-131's "HOST" 25-pin connector to the computer.
25

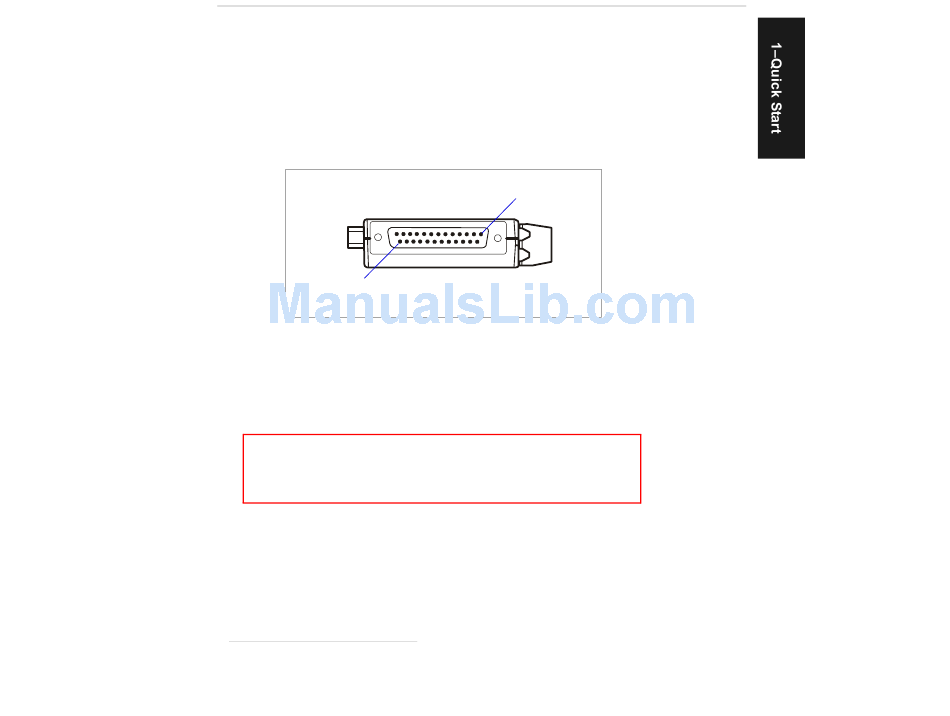

Figure 1-2 Side View of IB-131 showing Host 25-pin Connector

(Refer to "IB-131 Interface Module" on page A-10
3. Connect the power supply to the IB-131's POWER connector.
4. Power up the system.
Caution:
1. Be sure all cables are connected BEFORE applying power.
2. Always power down BEFORE disconnecting any cables.
1. When wiring the IB-131 to a host computer which has a 25-pin connector, cross pins 2 and 3.
When wiring the IB-131 to a host computer which has a 9-pin connector, do NOT cross pins 2
and 3.
MS-820 Industrial Bar Code Scanner User's Manual
Chapter 1 Quick Start
1
1
for pin connections.)
1-3
