Step 1 — Hardware Required
To get started you will need:
• An MS-820 scanner (1).
• A host computer (2) with either a terminal communications program or Microscan's
ESP™ which runs under Windows™ operating system, Windows-95 or higher, includ-
ing Windows NT™.
• A null modem configuration cable (3) P/N 61-300026-01.
• An IB-131 interface kit (4) P/N 98-000014-01 that includes an IB-131 interface
module P/N 99-400005-02 and a scanner to interface cable (5) P/N 61-000011-01.
• A power supply (6) P/N 97-100004-05 (120V) or P/N 97-100004-06 (240V).
Caution: If using your own power supply, be certain that it is wired correctly and sup-
plies voltage is within the +10 to 28VDC limits. Incorrect wiring or voltage can cause
software or equipment failures.
Note: An optional object detector P/N 99-4400021-03 (7) is shown here.
2

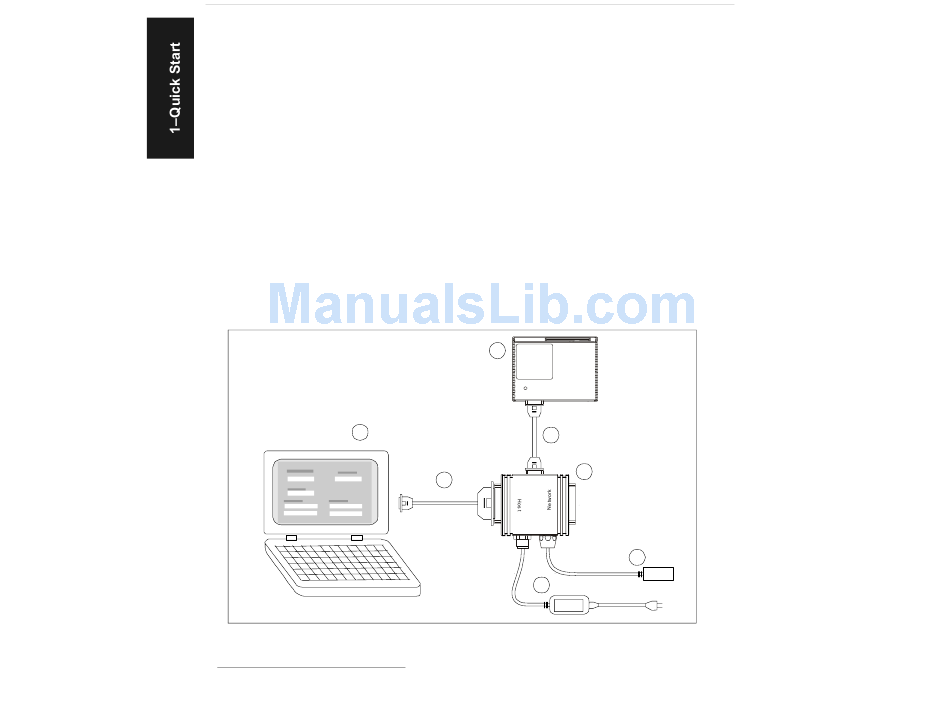

Figure 1-1 Hardware Configuration

1. If using another host cable, make certain it does not have RTS/CTS connected to the host.
1-2
MS-820 Industrial Bar Code Scanner User's Manual
1
1
5
4
3
Scanner
Power Trigger
6
7
