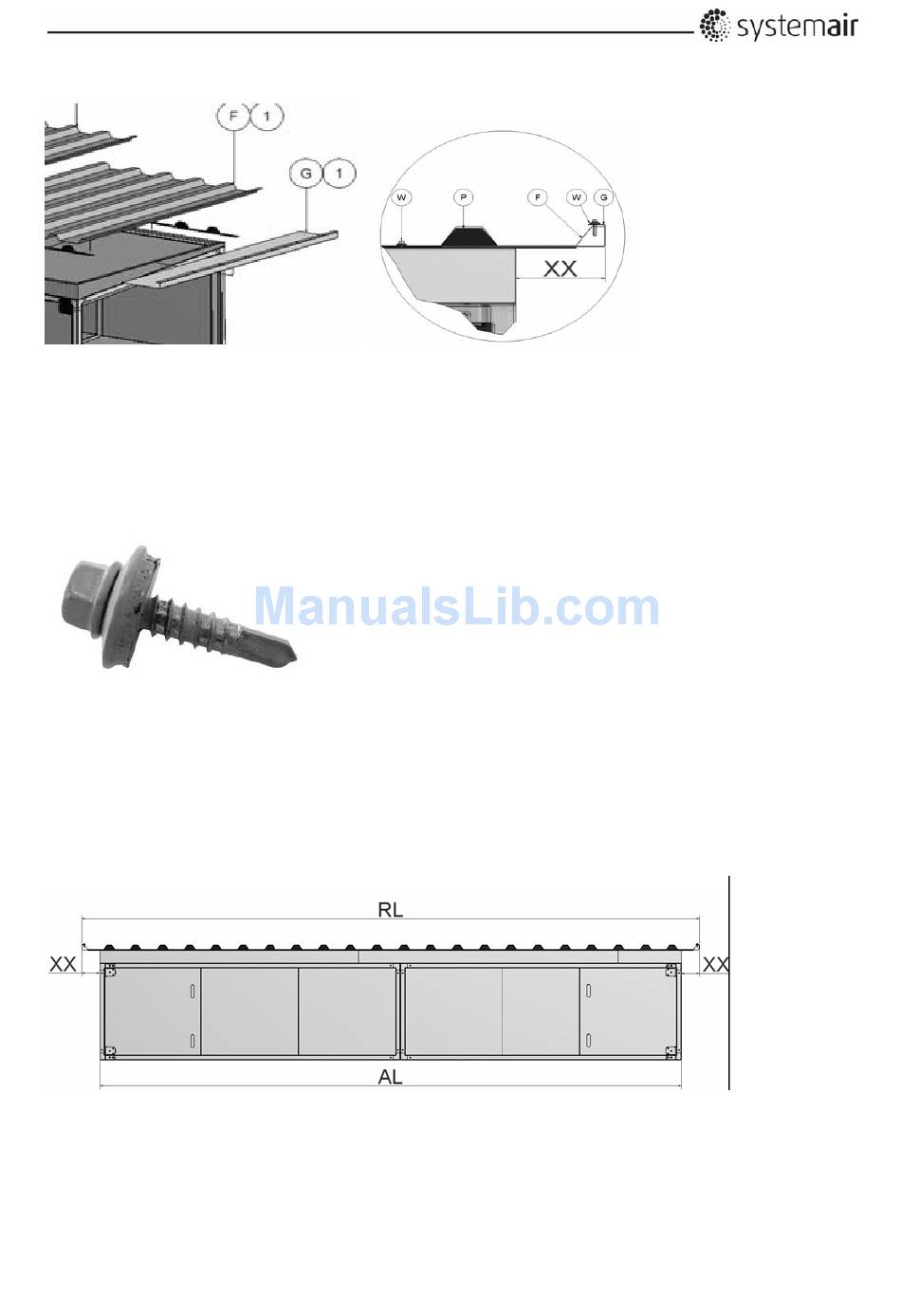

The unit is delivered with 2 similar overhang profiles ‐ G1 and G5 ‐ one for each end of the roof. Mount one
of the 2 roof overhang profiles – G on a trapezoidal roof plate. Use the self drilling, painted screws with
sealing washers ‐ W ‐ see the illustration.
Note: Foam bands ‐ P – are necessary between the overhang profile G1 and the roof plate F1. See the
illustration.
Self‐drilling, painted screws supplied with sealing washer for the mounting of the trapezoidal plate to the
roof overhang profile.
The total cover width of the trapezoidal roof plates always changes with the pitch of 207 mm between the
trapezoidal ribs, making up a total length of the complete roof of ‐ for example 2070 mm, 2277 mm, 2484
mm and so on. We call this length of the total roof for RL and we call the total length of the complete unit
for AL. The trapezoidal roof must always be longer than the unit, to obtain a reasonable overhang called –
XX ‐ of the roof at both ends.
In the table below you will find 40 different lengths of roofs (always changing with the 207 mm) and the
lengths of units that are ideal for each of the 40 alternative roof lengths.
