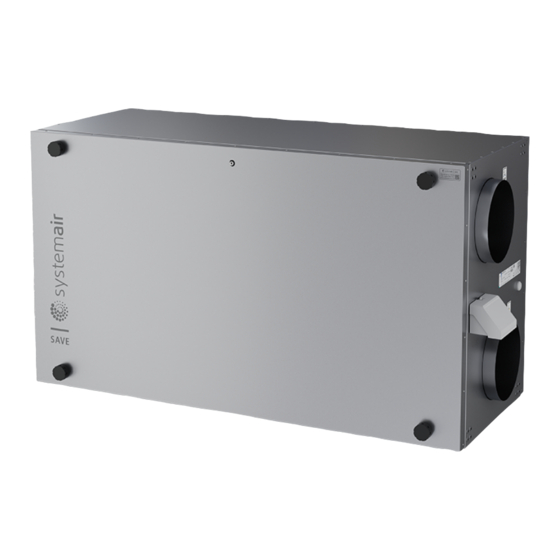

SAVE VSR 400
GB
User Manual
Document in original language | 456007 · v01

Advertisement

Table of Contents
loading

Related Manuals for SystemAir SAVE VSR 400

Summary of Contents for SystemAir SAVE VSR 400

  • Page 1 SAVE VSR 400 User Manual Document in original language | 456007 · v01...
  • Page 2 © Copyright Systemair UAB All rights reserved E&OE Systemair UAB reserves the rights to change their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 456007 | v01...

  • Page 3: Table Of Contents

    Contents Overview ............1 4.8.2 Checking the outdoor air intake ........14 General Description ........1 4.8.3 Checking the roof cowl (if Warranty ..........1 fitted)........14 Type label..........1 4.8.4 Checking and cleaning the Warnings............1 duct system ......14 Operation ............2 Troubleshooting..........14 SAVE LIGHT control panel ......2 Electrical data ..........

  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.

  • Page 6: Operation

    | Operation Warning • This product is not intended to be used by children or people with reduced physical or mental ability or lack of experience and knowledge, if no instruction concerning the use has been given by the person responsible for their safety or that this person is supervising the operation.

  • Page 7: To Cancel Sleep Mode

    Operation | Refresh Auto — flashing High Normal (Minimum) (Maximum) slowly Automatic The fan can be Fan speed – 25% Fan speed – 45% Fan speed – 70% Sets speed of airflow control. set to Off by both supply and activating extract air fans Available only...

  • Page 8: Save Touch Control Panel / Save Connect

    | Operation SAVE TOUCH control panel / SAVE CONNECT Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too hard. SAVE CONNECT solution (mobile application and Internet access module) has a similar menu structure and functionality as SAVE TOUCH control panel, so this section can also be used as a guide for the mobile application.

  • Page 9: Quick Information Screen

    Operation | Touch the alarm bar on the home screen to see all active alarms. Touch HELP button to know more about the alarm. To clear the alarm, touch ACKNOWLEDGE button. Note: The underlying cause of the alarm must be resolved first otherwise the alarm will appear again. If the problem continues contact your installation company or place of purchase.
  • Page 10 | Operation Duration have to be set for temporary user modes. SAVE VSR 400 will return to its previous working mode after the set time expires. Note: AUTO mode is available for selection only if the optional Demand Control, Week Schedule and/or external fan control functions are activated.

  • Page 11: To Change The Temperature

    Operation | Icon Text Description Sets speed of both supply and extract air fans to Maximum levels to replace Refresh indoor air with a fresh air in a short period of time. Set duration in minutes. Sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better smoke extraction through Fireplace the chimney.

  • Page 12: To Set A Week Schedule

    | Operation 3.2.8 To set a week schedule While in home screen, touch menu icon and select Week Schedule. The menu is locked by default. Enter a password (default password is 1111). Touch icon at the bottom left corner of the screen to add a new schedule or press EDIT button to modify already added schedule.

  • Page 13: Maintenance

    1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area. • Use original spare parts from Systemair only. • Scan the code on the type label to find a spare part list.

  • Page 14: To Change Filters

    | Maintenance 3. Clean any dust or dirt. Use a vacuum cleaner and a damp cloth. Allow the product to dry. 4. Replace and lock the side cover and connect the unit to mains. To change filters The filters cannot be cleaned and must be changed as necessary.

  • Page 15: To Select A Different Filter Kit

    Maintenance | 4.4.2 To select a different filter kit Standard filters are designed for good outdoor air quality. It is possible to se- lect and order filter kits for poorer air quality environment. To change filter kit type 1. Touch Select different filter kit button in the alarm menu. Alternatively, go to Filter menu (3.2.2 Home screen overview, page 4, pos.

  • Page 16: To Clean Fans

    | Maintenance To clean fans Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! Warning • Risk of injury due to rotating parts that have not come to a complete standstill after mains supply to the unit have been disconnected.
  • Page 17 Maintenance | In case both welded belts break it is possible to use joint nipple as a temporarily quick repair solution until the welded belt can be replaced with a new one. Depending of how the unit is installed, it may be not necessary to remove the heat exchanger package in order to temporary repair a broken drive belt if the belt pulley can be accessed.

  • Page 18: Duct System Maintenance

    | Troubleshooting Note: If the alarm remains, contact the installer. Duct System Maintenance 4.8.1 Cleaning extract louvres and supply air diffusers The system supplies fresh air to your home and extracts the used indoor air via the duct system and diffusers/louvres. Diffusers and louvres are mounted in ceilings/walls in bedrooms, living room, wet rooms, WC etc.

  • Page 19: Electrical Data

    Electrical data | The unit cannot be controlled (control functions are stuck 1. Reset control functions by disconnecting mains power for at least 10 seconds. 2. Check the modular contact connection between the control panel and the main printed circuit board. Low supply air temperature 1.
  • Page 20 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
