- Page 1 DC265 Visual Presenter User Manual [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.lumens.com.tw/goto.htm English - 0...
-
Page 2: Table Of Contents
EN55022 (CE Radiation) Warning ............... 6 Chapter 2 Package Content ................8 Chapter 3 Product Overview................9 Relative position of the presenter and DC265 ........10 Recommend distance ................ 10 Incorrect use ..................11 Chapter 4 Installation and Connections ............. 12 System diagram................. - Page 3 Chapter 7 Descriptions of major functions ............ 27 I would like to switch image sources ..........27 I would like to make text clearer and photos more colorful ....27 I would like to zoom in /out of images ..........27 I would like to use the auto focus ............
-
Page 4: Copyright Information
Copyright Information © Copyrights Lumens Digital Optics Inc. All rights reserved. Lumens is a trademark that is currently being registered by Lumens Digital Optics Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. -
Page 5: Chapter 1 Precautions
Chapter 1 Precautions Always follow these safety instructions when setting up and using the visual presenter: Do not place visual presenter in tilted position. Do not place the visual presenter on an unstable trolley, stand or table. Do not use the visual presenter near water or source of heat. Use attachments only as recommended. -
Page 6: Safety Precautions
Unplug the visual presenter from the wall outlet and refer serving to licensed service personnel when the following situations happen: If the power cable or plug becomes damaged or frayed. If liquid is spilled into it or the visual presenter has been exposed to rain or water. -
Page 7: En55022 (Ce Radiation) Warning
Note: This equipment has been tested and found to comply with the limits for a Class A or B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. - Page 8 Revision Note English - 7...
-
Page 9: Chapter 2 Package Content
Chapter 2 Package Content DC265 Quick Start Guide Remote Control Holder Download and Safety Remote control Audio cable Instruction Extender Adapter VGA Cable USB Cable C-Video Cable Power Cord Microscope Adapter Appearance may vary with country/region. Padded Carry Bag... -
Page 10: Chapter 3 Product Overview

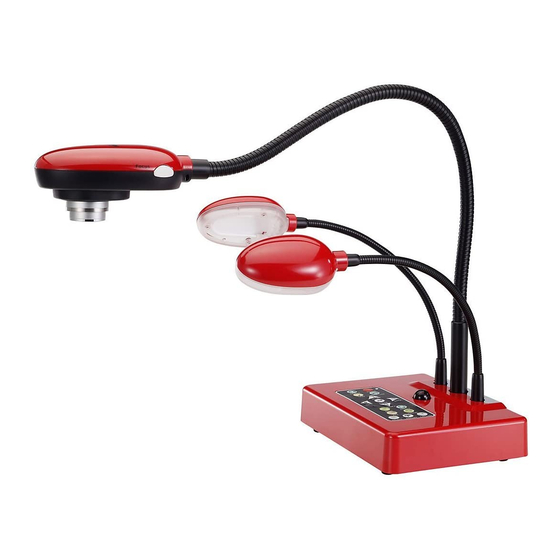

Chapter 3 Product Overview 8. Gooseneck 7. AF button 4. LED indicator 1. Lamp 3. Control panel 2. Remote sensor 9. Built-in Microphone 5. Lens 6. DIP switch (Bottom) English - 9... -
Page 11: Relative Position Of The Presenter And Dc265
3.1 Relative position of the presenter and DC265 DC265 Presenter Document 3.2 Recommend distance * About 470 mm distance between camera and the desktop is recommended. English - 10... -
Page 12: Incorrect Use
3.3 Incorrect use English - 11... -
Page 13: Chapter 4 Installation And Connections
Chapter 4 Installation and Connections 4.1 System diagram Projector Monitor Monitor Speaker (or an amplifier before connecting to the speaker) LCD TV SD Card Television English - 12... -
Page 14: Mounting The Dc265 At Desktop
<Note> Appearance of power cord may vary with countries/regions. 4.3.2 Step 2: Connecting with components Connecting to a projector Connect the VGA OUT on the DC265 to the VGA IN on the projector using the VGA cable. Connecting to a monitor Use VGA cable to connect VGA PASSTHROUGH connector on DC265 ... - Page 15 Show] are not available on control panel and the remote control. <Note> VGA output is not supported once C-Video output is enabled. 3. DIP Switch setting will not be available until restarting the DC265 Connecting to a LCD TV/ PDP ...
-
Page 16: Connecting To A Computer
Connecting to a computer Use VGA cable to connect VGA IN connector on DC265 to the VGA OUT connector on the computer Using the USB Cable Connect to USB port then install the supplied Ladibug™ DC265 User Manual. -
Page 17: Start Using The Dc265
When using the remote control, aim at the receptor on the DC265, and press the power button. Once DC265 is turned on, the LED on the control panel will flash a few times and stay lit. Please contact your distributor if the LED is not <Note>... -
Page 18: Installing Application Software
4.6 Installing application software After installing the USB driver and application software, you can use the following functions: Control the DC265. Capture and record images. Annotate the image, highlight important details and save it. Support the full screen function. -
Page 19: Chapter 5 Dip Switch Settings
Chapter 5 DIP Switch Settings <Note> You have to reset the unit for setting to take affect. 5.1 Connecting to a projector or monitor 5.1.1 SXGA 60Hz output (default values): 5.1.2 XGA 60 Hz output 5.1.3 Special mode 5.1.4 HDTV 720P 60Hz output English - 18... -
Page 20: Connecting To A Tv
5.2 Connecting to a TV 5.2.1 NTSC: America, Taiwan, Panama, Philippines, Canada, Chile, Japan, Korea and Mexico 5.2.2 PAL: Countries/regions not listed above. <Remark> VGA output is not supported once C-Video output has been enabled. English - 19... -
Page 21: Chapter 6 Control Panel/Remote Control And Setting Menu
Chapter 6 Control Panel/Remote Control and Setting Menu 6.1 Functions of control panel and remote control <NOTE>: OSD is not available at C-Video mode. [Menu] / [Rotate] / [PAN] / [Source] / [Record] / [Capture] / [Delete] / [PBP] / [Slide Show] functions are not available on the machine panel and the remote control. - Page 22 Compare live images with captured images. Remote control Record Record motion images. Press [Record] to record Remote control / images to SD card, press [Record] again to stop Control panel recording. Rotate Rotate the image by 0°/90°/180°/270°. Remote control / Control panel Slide Show Show the photos or videos stored in the SD card...
-
Page 23: Setting Menu
6.2 Setting Menu <Remark> Press [Menu] on the remote control or control panel to enter the setting menu; The bold underlined values in the following table are the defaults. Level Level Level Major Adjustment Descriptions Minor Items Items values Use the left and right arrow Focus 0~Max keys to adjust focal length on... - Page 24 1. 0.5 Sec 2. 1 Sec Use the left and right arrow keys to select the delay time. 3. 3 Sec Delay 4. 5 Sec Select manual mode to switch images manually. 5. 10 Sec 6. Manual Use the left and right arrow 1.
- Page 25 USB transfer mode. 1. Camera 1.Camera: connecting the USB Transfer 2. Storage device DC265 to view live image; 2.Storage device: connecting to the SD card (priority) or internal memory. Regardless of outside environment, the machine will...
- Page 26 2. SXGA modes are provided. Refer to 3. UXGA Output Mode Chapter 5 DIP “Switch 4. 720P Settings” in the DC265 user 5. 1080P manual. Use the left and right arrow keys to turn the lock down Lock Down On/Off function on and off.
- Page 27 Read the value of the current image mode. Preset Load Yes/No Use the left and right arrow keys to select, and then press [Enter] to confirm. Save the value of the current image mode. Preset Save Yes/No Use the left and right arrow keys to select, and then press [Enter] to confirm.
-
Page 28: Chapter 7 Descriptions Of Major Functions
Chapter 7 Descriptions of major functions 7.1 I would like to switch image sources Live image is the default of image source. Press [Source] on the remote control or control panel to change: 1. Live images (default) 2. SD card (priority) or internal memory 3. -
Page 29: I Would Like To Adjust The Brightness
7.5 I would like to adjust the brightness If you use the remote control or the control panel: 1. Press [BRT +] to make it brighter. 2. Press [BRT -] to make it darker. 7.6 I would like to turn on/ off the lamp 1. -
Page 30: I Would Like To View Captured Images
7.8.3 Capturing and saving images 1. Press [Capture] on the remote control or control panel . <Note> If the capture mode is set to [continuous], press [Capture] to capture images continuously, press [Capture] again to exit. 7.9 I would like to view captured images 1. -
Page 31: I Would Like To Record Videos (Record)
7.12 I would like to record videos (Record) 7.12.1 Setting the image quality 1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to the [Storage]. 3. Press [] to [Image Quality]. 4. -
Page 32: I Would Like To Play The Slides (Slide Show)
7.14 I would like to play the slides (Slide Show) 7.14.1 Setting the slide show effect 1. Press [Menu] on the remote control or control panel to enter the setting menu. 2. Press [] or [] to access the [Storage] menu. 3. -
Page 33: I Would Like To Resume The Factory Default Setting (Factory Reset)
Captured Image Live Image Remote control: 1. Press [PBP] to enter the PBP (Picture by Picture) photo selection screen. 2. Press [] or [] or [] or [] to select the files to be compared. 3. Press [Enter] to activate the image comparison. 4. -
Page 34: I Would Like To Reduce The Image Noise (Projector Type)
2. Press [] or [] to access the [Advanced] menu. 3. Press [] to select [Factory Reset]. 4. Press [] or [] to select [Yes]. 5. Press [Enter] to activate. 7.17 I would like to reduce the image noise (Projector Type) This function enables visual presenter to automatically clear image noise. -
Page 35: I Would Like To Set / Change The Password (Lock Down)
6. Press [] to [Logo Show time], and press [] or [] to modify the show time. 7. Press [MENU] to exit. 7.19 I would like to set / change the password (Lock Down) 7.19.1 Setting the password 1. Press [Menu] on the control panel to enter the setting menu. 2. -
Page 36: Using A Sd Card
7.20.2 Inserting a SD card 7.20.2.1 The screen will display [Copy to SD card] and ask if you would like to copy the files saved in the DC265 to a SD card. Press [] or [] on the control panel to select. -
Page 37: Computer-Related Functions
SD card. 7.21 Computer-related functions Ensure that the USB cable is connected and the drivers are installed before using the computer-related functions. Refer to DC265 User Manual Chapter 4 Installation and Connections 4.3 Connecting Devices and 4.6 Installing application software. - Page 38 2. Click [Get Picture] will capture the photos of live images and insert the files in use shown as top right figure. 7.21.2 I would like to insert a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote.
- Page 39 7.21.3 I would like to change the setting of DC265 then capture a photo in MS-Word <Remark>: For Windows Office 2003 or later versions, please use the function with OneNote. 1. Click Insert > Image > From Scanner or Camera in MS-Word.
- Page 40 5. Press [Setting] to capture images in MS-Word. 6. Press [Cancel] to exit. 7.21.4 I would like to set the DC265 as a PC Camera 1. Press [Menu] on the remote control or control panel to enter the setting menu.
- Page 41 3. Press [] to find [USB Transfer]. 4. Press [] or [] to select [Storage device]. 5. Press [Menu] to exit. 6. A Removable Disc will be displayed. <Remark> The Removable Disc will select SD card if a SD card has been inserted, but if a SD card has not been inserted, the Removable Disc is internal memory.
-
Page 42: Chapter 8 Connecting To Microscope
<Note> Please choose an appropriate microscope adapter. Microscope adapter accessories are applicable to eyepieces of Ø28mm, Ø31mm, Ø33mm, and Ø34mm. 2. The lens of DC265 connects with the microscope adaptor. For eyepieces of about Ø33mm For eyepieces of about Ø28mm or and Ø34mm, only one... - Page 43 5. Digital Zoom 5.1. Press [MENU] to enter the setting menu. 5.2. Press [] or [] to the [Setting]. 5.3. Press [] to select [Digital Zoom]. 5.4. Press [] or [] to select [On]. 5.5. Press [Zoom +]/[Zoom -] on the remote control and control panel <Note>...
-
Page 44: Chapter 9 Troubleshooting
Chapter 9 Troubleshooting This chapter describes problems you may encounter while using DC265. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
