Chapter 2 : STARTING

2-1. DIGI SCAN 1600 CONNECTIONS:

Turn OFF all of your equipment before connecting.
Connect the AC power supply cord to the DIGI SCAN 1600 and to an AC power outlet.
Connect your computer source to the COMPUTER INPUT (HD15) connector or the DVI-D INPUT connector.
As required, connect a control monitor on the MONITOR OUT (HD15) connector.
NOTE: Set the RGB Hi-Z/75 Ω button on Hi-Z if you connect a monitor on the MONITOR OUT connector. If not set
it on 75 Ω.
NOTE: The MONITOR OUT is available only if the COMPUTER source is analog.
Connect your display devices (TV monitor, VCR...) to the outputs (analog or SDI).
Turn ON the DIGI SCAN 1600 (rear panel switch). Then turn ON your input source and then your display devices.

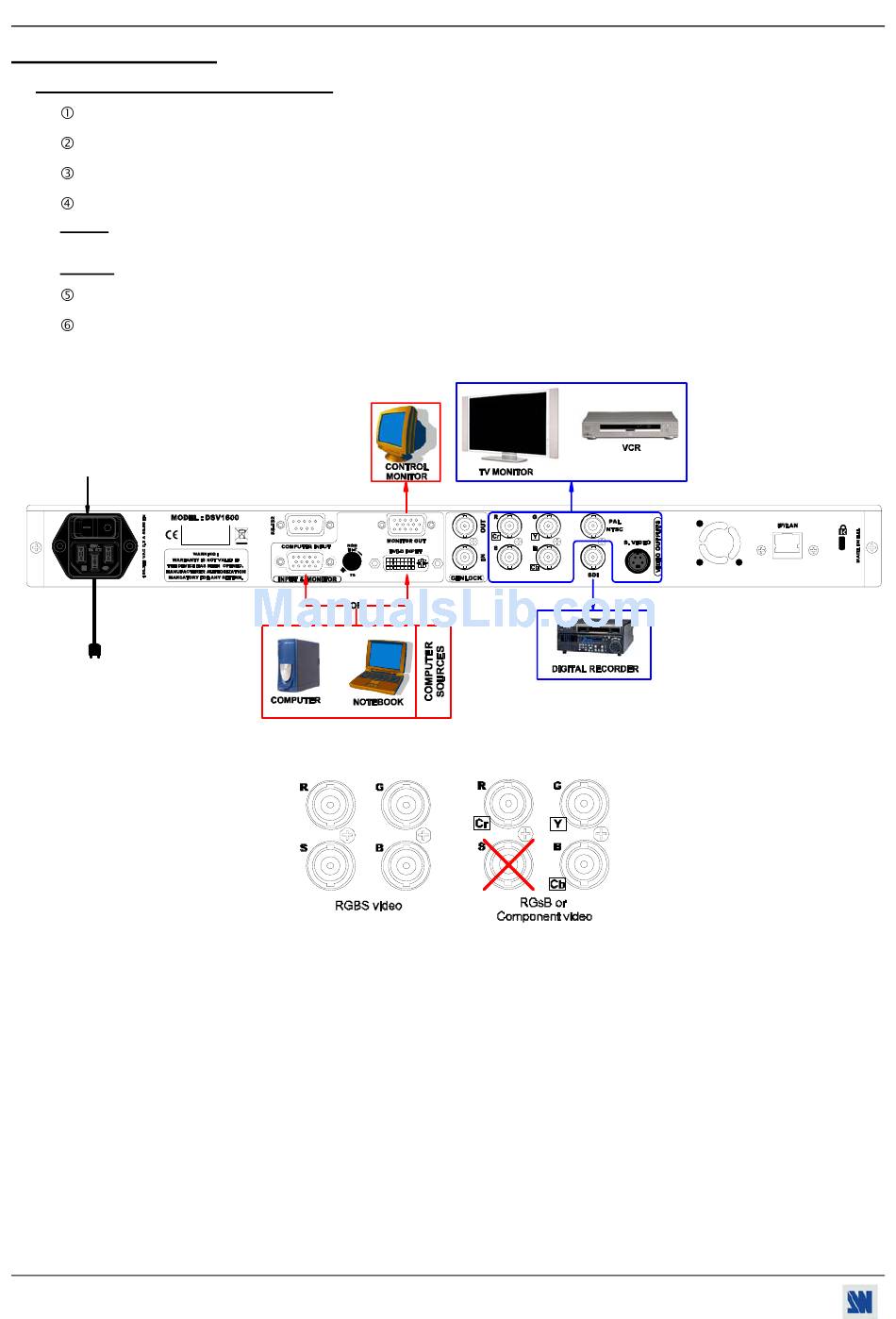

• DIGI SCAN 1600 connection diagram:
6
2
• RGB/COMPONENT output connection:
