Chapter 1 : INTRODUCTION (continued)

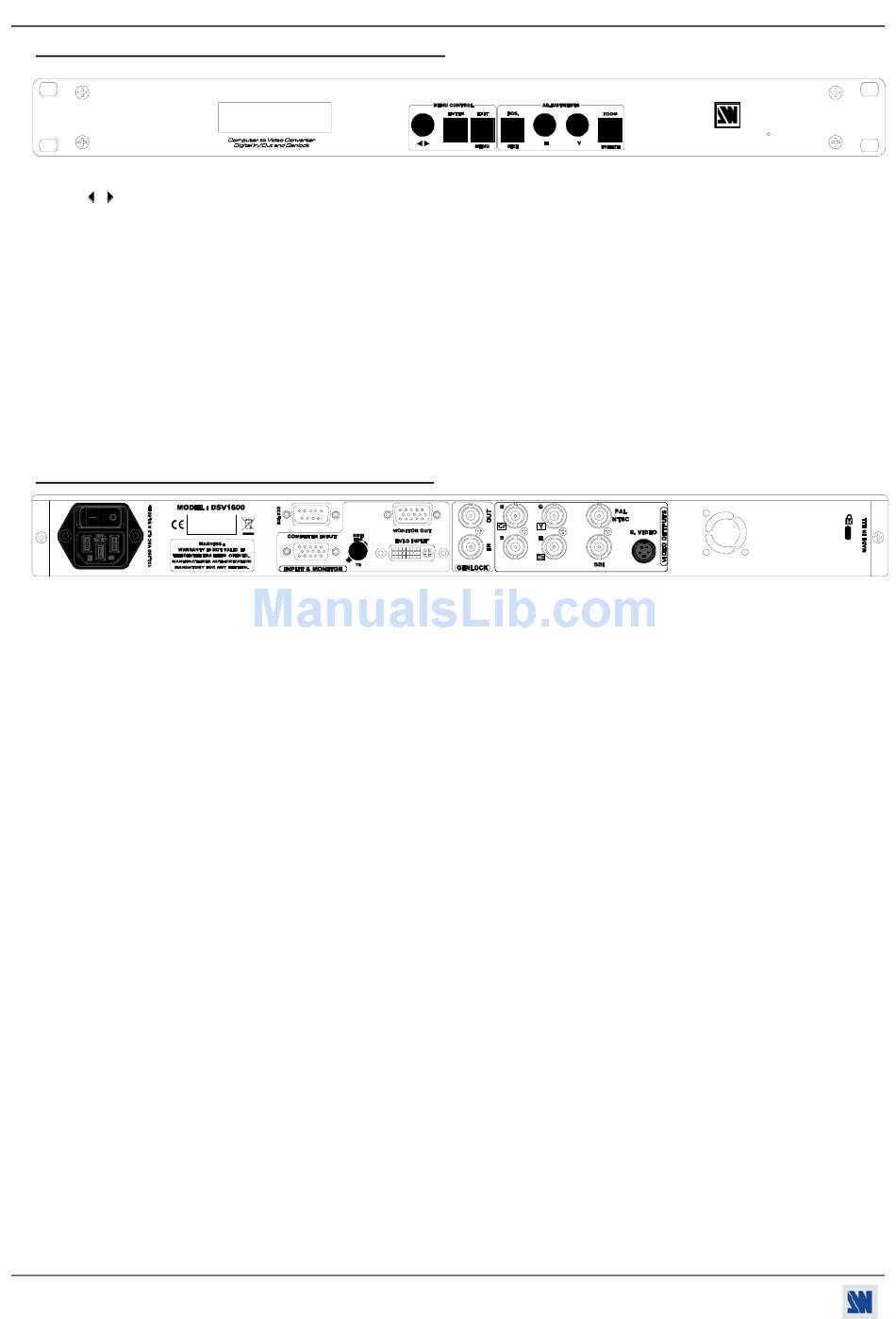

1-7. DIGI SCAN 1600 FRONT PANEL DESCRIPTION

MENU CONTROL
ENTER:
EXIT MENU:
ADJUSTMENTS
POS. SIZE:
H:
V:
ZOOM:
FREEZE:

1-8. DIGI SCAN 1600 REAR PANEL DESCRIPTION

ON / OFF:
POWER:
RS-232:
INPUT & MONITOR
COMPUTER INPUT: Analog computer input on HD15 female connector.
DVI-D INPUT:
RGB Hi-Z / 75 Ω:
MONITOR OUTPUT: Analog computer output (loop-through) on HD15 female connector.
GENLOCK
IN:
OUT:
VIDEO OUTPUTS
R, G, B, S:
Cr, Y, Cb:
PAL/NTSC:
SDI:
S.VIDEO:
PAGE 10
DIGI SCAN 1600
Allows to scroll thru the different menus.
Validates a selected item.
A long push on this button allows to activate the STANDBY mode. A short push on this
push button allows to wake up the device.
Allows to exit from a LCD menu.
Position or Size mode selection.
Horizontal image adjustment.
Vertical image adjustment.
Zoom mode selection (long push)
Freezes the displayed output (short push).
Ω
AC power switch (O = OFF, I = ON).
Standard IEC connector (100-250 VAC, 0.5A, 50-60Hz automatic).
RS-232 communication port on a DB9 female connector.
DVI-D computer input on DVI female connector.
RGB input load. Set this button on Hi-Z if you connect a monitor on the MONITOR OUT
connector. If not set it on 75 Ω.
GENLOCK input.
GENLOCK output (loop-through).
RGB/S or RGsB video outputs (on 3 or 4 BNC connectors).
Component video (YUV) output (on 3 BNC connectors).
Composite video output (on 1 BNC connector).
SD-SDI (4:2:2) output (on 1 BNC connector).
S.VIDEO output (4-pin mini DIN connector).
SCAN 1600 / DIGI SCAN 1600
