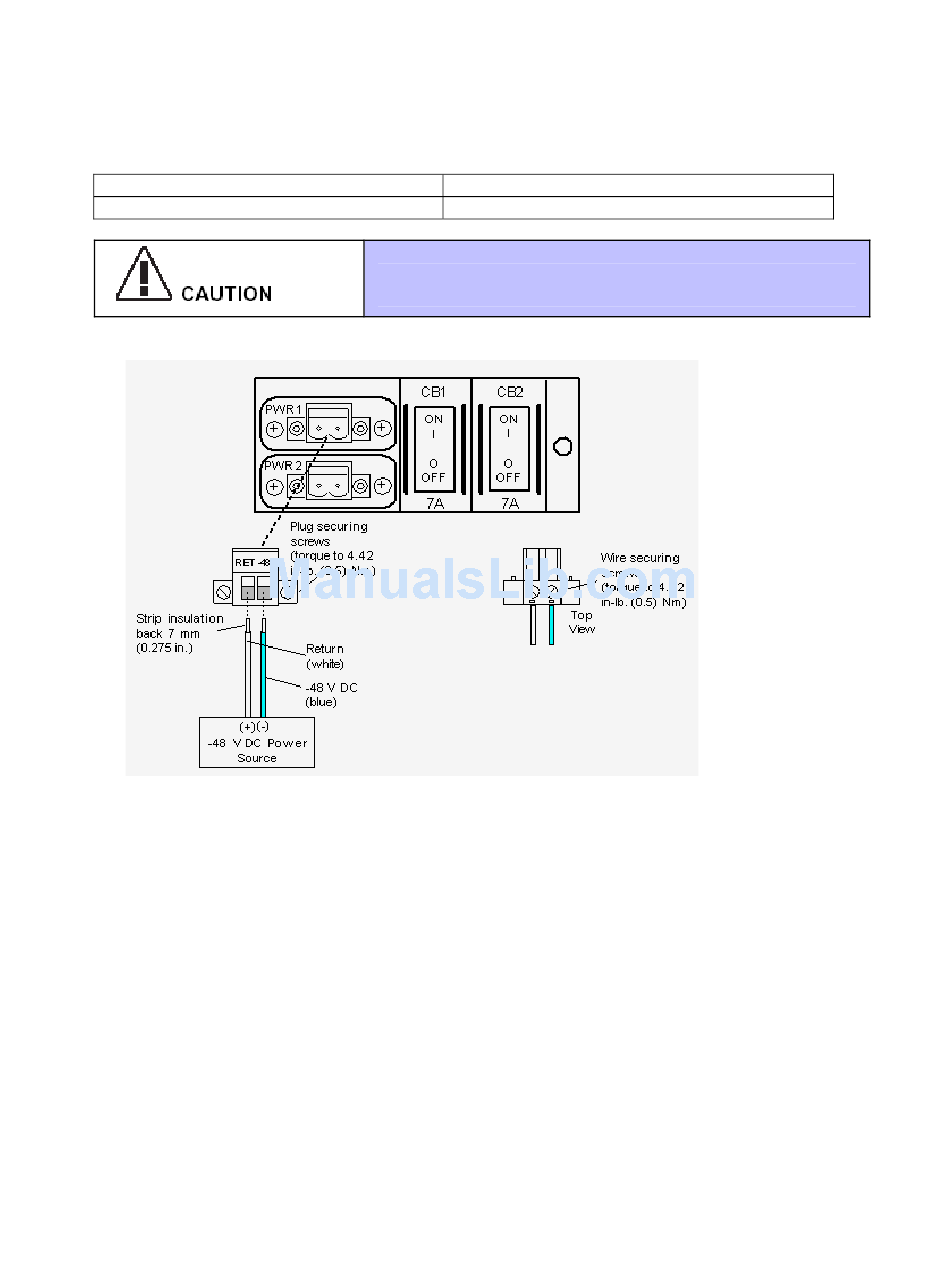

-48vdc wiring

When connecting -48 vdc to the IMG 1010, follow the instructions in the table and

diagram below

14 AWG Machine Tool Wire (MTW)

DC Power Module Plugs

For more information on connecting DC power see IMG 1010-Installation and Setup

Guide > IMG 1010-Hardware Installation in the Online documentation.

Dialogic Corporation

IMG 1010 Quick Start Guide

Blue = -48v

Dialogic Supplied (In Plastic Bag)

The DC power module plugs are polarity-sensitive.

The unit will not operate if the plugs are not wired

correctly, as shown below.

Part # 07-8728-04

White = -48v return

Page 5 of 9
