Summary of Contents for Pro-face GP4104G1D

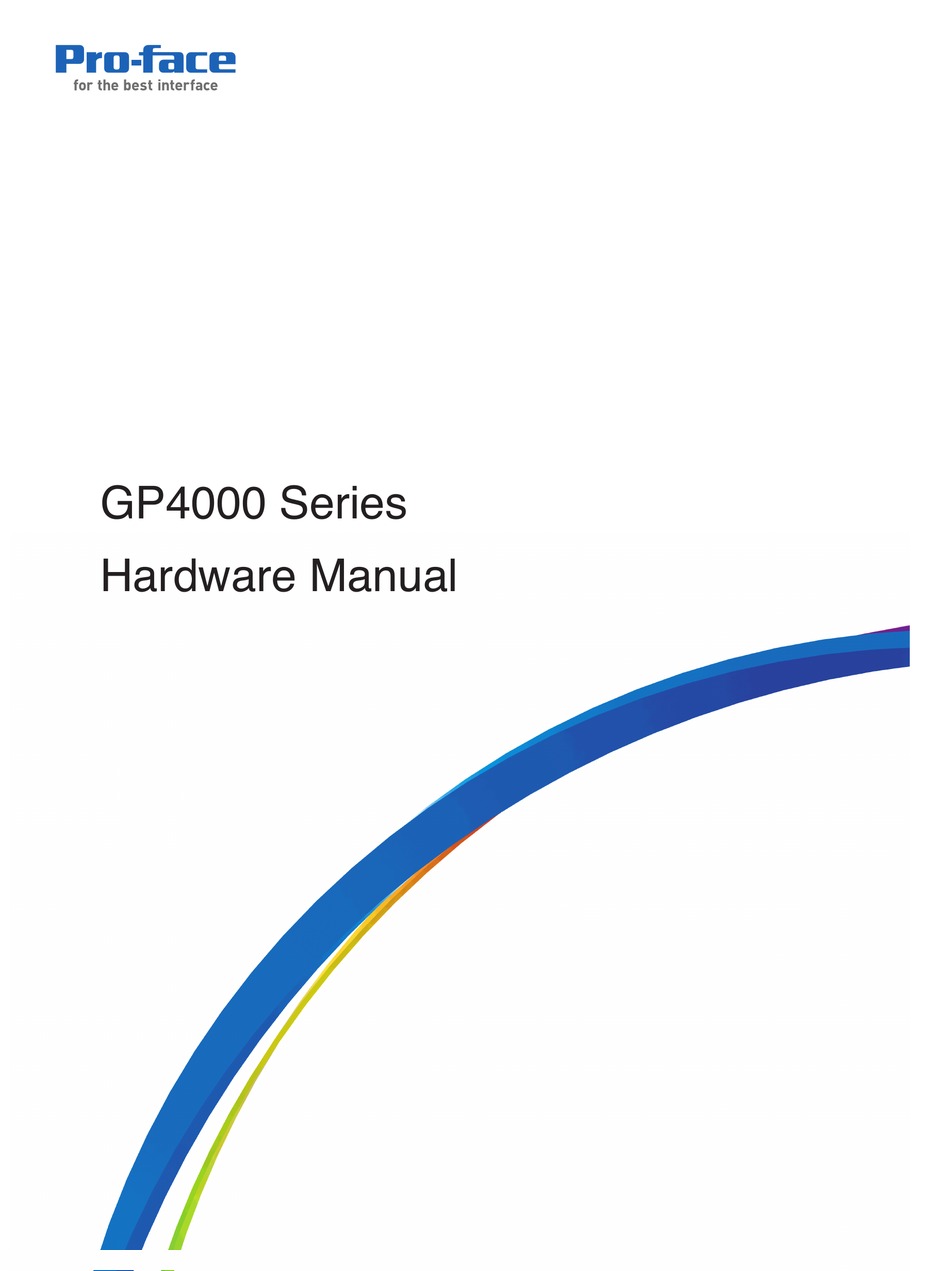

  • Page 1 *3 6HULHV +DUGZDUH 0DQXDO...
  • Page 2 Neither Pro-face nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein.

  • Page 3: Table Of Contents

    GP4000 Series Hardware Manual Table of Contents Safety Information ......About the Book ....... . . Chapter 1 Overview .
  • Page 4 4.4 GP-4500 Series ..........Electrical Specifications .

  • Page 5: Safety Information

    GP4000 Series Hardware Manual Safety Information § Important Information NOTICE Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
  • Page 6 Analog Touch Panel Matrix Touch Panel AC type power supply DC type power supply GP-4201TW/GP-4301TW/GP-4401WW/GP-4501TW Coating model Coating model of GP-4201TW/GP-4301TW/GP-4401WW/GP- 4501TW GP4000 Series Model Names Thank you for purchasing Pro-face’s GP4000 Series unit (hereafter referred to as the "GP unit").
  • Page 7 GP4000 Series Hardware Manual Series Model Name Model GP4000 Series GP-4104 GP4104G1D GP-4100 Series GP4104W1D GP-4105 GP4105G1D GP4105W1D GP-4106 GP4106G1D GP4106W1D GP-4107 GP4107G1D GP4107W1D GP-4200 Series GP-4201T PFXGP4201TAD GP-4201TM (Modular PFXGM4201TAD Type) GP-4201TW PFXGP4201TADW GP-4203T PFXGP4203TAD GP-4300 Series GP-4301T PFXGP4301TAD...
  • Page 8 Global Code A global code is assigned to every Pro-face product as a universal model number. For more information on product models and their matching global codes, please refer to the following URL. http://www.pro-face.com/product/globalcode.html...

  • Page 9: About The Book

    GP-Pro EX Reference Manual GP-Pro EX Maintenance/Troubleshooting Manual GP-Pro EX Device/PLC Connection Manual You can download these technical publications and other technical information from our website "Otasuke Pro!" at http://www.pro-face.com/otasuke/. Product Related Information WARNING UNINTENDED EQUIPMENT OPERATION The application of this product requires expertise in the design and programming of control systems.

  • Page 11: Chapter 1 Overview

    GP4000 Series Hardware Manual Overview KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Overview Overview This chapter describes the GP unit panels and general topics such as package contents and standards. What Is in This Chapter? This chapter contains the following topics: Topic Page GP unit Package Contents...

  • Page 12: Gp Unit Package Contents

    Overview GP unit Package Contents Overview Verify all items listed here are present in your package: GP unit: 1 Installation gasket: 1 (attached to the GP unit) Installation fasteners: 4 per set DC power connector: 1 USB cable clamp Type A: 1 set (1 clip and 1 tie) GP4000 Series Installation Guide: 1 Warning/Caution information: 1 This unit has been carefully packed with special attention to quality.

  • Page 13: Certifications And Standards

    GP4000 Series Hardware Manual Certifications and Standards Introduction Pro-face submitted this product for independent testing and qualification by third- party listing agencies. These agencies have certified this product as meeting the following standards. Agency Certifications The GP unit is certified by the Underwriters Laboratory according to: UL 508 and CSA C22.2 n°142 for Industrial Control Equipment...
  • Page 14 Overview WARNING RISK OF EXPLOSION IN HAZARDOUS LOCATIONS Do not disconnect while circuit is live or unless the area is known to be free of ignitable concentrations. Potential electrostatic charging hazard: wipe the front panel of the terminal with a damp cloth before turning ON. Failure to follow these instructions can result in death, serious injury, or equipment damage.

  • Page 15: Gp Series Of Panels

    GP4000 Series Hardware Manual GP Series of Panels Critical systems, alarms and handling Requirements Critical alarm indicators and system functions require independent and redundant protection hardware and/or mechanical interlocks. When you cycle power, wait at least 10 seconds before restoring the power to the GP unit after it has been turned off.
  • Page 16 Overview Handling the LCD panel The following characteristics are specific to the LCD panel and are considered normal behavior: LCD screen may show unevenness in the brightness of certain images or may appear different when seen from outside the specified viewing angle. Extended shadows, or crosstalk may also appear on the sides of screen images.

  • Page 17: Chapter 2 Device Connectivity

    GP4000 Series Hardware Manual Connectivity KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Device Connectivity Introduction This chapter presents the equipment you can connect to the GP unit. What Is in This Chapter? This chapter contains the following topics: Topic Page System Design Accessories...

  • Page 18: System Design

    Connectivity System Design Introduction The following diagrams represent equipment you can connect to the GP unit. COM1 COM2 GP-4201T RS-232C or RS-422/RS-485 – (see page 19) RS-232C (see page 19) RS-422/RS-485 (see page 23) GP-4201TW RS-485 (isolation) (see page 22) – GP-4203T RS-232C (see page 19) RS-422/RS-485 (see page 23)
  • Page 19 GP4000 Series Hardware Manual RUN Mode Peripherals - COM1: RS-232C NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. GP unit Serial Interface (COM1:RS-232C mode) RS-232C Port RS-232C Cable CA3-CBL232/5M-01 RS-232C Port Mitsubishi PLC Q-Series Link Cable...
  • Page 20 Connectivity RUN Mode Peripherals - COM1: RS-232C or RS-422/RS-485 NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. GP unit Serial Interface (COM1:RS-232C mode) RS-232C Port RS-232C Cable CA3-CBL232/5M-01 RS-232C Port Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01...
  • Page 21 GP4000 Series Hardware Manual Serial Interface(COM1:RS-422 mode) RS-422 Port RS-422 Cable CA3-CBL422/5M-01 Programming Mitsubishi PLC Console Port FX-Series Connection Cable CA3-CBLFX/1M-01 CA3-CBLFX/5M-01 Programming Console Port Mitsubishi PLC A-Series Connection Cable CA3-CBLA-01 RS-422 Port Multi-Link Cable PFXZCBCBML1 Host Controller RS-485 Port MPI Cable PLC etc.
  • Page 22 Connectivity RUN Mode Peripherals - COM1: RS-485 (isolation) NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. GP unit Serial Interface (COM1: RS-485 (isolation) mode) RS-485 (isolation) Port PROFIBUS Cable RS-485 (isolation) Port (Prepared by user) RS-485 Cable...
  • Page 23 GP4000 Series Hardware Manual RUN Mode Peripherals - COM2: RS-422/RS-485 NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. GP unit RS-422 Port Serial Interface(COM2:RS-422 mode) RS-422 Cable CA3-CBL422/5M-01 Programming Mitsubishi PLC Console Port...
  • Page 24 Connectivity RUN Mode Peripherals - COM2: RS-485 (isolation) NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. GP unit Serial Interface (COM2: RS-485 (isolation) mode) RS-485 (isolation) Port PROFIBUS Cable RS-485 (isolation) Port (Prepared by user) RS-485 Cable...
  • Page 25 External Device (RS-422/485) USB/RS-422/485 Conversion Adapter PFXZCBCBCVUSR41 For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/otasuke/). You can connect to this site in GP-Pro EX: from the [Help (H)] menu, click [Connect to Support Site “Otasuke Pro!” (C)].
  • Page 26 Commercial type For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.pro-face.com/otasuke/). You can connect to this site in GP-Pro EX: from the [Help (H)] menu, click [Connect to Support Site “Otasuke Pro!” (C)] There are certain types and models of PCs that are not supported. Please refer to the “GP-Pro EX Reference Manual”...

  • Page 27: Accessories

    GP4000 Series Hardware Manual Accessories Serial Interface Items Product Name Product Number Description RS-232C Cable (5m) CA3-CBL232/5M-01 Connects a host controller to the GP unit. (RS-232C) RS-422 Cable (5m) CA3-CBL422/5M-01 Connects a host controller to the GP unit. (RS-422) Mitsubishi PLC Q-Series Link CA3-CBLLNKMQ-01 Connects Mitsubishi PLC Q-Series (or other Cable (5m)
  • Page 28 (USB mini-B) (1 m) (mini-B) interface on the front side of the operation panel. For supported models, refer to Pro-face’s support site “Otasuke Pro!” (http://www.proface.com/otasuke/). You can connect to this site in GP-Pro EX: from the [Help (H)] menu, click [Connect].
  • Page 29 GP4000 Series Hardware Manual Option Items Product Name Product Number Corresponding GP Description unit 12.1-inch Screen Protection Sheet CA7-DFS12-01 GP-4600 Series Disposable, dirt-resistant sheet for the GP unit screen (5 10.4-inch Screen Protection Sheet PFXZCBDS101 GP-4500 Series sheets/set) 7.5-inch Screen Protection Sheet PFXZCBDS71 GP-4401T 7.0-inch Wide Screen Protection...
  • Page 30 Connectivity Maintenance Options Product Name Product Number Corresponding GP Description unit Installation Fastener PFXZCBAF1 Used to install the GP unit into a GP4000 Series solid panel (4 pieces/ set) 10.4-inch TW models & 12.1-inch PFXZCBWG121 GP-4600 Series Provides dust and moisture Installation Gasket GP-4501TW resistance when GP unit is...

  • Page 31: Chapter 3 Parts Identification And Functions

    GP4000 Series Hardware Manual Parts/Functions KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Parts Identification and Functions Parts Identification and Functions GP-4200 Series Parts Identification Side GP-4200 Series Front Rear Bottom GP-4201T/4203T GP-4201TW Part Name Description Status LED USB (mini-B) Interface Conforms to USB2.0 (mini-B) x 1. Communication Distance: 5 m (16.4 ft) or less.
  • Page 32 Parts/Functions Part Name Description USB (Type A) Interface Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5Vdc+/-5%. Output Current: 500 mA or less. Maximum communication distance: 5 m (16.4 ft). Serial Interface (COM1) GP-4201T: RS-232C/422/485 Serial Interface. (You can switch the communication method via software.) Connector: D-Sub 9 pin (plug) x 1.
  • Page 33 GP4000 Series Hardware Manual GP-4300 Series Parts Identification Side GP-4300 Series Front Right Rear Bottom Part Name Description Status LED USB (Type A) Interface Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5Vdc+/-5%. Output Current: 500 mA or less. Maximum communication distance: 5 m (16.4 ft).
  • Page 34 Parts/Functions Part Name Description Power Plug Connector This lamp lights up when SD Card is inserted. SD Card Access LED NOTE: Do not remove or insert the SD Card when the LED lamp is on. Doing so may damage data on the SD Card. SD Card Interface For information on how to open the cover, and Cover/Replacement Battery...
  • Page 35 GP4000 Series Hardware Manual GP-4400 Series Parts Identification Side GP-4400 Series Front GP-4401T GP-4401WW Right Rear Bottom...
  • Page 36 Parts/Functions Part Name Description Status LED USB (Type A) Interface Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5Vdc+/-5%. Output Current: 500 mA or less. Maximum communication distance: 5 m (16.4 ft). Serial Interface (COM1) RS-232C Serial Interface. Connector: D-Sub 9 pin (plug) x 1.
  • Page 37 GP4000 Series Hardware Manual Ethernet LED operations are as shown below. Color Indicator Description Green (Active) Flashing Data transmission is occurring. No data transmission. Link Green (Link) Data transmission is available in 10BASE-T/100BASE-TX. Active No connection or subsequent transmission failure.
  • Page 38 Parts/Functions GP-4500 Series Parts Identification Side GP-4500 Series Front Rear Bottom Part Name Description Status LED Power Input Terminal Block (AC model), Power Plug Connector (DC model) This lamp lights up when SD Card is inserted. SD Card Access LED NOTE: Do not remove or insert the SD Card when the LED lamp is on.
  • Page 39 GP4000 Series Hardware Manual Part Name Description SD Card Interface For information on how to open the cover, and Cover/Replacement Battery insert or remove the SD Card, refer to SD Card Insertion/Removal (see page 150). Insertion Cover For information on how to open the cover and replace the battery, refer to Replacing the Primary Battery (see page 168).
  • Page 40 Parts/Functions GP-4600 Series Parts Identification Side GP-4600 Series Front Rear Bottom Part Name Description Status LED Power Input Terminal Block (AC model), Power Plug Connector (DC model) This lamp lights up when SD Card is inserted. SD Card Access LED NOTE: Do not remove or insert the SD Card when the LED lamp is on.
  • Page 41 GP4000 Series Hardware Manual Part Name Description SD Card Interface For information on how to open the cover, and Cover/Replacement Battery insert or remove the SD Card, refer to SD Card Insertion/Removal (see page 150). Insertion Cover For information on how to open the cover and replace the battery, refer to Replacing the Primary Battery (see page 168).
  • Page 42 Parts/Functions...

  • Page 43: Chapter 4 Specifications

    GP4000 Series Hardware Manual Specifications KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Specifications Overview This chapter presents the GP unit specifications. What Is in This Chapter? This chapter contains the following sections: Section Topic Page GP-4200 Series GP-4300 Series GP-4400 Series GP-4500 Series GP-4600 Series...

  • Page 44: Gp-4200 Series

    Specifications GP-4200 Series What Is in This Section? This section contains the following topics: Topic Page Electrical Specifications Environmental Specifications Structural Specifications Display Specifications Memory, Clock, and Touch Panel Interface Specifications Specifications of Serial Interface COM1 Specifications of Serial Interface COM2 Dimensions...

  • Page 45: Electrical Specifications

    GP4000 Series Hardware Manual Electrical Specifications Rated Input Voltage 24 Vdc Input Voltage Limits 19.2...28.8 Vdc Voltage Drop 2 ms or less Power Consumption 9.6 W or less When power is not supplied to 5.2 W or less external devices Backlight OFF (Standby Mode) 4.2 W or less Backlight Dimmed (Brightness:...

  • Page 46: Environmental Specifications

    Specifications Environmental Specifications 0...50 °C (32...122 °F) Surrounding Air Temperature -20...60 °C (-4...140 °F) Storage Temperature Surrounding Air and 10%...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) Storage Humidity Dust 0.1 mg/m oz/ft ) or less (non-conductive levels) Pollution Degree For use in Pollution Degree 2 environment...

  • Page 47: Structural Specifications

    GP4000 Series Hardware Manual Structural Specifications Grounding Functional grounding: Grounding resistance of 100Ω, 2mm (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals) Cooling Method Natural air circulation IP65f NEMA #250 TYPE 4X/13 (on the front Structure panel when properly installed in an enclosure)
  • Page 48 Specifications NOTICE STORAGE AND OPERATION OUTSIDE OF SPECIFICATIONS Store the panel in areas where temperatures are within the panel’s specifications. Do not restrict or block the panel’s rear-face ventilation slots. Failure to follow these instructions can result in equipment damage. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to...

  • Page 49: Display Specifications

    GP4000 Series Hardware Manual Display Specifications GP-4201T / GP-4203T GP-4201TW Display Type TFT Color LCD Display Size 3.5” Resolution 320 x 240 pixels (QVGA) Effective Display Area W70.56 x H52.92 mm (W2.78 x H2.08 in.) Display Colors 65,536 colors (No blink) / 16,384 colors (Blink) Backlight White LED (Not user replaceable.

  • Page 50: Memory, Clock, And Touch Panel

    Specifications Memory, Clock, and Touch Panel Memory GP-4201T / GP-4203T GP-4201TW FLASH EPROM 16 MB FLASH EPROM 8 MB Application Memory (including the logic (including the logic program area) program area) Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps) Font Area FLASH EPROM 8 MB (when limit exceeded, uses...
  • Page 51 GP4000 Series Hardware Manual When used for backup: Approximately 100 days, with a fully charged battery. Approximately 6 days, with a half-charged battery. Touch Panel Touch Panel Type Resistive Film (analog) Touch Panel Resolution 1,024 x 1,024 Touch Panel Service Life 1 million times or more...

  • Page 52: Interface Specifications

    Specifications Interface Specifications Serial Interface COM1 GP-4201T GP-4201TW GP-4203T Asynchronous RS-232C / RS-422 / RS-232C RS-485 (isolation) Transmission RS-485 Data Length 7 or 8 bits Stop Bit 1 or 2 bits Parity None, odd or even Data Transmission 2,400...115,200 bps, 2,400...115,200 bps 2,400...115,200 Speed...

  • Page 53: Specifications Of Serial Interface Com1

    GP4000 Series Hardware Manual Specifications of Serial Interface COM1 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 54 Specifications Pin Connection RS-422/RS-485 Signal Name Direction Meaning Input Receive Data A (+) Input Receive Data B (-) Output Send Data A (+) Output Data Terminal Ready A (+) Signal Ground Input Send Possible B (-) Output Send Data B (-) Input Send Possible A (+) Output...
  • Page 55 GP4000 Series Hardware Manual NOTICE EQUIPMENT DAMAGE Use only the rated current. Failure to follow these instructions can result in equipment damage. Interfit bracket is #4-40 (UNC). Recommendations: Cable Connector: XM2D-0901 manufactured by OMRON Corporation. Cable Cover: XM2S-0913 manufactured by OMRON Corporation. Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation.
  • Page 56 Specifications CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports. Securely attach communication cables to the panel wall or cabinet. Use only D-Sub 9 pin cables with a locking tab in good condition. Failure to follow these instructions can result in injury or equipment damage.

  • Page 57: Specifications Of Serial Interface Com2

    GP4000 Series Hardware Manual Specifications of Serial Interface COM2 Introduction The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit. DANGER ELECTRIC SHOCK When using the SG terminal to connect an external device to the panel: Verify that a short-circuit loop is not created when you set up the system.

  • Page 58: Dimensions

    Specifications Dimensions External Dimensions Front Right Side...
  • Page 59 GP4000 Series Hardware Manual Installation with Installation Fasteners Left Side Front Right Side Bottom...
  • Page 60 Specifications Dimensions with Cables: GP-4201T 2.87 2.32 Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 61 GP4000 Series Hardware Manual Dimensions with Cables: GP-4201TW 2.87 2.32 Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use.
  • Page 62 Specifications Dimensions with Cables: GP-4203T 2.874 2.323 MPI Cable 2.638 Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use.
  • Page 63 GP4000 Series Hardware Manual Panel Cut Dimensions Create a panel cut and insert the GP unit into the opening from the front. 118.5 mm (+1, -0 92.5 mm (+1, -0 mm) 1.6...5 mm (0.06...0.2 3 mm (0.12 in.) (3.64 in. [+0.04, -0 in.]) maximum (4.67 in [+0.04, -0 in.])

  • Page 64: Gp-4300 Series

    Specifications GP-4300 Series What Is in This Section? This section contains the following topics: Topic Page Electrical Specifications Environmental Specifications Structural Specifications Display Specifications Memory, Clock, and Touch Panel Interface Specifications Specifications of Serial Interface COM1 Specifications of Serial Interface COM2 Dimensions...

  • Page 65: Electrical Specifications

    GP4000 Series Hardware Manual Electrical Specifications Rated Input Voltage 24 Vdc Input Voltage Limits 19.2...28.8 Vdc Voltage Drop 5 ms or less Power Consumption 10.5 W or less When power is not supplied to 6.5 W or less external devices Backlight OFF (Standby Mode) 4.5 W or less Backlight Dimmed (Brightness:...

  • Page 66: Environmental Specifications

    Specifications Environmental Specifications GP-4301T / GP-4303T GP-4301TW 0...55 °C (32 °F...131 °F) 0...50 °C (32...122 °F) Surrounding Air Temperature -20...60 °C (-4...140 °F) Storage Temperature Surrounding Air and 10...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) Storage Humidity Dust 0.1 mg/m...

  • Page 67: Structural Specifications

    GP4000 Series Hardware Manual Structural Specifications Grounding Functional grounding: Grounding resistance of 100 Ω, 2 mm (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals) Cooling Method Natural air circulation IP65f NEMA #250 TYPE 4X/13 (on the front Structure panel when properly installed in an enclosure)
  • Page 68 Specifications NOTICE STORAGE AND OPERATION OUTSIDE OF SPECIFICATIONS Store the panel in areas where temperatures are within the panel’s specifications. Do not restrict or block the panel’s rear-face ventilation slots. Failure to follow these instructions can result in equipment damage. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to...

  • Page 69: Display Specifications

    GP4000 Series Hardware Manual Display Specifications GP-4301T / GP-4303T GP-4301TW Display Type TFT Color LCD Display Size 5.7” Resolution 320 x 240 pixels (QVGA) Effective Display Area W115.2 x H86.4 mm (W4.54 x H3.40 in.) Display Colors 65,536 colors (No blink) / 16,384 colors (Blink) Backlight White LED (Not user replaceable.

  • Page 70: Memory, Clock, And Touch Panel

    Specifications Memory, Clock, and Touch Panel Memory GP-4301T / GP-4303T GP-4301TW FLASH EPROM 16 MB FLASH EPROM 8 MB Application Memory (including the logic (including the logic program area) program area) Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps Font Area FLASH EPROM 8 MB (when this limit exceeded,...
  • Page 71 GP4000 Series Hardware Manual Clock ± 65 seconds per month (deviation at room temperature and power is OFF). Variations in operating conditions and battery life can cause clock deviations from - 380 to +90 seconds per month. For systems where this level of precision is insufficient, the user should monitor and make adjustments when required.

  • Page 72: Interface Specifications

    Specifications Interface Specifications Serial Interface COM1 Asynchronous RS-232C Transmission Data Length 7 or 8 bits Stop Bit 1 or 2 bits Parity None, odd or even Data Transmission Speed 2,400...115,200 bps Connector D-Sub 9 pin (plug) Serial Interface COM2 GP-4301T / GP-4301TW GP-4303T Asynchronous RS-422 / RS-485...

  • Page 73: Specifications Of Serial Interface Com1

    GP4000 Series Hardware Manual Specifications of Serial Interface COM1 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 74 Specifications Recommendations: Cable Connector: XM2D-0901 manufactured by OMRON Corporation. Cable Cover: XM2S-0913 manufactured by OMRON Corporation. Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation. CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports.

  • Page 75: Specifications Of Serial Interface Com2

    GP4000 Series Hardware Manual Specifications of Serial Interface COM2 Introduction The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit. DANGER ELECTRIC SHOCK When using the SG terminal to connect an external device to the panel: Verify that a short-circuit loop is not created when you set up the system.
  • Page 76 Specifications GP-4303T: D-Sub 9 pin socket connector via an RS-485, PROFIBUS, or MPI cable. Pin Connection RS-485 (isolation) Signal Name Direction Meaning no connection no connection Line A Input/Output Data A (+) RS(RTS) Output Request to Send Signal Ground +5V±5% External Output no connection Line B Input/Output...

  • Page 77: Dimensions

    GP4000 Series Hardware Manual Dimensions External Dimensions 155.5 6.12 59.5 2.34 169.5 6.67 0.20 (GP-4301T) Front Right Side...
  • Page 78 Specifications Installation with Installation Fasteners Left Side Front Right Side Bottom...
  • Page 79 GP4000 Series Hardware Manual Dimensions with Cables: GP-4301T/GP-4301TW 2.44 1.34 Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use.
  • Page 80 Specifications Dimensions with Cables: GP-4303T 2.44 1.34 Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 81 GP4000 Series Hardware Manual Panel Cut Dimensions Create a panel cut and insert the GP unit into the opening from the front. 156 mm (+1/-0) mm 123.5 mm (+1, -0 mm) 1.6...5 mm 3 mm (0.12 in.) (6.14 in [+0.04, -0 in.]) (4.86 in [+0.04, -0 in.]) (0.06...0.2 in.) maximum...

  • Page 82: Gp-4400 Series

    Specifications GP-4400 Series What Is in This Section? This section contains the following topics: Topic Page Electrical Specifications Environmental Specifications Structural Specifications Display Specifications Memory, Clock, and Touch Panel Interface Specifications Specifications of Serial Interface COM1 Specifications of Serial Interface COM2 Dimensions...

  • Page 83: Electrical Specifications

    GP4000 Series Hardware Manual Electrical Specifications Rated Input Voltage 24 Vdc Input Voltage Limits 19.2...28.8 Vdc Voltage Drop 5 ms or less Power Consumption 12 W or less When power is not supplied to 8 W or less external devices Backlight OFF (Standby Mode) 5 W or less Backlight Dimmed (Brightness:...

  • Page 84: Environmental Specifications

    Specifications Environmental Specifications GP-4401T GP-4401WW 0...55 °C (32...131 °F) 0...50 °C (32...122 °F) Surrounding Air Temperature -20...60 °C (-4...140 °F) Storage Temperature Surrounding Air and 10...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) Storage Humidity Dust 0.1 mg/m oz/ft...

  • Page 85: Structural Specifications

    GP4000 Series Hardware Manual Structural Specifications Grounding Functional grounding: Grounding resistance of 100 Ω, 2 mm (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals) Cooling Method Natural air circulation IP65f NEMA #250 TYPE 4X/13 (on the front panel Structure when properly installed in an enclosure) External Dimensions...
  • Page 86 Specifications NOTICE STORAGE AND OPERATION OUTSIDE OF SPECIFICATIONS Store the panel in areas where temperatures are within the panel’s specifications. Do not restrict or block the panel’s rear-face ventilation slots. Failure to follow these instructions can result in equipment damage. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to...

  • Page 87: Display Specifications

    GP4000 Series Hardware Manual Display Specifications GP-4401T GP-4401WW Display Type TFT Color LCD Display Size 7.5” 7.0” Resolution 640 x 480 pixels (VGA) 800 x 480 pixels (WVGA) Effective Display Area W153.7 x H115.8 mm W152.4 x H91.44 mm (W6.05 x H4.56 in.) (W6.0 x H3.6 in.) Display Colors 65,536 colors (No blink) / 16,384 colors Blink)

  • Page 88: Memory, Clock, And Touch Panel

    Specifications Memory, Clock, and Touch Panel Memory GP-4401T GP-4401WW FLASH EPROM 32 MB FLASH EPROM 16 MB Application Memory (including the logic (including the logic program area) program area) Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps) Font Area FLASH EPROM 8 MB (when limit exceeded, uses application memory)

  • Page 89: Interface Specifications

    GP4000 Series Hardware Manual Interface Specifications Serial Interface COM1 Asynchronous Transmission RS-232C Data Length 7 or 8 bits Stop Bit 1 or 2 bits Parity None, odd or even Data Transmission Speed 2,400...115,200 bps Connector D-Sub 9 pin (plug) Serial Interface COM2 Asynchronous Transmission RS-422 / RS-485 Data Length...

  • Page 90: Specifications Of Serial Interface Com1

    Specifications Specifications of Serial Interface COM1 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 91 GP4000 Series Hardware Manual Interfit bracket is #4-40 (UNC). Recommendations: Cable Connector: XM2D-0901 manufactured by OMRON Corporation. Cable Cover: XM2S-0913 manufactured by OMRON Corporation. Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation. CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports.

  • Page 92: Specifications Of Serial Interface Com2

    Specifications Specifications of Serial Interface COM2 Introduction The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit. DANGER ELECTRIC SHOCK When using the SG terminal to connect an external device to the panel: Verify that a short-circuit loop is not created when you set up the system.

  • Page 93: Dimensions

    GP4000 Series Hardware Manual Dimensions External Dimensions 8.03 2.36 8.58 0.20 (GP-4401T) Front Right Side...
  • Page 94 Specifications Installation with Installation Fasteners 6.54 8.03 2.36 0.20 8.58 6.54 (GP-4401T) Left Side Front Right Side Bottom...
  • Page 95 GP4000 Series Hardware Manual Dimensions with Cables 0.91 (GP-4401T) Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 96 Specifications Panel Cut Dimensions Create a panel cut and insert the GP unit into the opening from the front. 204.5 mm (+1, -0 159.5 mm (+1, -0 mm) 1.6...5 mm 3 mm (0.12 in.) (6.28 in. [+0.04, -0 in.]) (0.06...0.2 in.) maximum (8.05 in.

  • Page 97: Gp-4500 Series

    GP4000 Series Hardware Manual GP-4500 Series What Is in This Section? This section contains the following topics: Topic Page Electrical Specifications Environmental Specifications Structural Specifications Display Specifications Memory, Clock, and Touch Panel Interface Specifications Specifications of Serial Interface COM1 Specifications of Serial Interface COM2 Dimensions...

  • Page 98: Electrical Specifications

    Specifications Electrical Specifications DC Model AC Model Rated Input Voltage 24 Vdc 100...240 Vac Input Voltage Limits 19.2...28.8 Vdc 85...264 Vac Rated Frequency 50/60 Hz Rated Frequency Range 47...63 Hz Voltage Drop 10 ms or less 1 cycle or less (Voltage drop interval must be 1 second or more) Power Consumption...

  • Page 99: Environmental Specifications

    GP4000 Series Hardware Manual Environmental Specifications DC Model AC Model GP-4501T / GP-4503T GP-4501TW 0...55 °C (32...131 °F) 0...50 °C (32...122 °F) 0...55 °C (32...131 °F) Surrounding Air Temperature -20...60 °C (-4...140 °F) Storage Temperature 10...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) Surrounding Air and Storage Humidity Dust...

  • Page 100: Structural Specifications

    Specifications Structural Specifications GP-4501T / GP-4503T GP-4501TW Grounding Functional grounding: Grounding resistance of 100Ω, (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals) Cooling Method Natural air circulation IP65f NEMA #250 TYPE 4X/13 (on the front panel Structure when properly installed in an enclosure) External Dimensions...
  • Page 101 GP4000 Series Hardware Manual NOTICE STORAGE AND OPERATION OUTSIDE OF SPECIFICATIONS Store the panel in areas where temperatures are within the panel’s specifications. Do not restrict or block the panel’s rear-face ventilation slots. Failure to follow these instructions can result in equipment damage. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to...

  • Page 102: Display Specifications

    Specifications Display Specifications GP-4501T / GP-4503T GP-4501TW Display Type TFT Color LCD Display Size 10.4” Resolution 640 x 480 pixels (VGA) Effective Display Area W211.2 x H158.4 mm (W8.31 x H6.24 in.) Display Colors 65,536 colors (No blink) / 16,384 colors (Blink) Backlight White LED (Not user replaceable.

  • Page 103: Memory, Clock, And Touch Panel

    GP4000 Series Hardware Manual Memory, Clock, and Touch Panel Memory GP-4501T / GP-4503T GP-4501TW FLASH EPROM 32 MB FLASH EPROM 16 MB Application Memory (including the logic (including the logic program area) program area) Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps) Font Area FLASH EPROM 8 MB (when limit exceeded, uses...

  • Page 104: Interface Specifications

    Specifications Interface Specifications Serial Interface COM1 Asynchronous Transmission RS-232C Data Length 7 or 8 bits Stop Bit 1 or 2 bits Parity None, odd or even Data Transmission Speed 2,400...115,200 bps Connector D-Sub 9 pin (plug) Serial Interface COM2 GP-4501T / GP-4501TW GP-4503T Asynchronous Transmission RS-422 / RS-485...

  • Page 105: Specifications Of Serial Interface Com1

    GP4000 Series Hardware Manual Specifications of Serial Interface COM1 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 106 Specifications Recommendations: Cable Connector: XM2D-0901 manufactured by OMRON Corporation. Cable Cover: XM2S-0913 manufactured by OMRON Corporation. Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation. CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports.

  • Page 107: Specifications Of Serial Interface Com2

    GP4000 Series Hardware Manual Specifications of Serial Interface COM2 Introduction The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit. DANGER ELECTRIC SHOCK When using the SG terminal to connect an external device to the panel: Verify that a short-circuit loop is not created when you set up the system.
  • Page 108 Specifications GP-4503T: D-Sub 9 pin socket connector via an RS-485, PROFIBUS, or MPI cable. Pin Connection RS-485 (isolation) Signal Name Direction Meaning no connection no connection Line A Input/Output Data A (+) RS(RTS) Output Request to Send Signal Ground +5V±5% External Output no connection Line B Input/Output...

  • Page 109: Dimensions

    GP4000 Series Hardware Manual Dimensions External Dimensions: GP-4501T / GP-4503T Front Right Side...
  • Page 110 Specifications External Dimensions: GP-4501TW Front Right Side...
  • Page 111 GP4000 Series Hardware Manual Installation with Installation Fasteners: GP-4501T / GP-4503T Left Side Front Right Side Bottom...
  • Page 112 Specifications Installation with Installation Fasteners: GP-4501TW Left Side Front Right Side Bottom...
  • Page 113 GP4000 Series Hardware Manual Dimensions with Cables: GP-4501T Left Side Rear Right Side Bottom DC type units have power supply terminals NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use.
  • Page 114 Specifications Dimensions with Cables: GP-4501TW Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 115 GP4000 Series Hardware Manual Dimensions with Cables: GP-4503T Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 116 Specifications Panel Cut Dimensions Create a panel cut and insert the GP unit into the opening from the front. GP-4501T 259 mm (+1, -0 mm) 201 mm (+1, -0 mm) 1.6...5 mm 3 mm (0.12 in.) GP-4503T (10.2 in. [+0.04, -0 in.]) (7.91 in.

  • Page 117: Gp-4600 Series

    GP4000 Series Hardware Manual GP-4600 Series What Is in This Section? This section contains the following topics: Topic Page Electrical Specifications Environmental Specifications Structural Specifications Display Specifications Memory, Clock, and Touch Panel Interface Specifications Specifications of Serial Interface COM1 Specifications of Serial Interface COM2 Dimensions...

  • Page 118: Electrical Specifications

    Specifications Electrical Specifications DC Model AC Model Rated Input Voltage 24 Vdc 100...240 Vac Input Voltage Limits 19.2...28.8 Vdc 85...264 Vac Rated Frequency 50/60 Hz Rated Frequency Range 47...63 Hz Voltage Drop 10 ms or less 1 cycle or less (Voltage drop interval must be 1 second or more) Power Consumption...

  • Page 119: Environmental Specifications

    GP4000 Series Hardware Manual Environmental Specifications DC Model AC Model 0...55 °C (32...131 °F) Surrounding Air Temperature -20...60 °C (-4...140 °F) Storage Temperature Surrounding Air and 10...90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less) Storage Humidity Dust 0.1 mg/m oz/ft...

  • Page 120: Structural Specifications

    Specifications Structural Specifications Grounding Functional grounding: Grounding resistance of 100 Ω, 2 mm (AWG 14) or thicker wire, or your country’s applicable standard. (Same for FG and SG terminals) Cooling Method Natural air circulation IP65f NEMA #250 TYPE 4X/13 (on the front Structure panel when properly installed in an enclosure)
  • Page 121 GP4000 Series Hardware Manual NOTICE STORAGE AND OPERATION OUTSIDE OF SPECIFICATIONS Store the panel in areas where temperatures are within the panel’s specifications. Do not restrict or block the panel’s rear-face ventilation slots. Failure to follow these instructions can result in equipment damage. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to...

  • Page 122: Display Specifications

    Specifications Display Specifications Display Type TFT Color LCD Display Size 12.1” Resolution 800 x 600 pixels (SVGA) Effective Display Area W246.0 x H184.5 mm (W9.69 x H7.26 in.) Display Colors 65,536 colors (No blink) / 16,384 colors (Blink) Backlight White LED (Not user replaceable. When replacement is required, contact your local distributor.) Backlight Service Life...

  • Page 123: Memory, Clock, And Touch Panel

    GP4000 Series Hardware Manual Memory, Clock, and Touch Panel Memory FLASH EPROM 32 MB (including logic program area) Application Memory Logic Program Area FLASH EPROM 132 KB (Equivalent to 15,000 steps) Font Area FLASH EPROM 8 MB (when limit exceeded, uses application memory) Data Backup SRAM 320 KB (Replaceable lithium battery for...

  • Page 124: Interface Specifications

    Specifications Interface Specifications Serial Interface COM1 Asynchronous Transmission RS-232C Data Length 7 or 8 bits Stop Bit 1 or 2 bits Parity None, odd or even Data Transmission Speed 2,400...115,200 bps Connector D-Sub 9 pin (plug) Serial Interface COM2 GP-4601T GP-4603T Asynchronous Transmission RS-422 / RS-485...

  • Page 125: Specifications Of Serial Interface Com1

    GP4000 Series Hardware Manual Specifications of Serial Interface COM1 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 126 Specifications Interfit bracket is #4-40 (UNC). Recommendations: Cable Connector: XM2D-0901 manufactured by OMRON Corporation. Cable Cover: XM2S-0913 manufactured by OMRON Corporation. Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation. CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports.

  • Page 127: Specifications Of Serial Interface Com2

    GP4000 Series Hardware Manual Specifications of Serial Interface COM2 Introduction NOTE: For instructions on how to connect to other devices, always refer to the “GP- Pro EX Device/PLC Connection Manual”. The serial port is not isolated. The SG (signal ground) and FG (frame ground) terminals are connected inside the GP unit.
  • Page 128 Specifications CAUTION LOSS OF COMMUNICATION All connections to the communication ports must not put excessive stress on the ports. Securely attach communication cables to the panel wall or cabinet. Use only D-Sub 9 pin cables with a locking tab in good condition. Failure to follow these instructions can result in injury or equipment damage.

  • Page 129: Dimensions

    GP4000 Series Hardware Manual Dimensions External Dimensions 11.85 12.40 2.20 0.20 (GP-4601T) Front Right Side...
  • Page 130 Specifications Installation with Installation Fasteners 10.24 11.85 2.20 12.40 0.20 10.24 (GP-4601T) Left Side Front Right Side Bottom...
  • Page 131 GP4000 Series Hardware Manual Dimensions with Cables: GP-4601T Left Side Rear Right Side Bottom DC type units have power supply terminals NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use.
  • Page 132 Specifications Dimensions with Cables: GP-4603T Left Side Rear Right Side Bottom NOTE: All the above values are designed with cable bending in mind. The dimensions given here are representative values depending on the type of connection cable in use. Therefore, these values are intended for reference only.
  • Page 133 GP4000 Series Hardware Manual Panel Cut Dimensions Create a panel cut and insert the GP unit into the opening from the front. 301.5 mm (+1, -0 mm) 227.5 mm (+1, -0 mm) 1.6...5 mm 3 mm (0.12 in.) (11.87 [+0.04, -0 in.]) (8.96 in.
  • Page 134 Specifications...

  • Page 135: Chapter 5 Installation And Wiring

    GP4000 Series Hardware Manual Installation and Wiring KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Installation and Wiring What Is in This Chapter? This chapter contains the following sections: Section Topic Page Installation Wiring Principles SD Card Insertion/Removal USB Cable Clamp...

  • Page 136: Installation

    Installation and Wiring Installation Installation Procedures Introduction The installation fasteners are required when installing the GP unit. Mount the GP unit in an enclosure that provides a clean, dry, robust and controlled environment. (IP65, Type 1, Type 4X [Indoor Use Only] or Type 13 Enclosure.) Installation Requirements Check that the installation wall or cabinet’s surface is flat, in good condition and has no jagged edges.
  • Page 137 GP4000 Series Hardware Manual When installing the GP unit in a slanted position, the GP unit face should not incline more than 30°. When installing the GP unit in a slanted position with an incline more than 30°, the ambient temperature must not exceed 40 °C (104 °F).
  • Page 138 Installation and Wiring Step Action Place the GP unit on a clean and level surface with the display facing downward. Check that the GP unit’s gasket is seated securely into the gasket’s groove, which runs around the perimeter of the GP unit frame. Cut a hole in the installation panel as defined by the GP unit’s panel cutout dimensions.
  • Page 139 GP4000 Series Hardware Manual Step Action Insert each of the fasteners shown below. Make sure you pull the fastener back until it is flush with the rear of the attachment hole insert. Use a Phillips screwdriver to tighten each fastener screw and secure the GP unit in place.
  • Page 140 Installation and Wiring Removal Procedure Step Action Loosen the installation fasteners (4) from the GP unit. Remove the GP unit slowly from the panel while pressing the projections on the top of the GP unit. Projections NOTE: You could damage the GP unit if you try and remove it without holding down the projections.

  • Page 141: Wiring Principles

    GP4000 Series Hardware Manual Wiring Principles Overview This section presents the GP unit wiring principles. What Is in This Section? This section contains the following topics: Topic Page Connecting the AC Power Cord Connecting the DC Power Cord Connecting the Power Supply Grounding...

  • Page 142: Connecting The Ac Power Cord

    Installation and Wiring Connecting the AC Power Cord WARNING EXCESSIVE ELECTROMAGNETIC INTERFERENCE When the functional ground (FG) terminal is connected, be sure the wire is grounded. Not grounding the GP unit can result in excessive Electromagnetic Interference (EMI). Grounding is required to meet EMC level immunity. Remove power before wiring the GP unit’s power terminals.
  • Page 143 GP4000 Series Hardware Manual How to connect the AC Power Cord Step Action Confirm the power cord is not connected to the power supply. Open the terminal strip’s clear plastic cover. Remove screws from the L, N, and FG (functional ground) terminals. Attach the ring terminals and reinsert the screws.

  • Page 144: Connecting The Dc Power Cord

    Installation and Wiring Connecting the DC Power Cord WARNING EXCESSIVE ELECTROMAGNETIC INTERFERENCE When the functional ground (FG) terminal is connected, be sure the wire is grounded. Not grounding the GP unit can result in excessive Electromagnetic Interference (EMI). Grounding is required to meet EMC level immunity. Remove power before wiring the GP unit’s power terminals.
  • Page 145 Grounded terminal connected to the panel chassis. NOTE: The DC power supply connector (plug) for GP-4200 Series / GP-4300 Series / GP-4400 Series is PFXZCBCNDC1 (manufactured by Pro-face). The DC power supply connector (plug) for GP-4500 Series / GP-4600 Series is PFXZCBCNDC2 (manufactured by Pro-face).
  • Page 146 Installation and Wiring Step Action Insert each pin terminal into its corresponding hole. Release the Opening button to clamp the pin in place. GP-4200 Series / GP-4300 Series / GP-4400 Series Opening Button DC Power Cord (24V) (0V) GP-4500 Series / GP-4600 Series Opening Button After inserting all three pins, insert the power plug into the power connector on the GP unit.

  • Page 147: Connecting The Power Supply

    GP4000 Series Hardware Manual Connecting the Power Supply Precautions You must use a 24 Vdc input unit with a Class 2 power supply. To increase the electromagnetic noise resistance, make sure you twist the ends of the power cord wires before connecting them to the power plug or ring terminal. The GP unit’s power supply cord should not be bundled with or kept close to main circuit lines (high voltage, high current), or input/output signal lines.
  • Page 148 Installation and Wiring Ground the surge absorber (E1) separately from the GP unit (E2). Select a surge absorber that has a maximum circuit voltage greater than that of the peak voltage of the power supply. If the supplied voltage exceeds the GP unit range, connect a constant voltage transformer.

  • Page 149: Grounding

    GP4000 Series Hardware Manual Grounding Exclusive Grounding When supplying power to the GP unit, separate the input/output and power lines as shown below. Connect the frame ground (FG) terminal on the power plug to an exclusive ground. Precautions Electromagnetic Interference (EMI) can be created if the devices are improperly grounded.

  • Page 150: Sd Card Insertion/Removal

    Installation and Wiring SD Card Insertion/Removal What Is in This Section? This section contains the following topics: Topic Page Introduction Inserting the SD Card Before Removing the SD Card Removing the SD Card SD Card Data Backup...

  • Page 151: Introduction

    GP4000 Series Hardware Manual Introduction NOTICE LOSS OF DATA When using the GP unit and a SD Card, observe the following to avoid losing valuable data: Since accidental data loss can occur at any time, back up GP unit screen and SD Card data regularly.

  • Page 152: Inserting The Sd Card

    Installation and Wiring Inserting the SD Card NOTE: As shown in the image below (example on the left-hand side), you can set the Write-Control Tab to prevent write operations to the SD Card. Push the tab up, as shown in the example on the right-hand side, to release the lock and enable writing to the SD Card.
  • Page 153 GP4000 Series Hardware Manual Step Action Insert the SD Card into the SD Card interface, and push until you hear it “click”. Close the SD Card cover.

  • Page 154: Before Removing The Sd Card

    Installation and Wiring Before Removing the SD Card Do not remove the SD Card while it is being accessed. Doing so could corrupt the data on the SD Card. Before removing the SD Card from the GP unit, make sure you run the following procedure to stop SD Card operation.

  • Page 155: Removing The Sd Card

    GP4000 Series Hardware Manual Removing the SD Card Step Action Make sure the SD Card Access LED is off. SD Card Access LED Push down the tab on the SD Card cover, then pull open the cover. Push the SD Card once to release, and pull out the card. After removing the card, close the cover.

  • Page 156: Sd Card Data Backup

    Installation and Wiring SD Card Data Backup To make your backups, you can either insert the SD Card directly into the SD Card interface on your computer, or use a commercially available SD Card reader.

  • Page 157: Usb Cable Clamp

    GP4000 Series Hardware Manual USB Cable Clamp Overview This section presents the USB cable clamp. What Is in This Section? This section contains the following topics: Topic Page USB Cable Clamp for USB (Type A) USB Holder for USB (mini-B)

  • Page 158: Usb Cable Clamp For Usb (Type A)

    Installation and Wiring USB Cable Clamp for USB (Type A) Introduction When using a USB device, attaching a USB cable clamp to the USB interface to prevent the USB cable from being disconnected. WARNING RISK OF EXPLOSION IN HAZARDOUS LOCATIONS Confirm that the USB cable has been attached with the USB cable clamp before using the USB interface.
  • Page 159 You can substitute the tie provided with PFXZCBCLUSA1 (manufactured by Pro-face, or other commercially available ties with a width of 4.8 mm [0.19 in.] and thickness of 1.3 mm [0.05 in.].

  • Page 160: Usb Holder For Usb (Mini-B)

    Installation and Wiring USB Holder for USB (mini-B) Introduction When using a USB device, you can attach a USB holder to the USB (mini-B) interface to prevent the USB cable from being disconnected. WARNING RISK OF EXPLOSION IN HAZARDOUS LOCATIONS Confirm that the USB cable has been attached with the USB holder before using the USB interface.
  • Page 161 GP4000 Series Hardware Manual USB holder USB cable...
  • Page 162 Installation and Wiring...

  • Page 163: Chapter 6 Maintenance

    GP4000 Series Hardware Manual KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Maintenance Overview This chapter explains how to maintain your GP unit. What Is in This Chapter? This chapter contains the following topics: Topic Page Regular Cleaning Replacing the Installation Gasket Periodic Check Points Replacing the Primary Battery...

  • Page 164: Regular Cleaning

    Regular Cleaning Cleaning the display NOTICE EQUIPMENT DAMAGE Power off the GP unit before cleaning it. Do not use hard or pointed objects to operate the touch panel as you may damage the panel surface. Do not use paint thinner, organic solvents, or a strong acid compound to clean the unit.

  • Page 165: Replacing The Installation Gasket

    GP4000 Series Hardware Manual Replacing the Installation Gasket Overview The installation gasket provides protection against dust and moisture. NOTICE GASKET AGING Inspect the gasket periodically as required by your operating environment to keep the initial IP level. Change the gasket at least once a year, or as soon as scratches or dirt become visible.
  • Page 166 Stage Description The upper surface of the gasket should protrude approximately 2.5 mm (0.1 in.) from the groove. Check the gasket is inserted correctly before installing the GP unit into a panel. The gasket must be inserted correctly into the groove for IP65f moisture resistance for the GP unit.

  • Page 167: Periodic Check Points

    GP4000 Series Hardware Manual Periodic Check Points Operation Environment Is the operating temperature within the allowable range? Refer to Environmental Specifications (see page 46), (see page 66), (see page 84), (see page 99), (see page 119). Is the operating humidity within the specified range? (10%RH to 90%RH, dry bulb temperature of 39 °C [102.2 °F] or less) Is the operating atmosphere free of corrosive gasses? When the GP unit is inside a panel, the ambient environment refers to the interior of...

  • Page 168: Replacing The Primary Battery

    The primary battery replacement time (within a month after the alarm occurs) is only a guideline. When backup SRAM data and clock data is lost after the alarm occurs, Pro-face does not perform data recovery/retrieval. Pro-face does not accept any responsibility for the loss of data.
  • Page 169 GP4000 Series Hardware Manual Step Action Disconnect the power supply from the GP unit. Touch the housing or ground connection (not the power supply) to discharge any electrostatic charge from your body. Open the SD Card Interface Cover by pressing its tab. Next, open the Replacement Battery Insertion Cover by pressing its tab.
  • Page 170 Step Action First close the replacement battery cover, then close the SD Card Interface Cover. NOTE: Make sure the cables are inserted completely inside the enclosure. Otherwise, you can damage the cables when you close the cover. Reconnect the power supply to the GP unit.

This manual is also suitable for:

Gp4104w1dGp4105g1dGp4106w1dGp4107g1dGp4107w1dPfxgp4201tad ... Show all

Table of Contents
