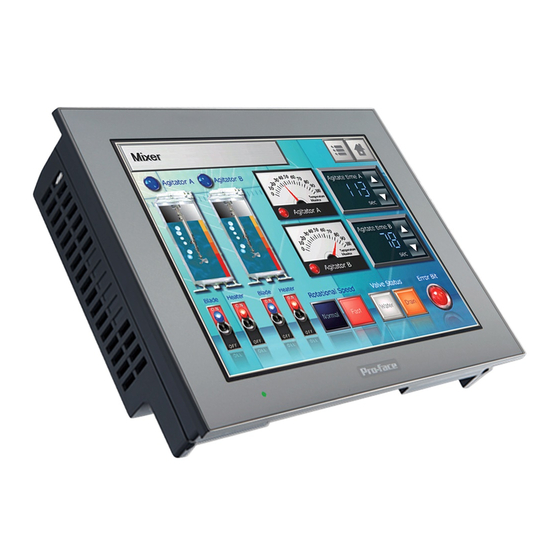

- Page 1 PFXGP4501TAAC http://www.axcontrol.com/automation/pro-face/gp-4000/PFXGP4501TAAC Pro-face Xycom GP4000 PFXGP4501TAAC Pro-face Xycom GP-450xT GP450xT Touch Screen Operator Interface 10.4 TFT Analog Color LCD Display with Conformal Coating. Call Now! 1-800-991-7026 sales@axcontrol.com See Also: http://www.axcontrol.com/automation/pro-face/gp-4000...
-
Page 2: Rear Mount Model
GP4000 Series Hardware Manual KanpaiHardwareManual 10/2011 GP4000 Series Hardware Manual Rear Mount Model Overview This chapter presents the Rear Mount Model. What Is in This Chapter? This chapter contains the following sections. Section Topic Page Package Contents Certifications and Standards Options Items/Maintenance Option Parts Identification and Functions Structural Specifications... -
Page 3: Package Contents
Package Contents Verify all items listed here are present in your package: GP unit: 1 DC power supply connector: 1 USB cable clamp Type A: 1 set (1 clip and 1 tie) Installation gasket: 1 set (8 per set) Installation fasteners: 2 per set (attached to the top and bottom surfaces of the GP unit) Installation screws: 4 per set (attached to the top and bottom surfaces of the GP unit) GP4000 Series Rear Mount Model Installation Guide: 1 Warning/Caution Information: 1... -
Page 4: Certifications And Standards
GP4000 Series Hardware Manual Certifications and Standards Introduction Pro-face submitted this product for independent testing and qualification by third- party listing agencies. These agencies have certified this product as meeting the following standards. Agency Certifications The GP unit is manufactured in accordance with: UL 508 and CSA C22.2 n°142 for Industrial Control Equipment... - Page 5 DANGER POTENTIAL FOR EXPLOSION Verify that the power, input and output (I/O) wiring are in accordance with Class I, Division 2 wiring methods. Substitution of any component may impair suitability for Class I, Division 2. Do not connect or disconnect equipment unless power has been switched off or the area is known to be non-hazardous.
-
Page 6: Option Items / Maintenance Options
GP4000 Series Hardware Manual Option Items / Maintenance Options This section explains the option items and maintenance options dedicated for use with the rear mount model. Read this section together with chapter 2, "Accessories" (see page 27). Option Items Product Name Model Number Corresponding GP Description... -
Page 7: Parts Identification And Functions
Parts Identification and Functions PFXGP4301TADR Side PFXGP4301TADR Right Rear Bottom Part Name Description USB (Type A) Interface Conforms to USB2.0 (Type A) x 1. Power supply voltage: 5Vdc+/-5%. Output Current: 500 mA or less. Maximum communication distance: 5 m (16.4 ft). Serial Interface (COM1) RS-232C Serial Interface. - Page 8 GP4000 Series Hardware Manual Part Name Description SD Card Interface For information on how to open the cover, and Cover/Replacement Battery insert or remove the SD Card, refer to SD Card Insertion Cover Insertion / Removal (see page 150). For information on how to open the cover and replace the battery, refer to Replacing the Primary Battery (see page 168).
- Page 9 Part Name Description Serial Interface (COM1) RS-232C Serial Interface. Connector: D-Sub 9 pin (plug) x 1. Serial Interface (COM2) RS-422/485 Serial Interface. Connector: D- Sub 9 pin (plug) x 1. Power Plug Connector This lamp lights up when SD Card is inserted. SD Card Access LED ( see page 181) NOTE: Do not remove or insert the SD Card...
- Page 10 GP4000 Series Hardware Manual PFXGP4501TADR Side PFXGP4501TADR Rear Bottom Part Name Description Power Plug Connector SD Card Access LED This lamp lights up when SD Card is inserted. ( see page 181) NOTE: Do not remove or insert the SD Card when the LED lamp is on.
- Page 11 PFXGP4601TADR Side PFXGP4601TADR Rear Bottom Part Name Description Power Plug Connector SD Card Access LED This lamp lights up when SD Card is inserted. ( see page 181) NOTE: Do not remove or insert the SD Card when the LED lamp is on. Doing so may damage data on the SD Card.
- Page 12 GP4000 Series Hardware Manual LED Indications (1)Maintenance LED WARNING UNINTENDED EQUIPMENT OPERATION You cannot check the maintenance LED from the front of the GP unit. Design software by considering the possibility that touch operations may be performed while an error has occurred. To prevent malfunctions caused by touch operations, design software so that switches and other controls arranged on the screen do not function when you want the screen to be off even if these controls are accessed with touch...
