- Page 1 Electronic Service Manuals This electronic document is provided as a service to our custom- ers. We do not create the contents of the information contained in this document. Should you have detailed questions pertaining to the information contained in this document, you may contact Michco, or the manufacturer which provided the original information in this electronic deliverable.
-
Page 2: Instructions For Use

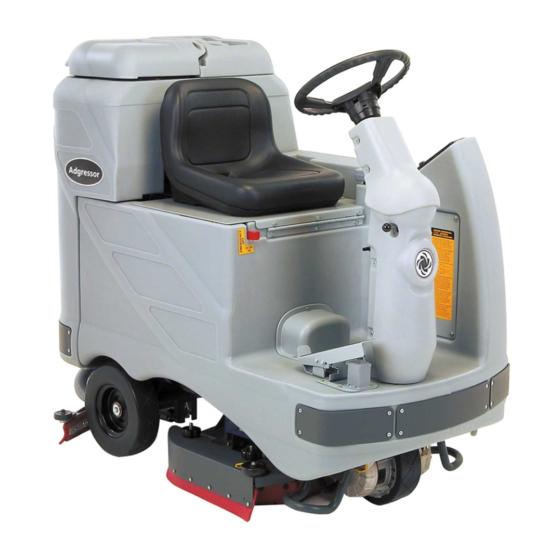

Adgressor ™ BR 850S, 850CS, 950S, 950CS BR 1050S, 1050CS Instructions For Use Advance MODELS 56314661(2820D), 56314662(3220D), 56314663(2820C), 56314664(3220C) 56314826(3520D), 56314827(3820D), 56314828(3520C), 56314829(3820C) Nilfi sk MODELS 56314674(850S), 56314675(850CS), 56314830(950S), 56314831(1050S), 56314832(950CS), 56314833(1050CS) English 2/04 revised 8/04 Form Number 56041583... -
Page 4: Table Of Contents
Repairs, when required, should be performed by your Authorized Nilfi sk-Advance Service Center, who employs factory trained service personnel, and maintains an inventory of Nilfi sk-Advance original replacement parts and accessories. Call the NILFISK-ADVANCE DEALER named below for repair parts or service. Please specify the Model and Serial Number when discussing your machine. (Dealer, affi x service sticker here.) NAME PLATE The Model Number and Serial Number of your machine are shown on the Nameplate on the machine. -
Page 5: Cautions And Warnings
4 / ENGLISH CAUTIONS AND WARNINGS SYMBOLS Nilfi sk-Advance uses the symbols below to signal potentially dangerous conditions. Always read this information carefully and take the necessary steps to protect personnel and property. DANGER! Is used to warn of immediate hazards that will cause severe personal injury or death. WARNING! Is used to call attention to a situation that could cause severe personal injury. -
Page 6: Consignes De Prudence Et De Sécurité
ENGLISH / 5 CONSIGNES DE PRUDENCE ET DE SÉCURITÉ SYMBOLES Les symboles reproduits ci-dessous sont utilisés pour attirer l’attention de l’opérateur sur des situations dangereuses. Il est donc conseillé de lire attentivement ces indications et de prendre les mesures adéquates en vue de protéger le personnel et le matériel. DANGER! Ce symbole est utilisé... -
Page 7: Know Your Machine
6 / ENGLISH KNOW YOUR MACHINE Emergency Stop Switch / Battery Disconnect Recovery Tank Cover Scrub Deck Solution Tank Fill Cover Rear Wheel Operator’s Seat Battery Compartment (under seat) Solution Tank Drain Hose Recovery Tank Shutoff Float Steering Wheel Tilt Adjust Knob Vacuum Motor Filter Housing Brake Pedal / Parking Brake Squeegee Assembly... -
Page 8: Control Panel
ENGLISH / 7 CONTROL PANEL Scrub OFF Indicator Scrub OFF Switch Scrub Pressure Decrease Indicator Scrub Pressure Decrease Switch Scrub Pressure Increase Indicator Scrub Pressure Increase Switch Scrub Pressure / Hourmeter Display Wand Switch Indicator Wand Switch Key Switch Battery Condition Indicator Speed Select Switch Speed Select Indicator Horn Switch... -
Page 9: Know Your Machine Descriptions
8 / ENGLISH KNOW YOUR MACHINE DESCRIPTIONS: Recovery Tank Cover (1) – Open to access Recovery Tank for rinsing and(or) cleaning Float Cage. Solution Tank Fill Cover (2) – Open to fi ll the solution tank, use non-foaming chemicals only. Operator’s Seat (3) –... -
Page 10: Functional Description Of Control Switches
ENGLISH / 9 FUNCTIONAL DESCRIPTION OF CONTROL SWITCHES: The controls on the Adgressor were designed with one touch operation in mind. For single pass scrubbing the user can simply depress one switch and all systems on the machine will be ready to go. For most single-pass scrubbing operations, the operator should only need to use the top three switches on the control panel. -
Page 11: Description Of Indicators On The Control Panel
10 / ENGLISH DESCRIPTION OF INDICATORS ON THE CONTROL PANEL: In general, the following guidelines apply to the control panel indicators: A steady red indicator means that the function is inhibited for some reason. For example, if the scrub system is off and the operator is not on the seat, the scrub system indicator will be red indicating that the system cannot be turned on until the operator is on the seat. -
Page 12: Error Codes
ENGLISH / 11 Wand Switch Indicator (H): • This indicator will be green if the Wand Switch has been turned ON. • This indicator will be off if the Wand Switch has been turned OFF. Speed Selector Indicator (M): • This indicator will be green if a scrub mode has been selected and the faster scrub speed has been selected. -
Page 13: Description Of The Battery Condition Indicators
12 / ENGLISH DESCRIPTION OF THE BATTERY CONDITION INDICATORS The battery condition indicator (J) consists of three lights, a green (G), a yellow (Y), and a red (R). The voltage indication will change based on the cutoff level (standard or alternate) selected in the control unit. The battery voltage ranges for the various indications are listed below: Standard Alternate Green... -
Page 14: Install The Brushes
ENGLISH / 13 INSTALL THE BRUSHES (DISC SYSTEM) CAUTION! Turn the key switch off (O) and remove the key, before changing the brushes, and before opening any access panels. Make sure the Key Switch (J) is off (O). To access the brushes, remove both side skirt assemblies. Note: The skirts are held in place by two large Knobs, loosen these knobs and slide the skirt assemblies off of the Scrub Deck. -
Page 15: Install The Squeegee
14 / ENGLISH INSTALL THE SQUEEGEE Make sure the Squeegee (19) is up (O) and the Key Switch (J) is off (O). Hold the squeegee tool so that the curved ends point forward, then slide the squeegee tool onto the Mount (A) (See Figure 2). Hand tighten the Thumb Nuts (B) and then connect the vacuum hose to the Squeegee Tube (C) (vacuum hose should loop to the right). -
Page 16: Operating The Machine
ENGLISH / 15 OPERATING THE MACHINE WARNING! Be sure you understand the operator controls and their functions. While on ramps or inclines, avoid sudden stops when loaded. Avoid abrupt sharp turns. Use low speed down hills. Clean only while ascending (driving up) the ramp. To Scrub... -
Page 17: Wet Vacuuming
16 / ENGLISH WET VACUUMING Steps to follow in fi tting the machine with optional attachments for wet vacuuming. Disconnect the recovery hose from the squeegee. Connect the coupler and hose from the wand kit to the recovery hose. Attach suitable wet pick-up tools to the hose. (An optional Wand Kit PN56314307 is available from Nilfi sk-Advance). Turn the Master Key Switch (J) ON, next press the Wand Switch (I). -
Page 18: Charging The Batteries
ENGLISH / 17 CHARGING THE BATTERIES Charge the batteries each time the machine is used, or whenever the Battery Condition Meter (K) is showing a yellow , red or fl ashing red indicator light(s). To Charge the Batteries... Depress the Battery Disconnect (13). Open the Battery Compartment Cover (16) to provide proper ventilation. -
Page 19: Squeegee Maintenance
18 / ENGLISH SQUEEGEE MAINTENANCE If the squeegee leaves narrow streaks or water, the blades may be dirty or damaged. Remove the squeegee, rinse it under warm water and inspect the blades. Reverse or replace the blades if they are cut, torn, wavy or worn. To Reverse or Replace the Rear Squeegee Wiping Blade... -
Page 20: Side Skirt Maintenance
ENGLISH / 19 SIDE SKIRT MAINTENANCE (DISC SYSTEM) The side skirt’s function is to channel the waste water to the squeegee, helping contain the water within the machines cleaning path. During normal use the blades will wear in time. The operator will notice a small amount of water leaking out underneath the side skirts. A height adjustment can easily be made to lower the blades so that all the water can be pick-up by the squeegee. - Page 21 20 / ENGLISH SIDE SKIRT MAINTENANCE (CYLINDRICAL SYSTEM) The side skirts function is to channel the waste water to the squeegee, helping contain the water within the machines cleaning path. During normal use the blades will wear in time. The operator will notice a small amount of water leaking out underneath the side skirts. Skirt height adjustment is automatic on this system.
-
Page 22: Troubleshooting
ENGLISH / 21 GENERAL MACHINE TROUBLESHOOTING Problem Possible Cause Remedy Poor water pick-up Worn or torn squeegee blades Reverse or replace Squeegee out of adjustment Adjust so blades touch fl oor evenly across entire width Recovery tank full Empty recovery tank Recovery tank drain hose leak Secure drain hose cap or replace Recovery tank cover gasket leak... -
Page 23: Technical Specifi Cations
22 / ENGLISH TECHNICAL SPECIFICATIONS (as installed and tested on the unit) Model BR 850S BR 950S BR 1050S Adgressor™ 2820D Adgressor™ 3220D Adgressor™ 3520D Adgressor™ 3820D Model No. 56314674 56314830 56314831 56314661 56314662 56314826 56314827 Voltage, Batteries Battery Capacity Protection Grade IPX3 IPX3... - Page 25 Austria (Sales Sub) Holland (Sales Sub) Nilfi sk-Advance GmbH Phone: +43 Nilfi sk-Advance B.V. Phone: +31 Voralberger Allee 46 1616 58 30 22 Camerastraat 9 (2e verdieping) 36 546 07 00 A-1230 Wien Fax: +43 1322 BB Almere Fax: +31 info@nilfi...
- Page 26 Sweden (Prod.) Hong Kong (Sales Sub) Nilfi sk-Advance A/S Phone: +46 Nilfi sk-Advance Ltd. Phone: +852 Åmål Branch 5321 7500 2001 HK Worsted Mills Ind’l Bldg., 2427 5951 Strömsbergsgatan Fax: +46 31-39 Wo Tong Tsui St. Fax: +852 Box 127 5321 7595 Kwai Chung, Hong Kong 2487 5828...
- Page 27 Smernica o elektromagnetni združljivosti (EMC): 89/336/EEC Direktíva EMC: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC 92/31/EEC 93/68/EEC 98/13/EEC Smernica o nizki napetosti: 73/23/EEC 93/68/EEC Direktíva o nízkom napätí: 73/23/EEC 93/68/EEC Harmonizirani standardi: EN 60 335-2-72 Súvisiace normy: EN 60 335-2-72 ©Nilfisk-Advance Incorporated, 4/04 .pas...
- Page 28 Инструкция по использованию низких напряжений: 73/23/EEC Harmonizált szabványok: EN 60 335-2-72 93/68/EEC Согласованные стандарты: EN 60 335-2-72 4.3.2004 . Larry Doerr, Vice President Operations Nilfisk-Advance, Inc. Nilfisk-Advance A/S 14600 21st Avenue North Sognevej 25 Plymouth, MN 55447 USA DK-2605 Brøndby, Denmark ©Nilfisk-Advance Incorporated, 4/04 .pas...
- Page 29 © 2004 Printed in USA...
