TX-4700 Fanless POS Box
User Manual
Product Features
Flexible use for all verticals, cache box, kitchen video and more
VESA mounting for flexible deployment
Industrial-class embedded CPU and operating systems
Ultra small footprint
Fanless and ventless
Ruggedized design
Allowed to activate power output to COM and VGA ports via
BIOS settings
Allowed to integrate with optional Powered USB, 2
DB9 (COM5/6) ports.
14570900010 Ver. Original
http://www.posiflex.com
Package Contents
TX-4700 POS box (x 1)
12VDC/60W power adaptor
(x 1)
Power cord (x 1)
User manual (x 1)
1
nd
VGA, and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX TX-4700
Summary of Contents for POSIFLEX TX-4700
- Page 1 TX-4700 Fanless POS Box User Manual Package Contents TX-4700 POS box (x 1) 12VDC/60W power adaptor (x 1) Power cord (x 1) User manual (x 1) Product Features Flexible use for all verticals, cache box, kitchen video and more ...
-
Page 2: Rear View

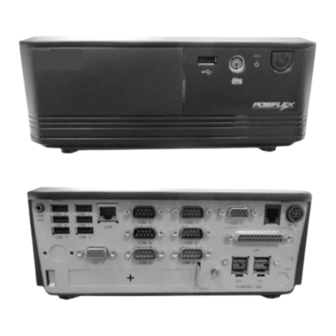

Views of the TX-4700 Front View Power Button Power Status LED Indicator PS2 Port for Keyboard USB 2.0 Port Rear View I/O Interface Bottom View Rubber Pad Rubber Pad... - Page 3 View of Rear I/O Interface of TX-4700 Line out USB 2.0 ports VGA 2 port (optional) PCI slot (optional) PoweredUSB Ports (optional) LPT Port 12 VDC-IN power jack RJ11 cash drawer (CR) port COM (DB9) ports VGA 1 port (COM5/6 are optional )
- Page 4 Powering ON/OFF TX-4700 Power ON TX-4700 Press down the power button to power on TX-4700. Power OFF TX-4700 In most cases, push the power button again to power the system off. However, if TX-4700 halts for unknown reasons, please be advised to hold the power more than 10 seconds to initiate a forced shutdown.
-
Page 5: Installing An Operating System
Operation Environment To prevent TX-4700 from overheating, it is suggested to position your terminal in a well-ventilated working environment. In doing so, please be advised to keep the POS box at least 25mm away from other devices to ensure the machine is properly cooled down and functioning normally. -
Page 6: Specifications
0°C - 40°C, 20%RH - 90%RH Environmental Requirements Storage : -20°C - 70°C, 10%RH - 90%RH ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TX-4700, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download). - Page 7 <MEMO>...
- Page 8 <MEMO>...
