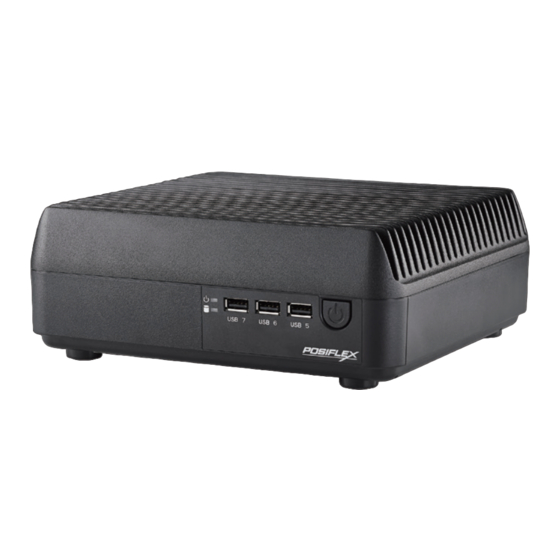

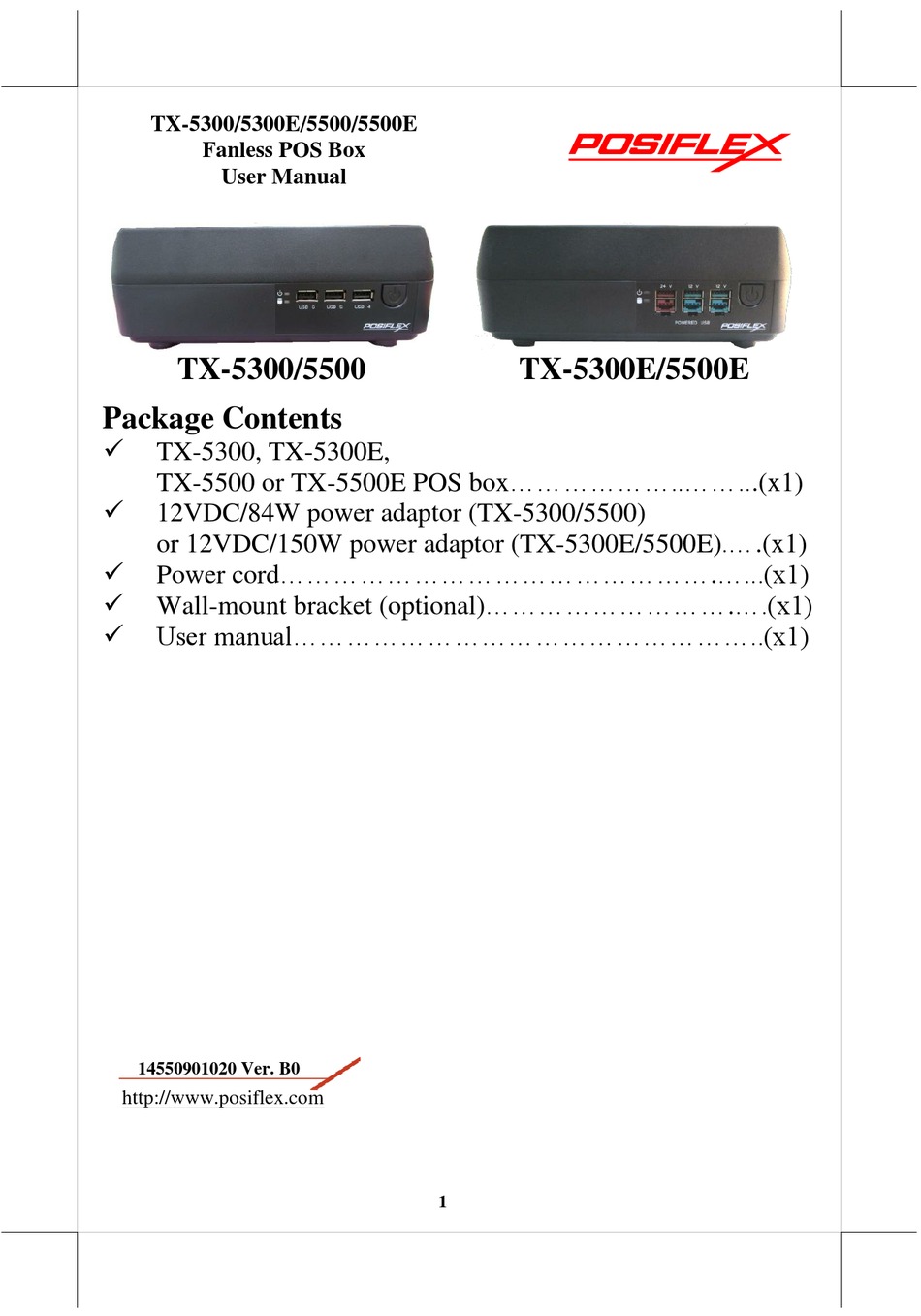

TX-5300/5300E/5500/5500E
Fanless POS Box
User Manual
TX-5300/5500
Package Contents
TX-5300, TX-5300E,
TX-5500 or TX-5500E POS box.............................(x1)
12VDC/84W power adaptor (TX-5300/5500)
or 12VDC/150W power adaptor (TX-5300E/5500E).....(x1)
Power cord.......................................................(x1)
Wall-mount bracket (optional)................................(x1)
User manual.....................................................(x1)
14550901020 Ver. B0
http://www.posiflex.com
TX-5300E/5500E
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX TX-5300
Summary of Contents for POSIFLEX TX-5300
- Page 1 Fanless POS Box User Manual TX-5300/5500 TX-5300E/5500E Package Contents TX-5300, TX-5300E, TX-5500 or TX-5500E POS box………………..……...(x1) 12VDC/84W power adaptor (TX-5300/5500) or 12VDC/150W power adaptor (TX-5300E/5500E).….(x1) Power cord………………………………………….…...(x1) Wall-mount bracket (optional)……………………….….(x1) User manual……………………………………………..(x1) 14550901020 Ver. B0...
- Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
- Page 3 種情況下，使用者會被要求採取某些適當的對策。 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. BATTERY CAUTION NOTES ...
- Page 4 Views Front View of TX-5300/5500 Power Status LED Indicator Power Button USB 2.0 Port Storage Status LED Indicator Front View of TX-5300E/5500E Power Button Power Status LED Indicator Powered USB Port Storage Status LED Indicator Top View of TX-5300/5300E/5500/5500E Heat-Dissipation Fins...
-
Page 5: Rear I/O Ports
Bottom View of TX-5300/5300E/5500/5500E Rubber Pad Rubber Pad Service Door Rear I/O Ports TX-5300/5300E/5500/5500E USB 3.0 port RJ45 LAN port VGA port RJ11 cash drawer (CR) port LPT port HDMI port COM port 12VDC-IN power jack Mic-in / line-out combo jack... - Page 6 The means of power cord should be connected to a socket-outlet with earthing connection. Note: The COM ports of TX-5300/5300E/5500/5500E do not supply power by default. To make the COM ports supply power, you can set up the COM ports through the dedicated settings listed in the table below.
-
Page 7: Installing A Memory Upgrade Module
Installing Optional Peripheral Devices Posiflex TX-5300/5300E/5500/5500E can work with multiple optional peripheral devices, such as LCD monitor, cash drawer and the like. Before installing an optional peripheral device, make sure that the system is powered off and the external power source is removed... - Page 8 Mounting the TX-5300/5300E/5500/5500E on the Wall (Optional) 1. Fix the wall mount bracket onto the wall by using attached plastic anchors and four M3.5-16L screws. 2. Do spiral insertion of 4 M4-7L screw bolts into the 4 screw bolt holes.
-
Page 9: Status Led Indicator
OS installation. Operating System Recovery For the TX-5300/5300E/5500/5500E main system preloaded with an operating system, Posiflex provides a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered. -
Page 10: Specifications
Specifications TX-5300 TX-5300E TX-5500 TX-5500E Intel® Coffee Lake-S CPU Core-i5, Intel Coffee Lake-S CPU Core-i3 Core-i7 Chipset H310 Q370 Memory DDR4 SO-DIMM x2, Max. 32GB Windows 10 IoT / Linux (by request) VGA Port VGA(DB15 pin) x 1 , supporting +12V/2.5A... - Page 11 0°C - 40°C, 20%RH - 90%RH Condition Storage -20°C - 70°C, 10%RH - 90%RH Condition ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TX-5300/5300E/5500/5500E, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
- Page 12 <MEMO>...
