TX-2000/2100/2101

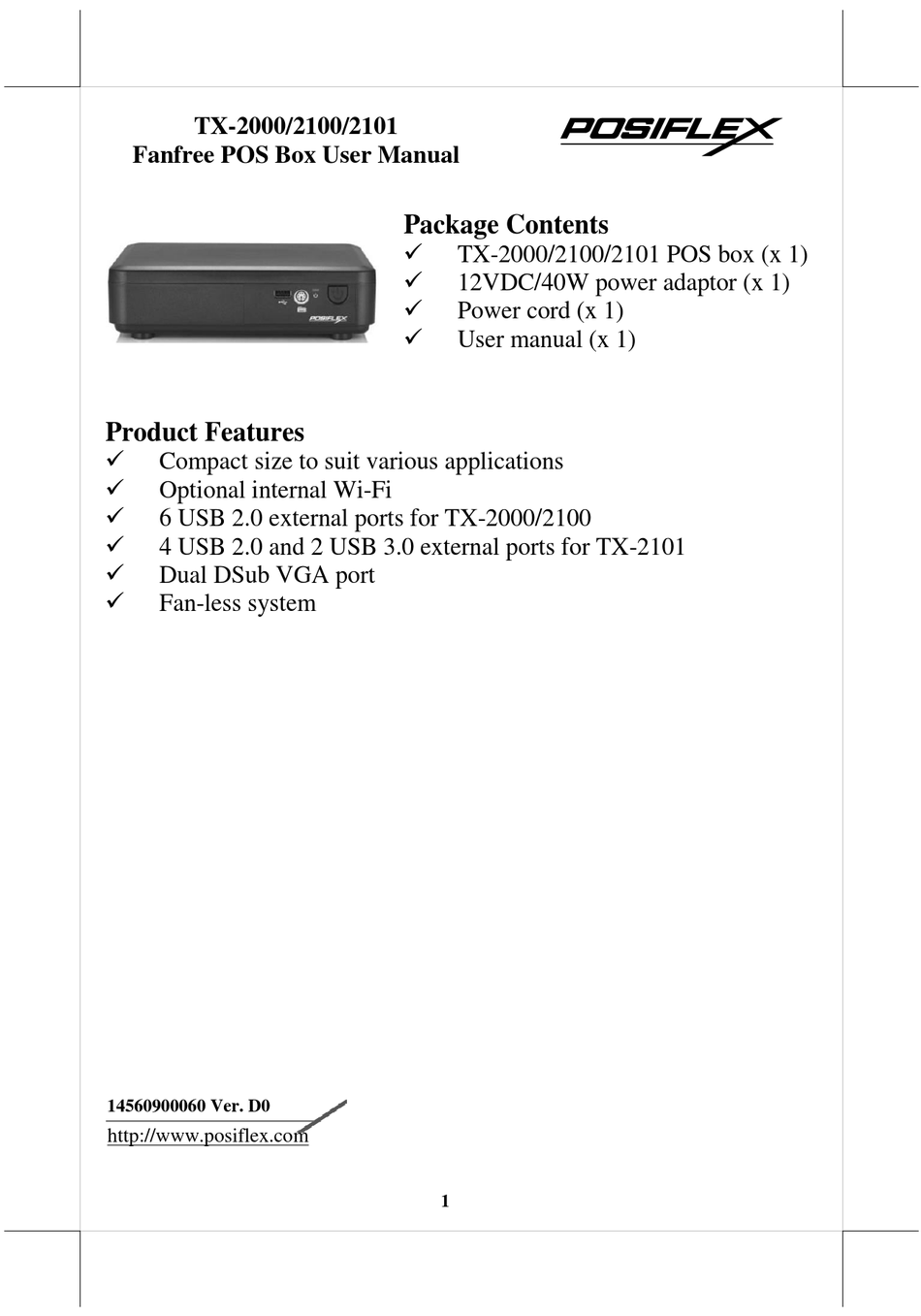

Fanfree POS Box User Manual
Product Features
Compact size to suit various applications
Optional internal Wi-Fi
6 USB 2.0 external ports for TX-2000/2100
4 USB 2.0 and 2 USB 3.0 external ports for TX-2101
Dual DSub VGA port
Fan-less system
14560900060 Ver. D0
http://www.posiflex.com
Package Contents
TX-2000/2100/2101 POS box (x 1)
12VDC/40W power adaptor (x 1)
Power cord (x 1)
User manual (x 1)
1
Advertisement
Related Manuals for POSIFLEX TX-2101
Summary of Contents for POSIFLEX TX-2101
- Page 1 Compact size to suit various applications Optional internal Wi-Fi 6 USB 2.0 external ports for TX-2000/2100 4 USB 2.0 and 2 USB 3.0 external ports for TX-2101 Dual DSub VGA port Fan-less system 14560900060 Ver. D0...
-
Page 2: Fcc Notes
SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. - Page 3 Views of the TX-2000/2100/2101 Front View Rear View TX-2000/2100 I/O Interface TX-2101...
- Page 4 Bottom View Rubber Pad Rubber Pad DRAM Cover View of Rear I/O Interface of TX-2000/2100/2101 TX-2000/2100 Line out USB 2.0 port RJ45 LAN port Dual DSub VGA port COM (DB9) port COM (RJ50) port (COM 1 / COM 2) (COM 3 / COM 4) LPT Port 12VDC-IN power jack RJ11 cash drawer (CR) port...
- Page 5 TX-2101 Line out HDMI port USB 2.0 port RJ45 LAN port COM (DB9) port Dual DSub VGA port (COM 1 / COM 2) COM (RJ50) port LPT Port (COM 3 / COM 4) 12VDC-IN power jack RJ11 cash drawer (CR) port USB 3.0 port...
- Page 6 COM ports through jumper setting. The VGA port of TX-2000/2100/2101 can supply +12VDC power through jumper setting for Posiflex LCD monitor. Nevertheless, except Posiflex peripheral device, do not connect any other device to this port.
- Page 7 2. Remove the DRAM cover. 3. Replace the existing memory module. To avoid users from damaging the main board of the system, it is highly recommended that the memory expansion and replacement are implemented by professional technicians. Mounting the TX-2000/2100/2101 on the Wall (Optional) 1.
- Page 8 Operating System Recovery For the TX-2000/2100/2101 main system preloaded with an operating system on HDD or SSD, Posiflex provides a recovery DVD shipped with the main system for the preloaded operating system. The system integrator shall take care of software restoration after the OS is recovered.
-
Page 9: Operation Environment
During operation of the terminal, to avoid this terminal from overheating, keep at least proper air clearance away from this terminal for adequate air traffic. Specifications TX-2000 TX-2100 TX-2101 Intel® Baytrail-D, Intel® Baytrail-D, J1900 J1800 (Default) Processor Intel® Baytrail-M, N2807 (Option) - Page 10 0°C - 40°C, 20%RH - 90%RH Environmental Requirements Storage : -20°C - 70°C, 10%RH - 90%RH ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TX-2000/2100/2101, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
- Page 11 <MEMO>...
- Page 12 <MEMO>...
