LIONEL LEGACY CONTROL SYSTEM
SETTING UP
Here's How
Take your system out of the box and become familiar with the contents. There
are three available options for connecting the transformer and base to your track.
Choose the right one that fi ts your layout.
•
Direct Connection
•
Using a TPC controller
•
With a LEGACY and TMCC base
Direct Connection

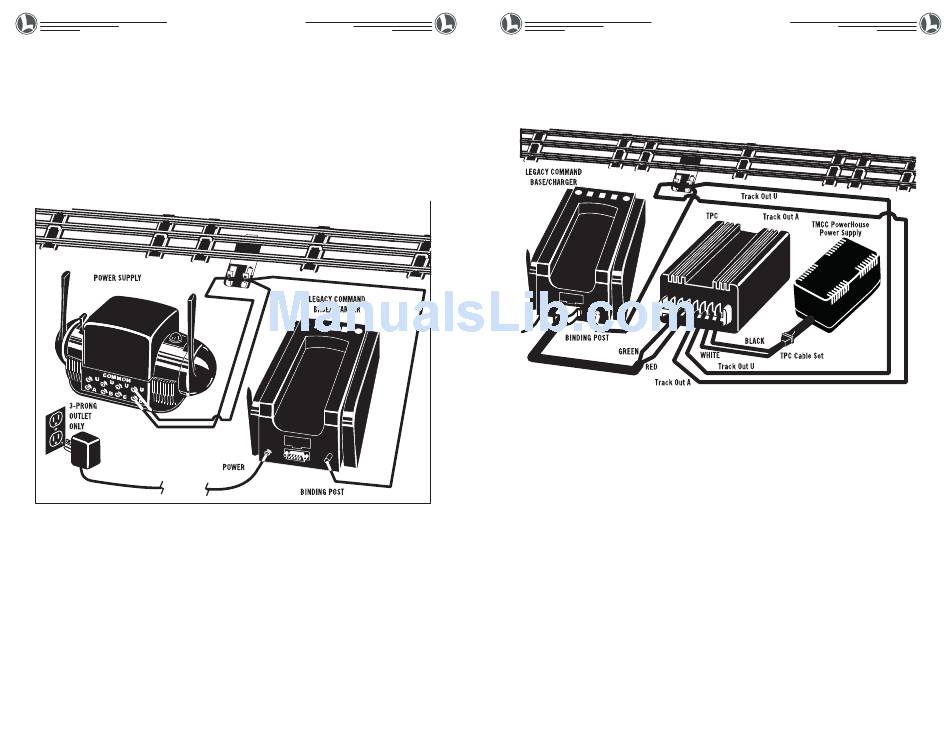

First, connect your LEGACY Command Base/Charger binding post to both
outside rails on the track using a single wire (or the solid black wire on your Fas-
track terminal track). Ensure the Command Base cord is connected to a properly
grounded 3-prong socket.
Connect wires as shown in diagram above. Check out the diagram and see
if you have everything right. The lights should be on. Remember, this system
requires a three-prong socket for power.
It is not necessary to add your new engine to your system's roster now. (You can
just operate it as engine #1 to get started quickly.) Later on you can add it to your
roster of engines by giving it a unique ID# using the directions that came with
your new locomotive or refer to page 54 in this manual.
Note: Your new LIONEL LEGACY Control System equipped engine comes with a
factory ID# 1 and will respond to that address immediately.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 6
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
LEGACY Base with a TMCC Controller
Using a TPC Controller
Note: The above 6-14191 Command
Base Cable a separately sold item.
Use the Direct Connection instructions on page 6 to connect up the LEGACY
Command Base/Charger to your track. Then connect wires between the TPC and
the LEGACY Command Base, the TPC and the track, and the TPC and Power Sup-
ply as shown in the above diagram.
With this confi guration, you will be able to control the power supply to your
track through the CAB-2 remote.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Note: The 6-14194 TPC
Cable Set is a separately
sold item.
Page 7
"Wipe Your Track Regularly"
