CAB-2 Controls (continued)

RECORD

The Record Button on your CAB-2 allows you to record and play back any ac-
tion that can be done with the controller!
The recording is stored inside of the remote. The recording works by saving
the command sent and the delays between each command. The remote can store
roughly 1000 events, with a maximum delay of 400 seconds between events. The
amount of recording space used is directly proportional to the number of events -
not the overall time of the recording.
To Create a Recording
1. Hold the RECORD Button down for 5 seconds and release.
2. Dialog 'RECORDING' will be displayed
3. The graph on the left is the 'saving buffer.' Try to keep this graph low
4. The graph on the right is the position in record. Recording will automati-
cally end once all the memory is used.
Now, operate the Cab just like you would normally.
Everything you do will be saved.
To Save a Recording
A Tap of the Record Button will save the recording normally. The dialog "Recording Cre-
ated" will be shown. This means that the recording will play once and stop.
To Loop a Recording
A 5 Second Hold of the Record Button will save the recording and make it loop when
fi nished. This means your recording will play back repeatedly until you stop it. The dialog
"Recording Created" will be shown.
Note: It is recommended to stop and start your recording at the same location on the
track if you are looping a train or an engine action.

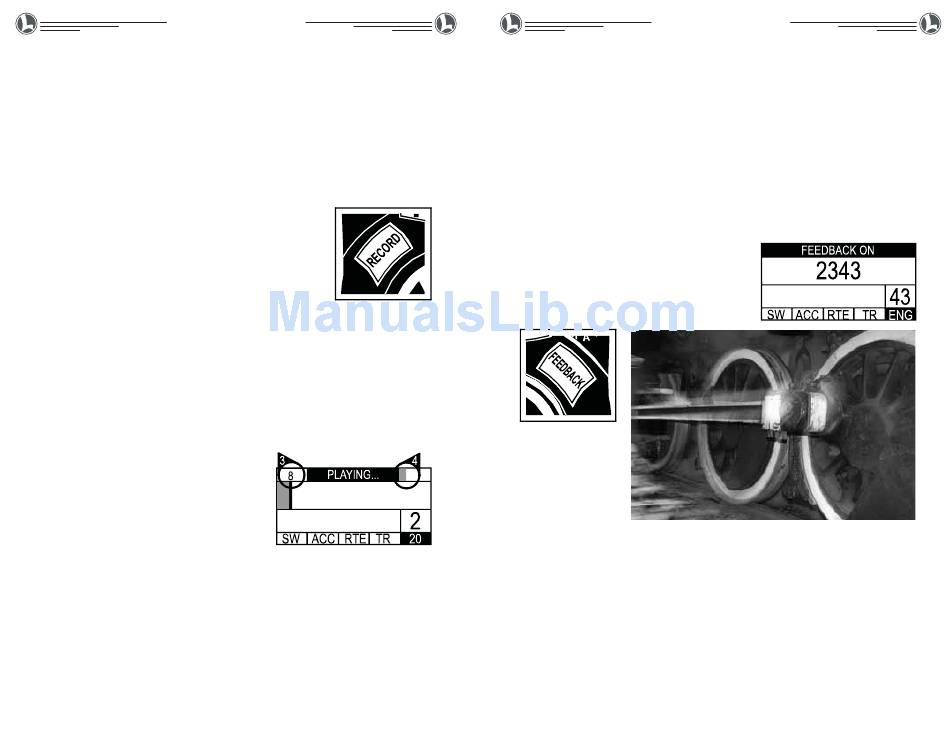

To Play Back a Recording
1. Just tap the RECORD Button,
2. Dialog 'PLAYING' will be displayed
3. Countdown on left is time until next command is sent out
4. Graph on right is position in recording time
To stop playback while it is in progress just
tap the Record Button.
To Erase The Recording
Hold The Record Button For 5 Seconds.
Upon release 'RECORDING' will be shown. Tap
Record Button again to end recording. This will create a recording with nothing in it.
As always, HALT will stop everything, including the recording playback.
That's it!
Note: The Record function replaces the functions of the Lionel Action Recorder Controller (ARC). An ARC
will work with the LEGACY System, but only in CAB-1 or TMCC Mode. To utilize the ARC with a LEGACY engine,
change the engine's confi guration to TMCC or CAB-1 Mode.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 44
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

FEEDBACK

See. Hear. Feel.
As your engine's Commanded Speed moves toward your Target Speed, you can hear, see,
and feel your engine at work.
Pick up the CAB-2. Experiment for yourself. Momentum is default "M" medium setting.
See how the Momentum affects your engine's rate of Acceleration.
Listen. Hear the laboring sounds, coasting sounds, braking sounds, RPM changes and
more as your engine moves towards its "Target Speed."
Feel. If you have the CAB-2 "FEEDBACK" effect on, you will "feel" the engine laboring
through RPM ramps, forced braking, boosting, stopping, starting, and other conditions.
Press the Feedback Button:
1. Feedback "on" message appears in display
Press the Feedback Button again:
1. Feedback "off" message appears in display
