LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

TOUCH-SCREEN ICONS

The LEGACY Touch-Screen adapts to your operating condi-
tion.
Addressing an Engine (LEGACY Control System and TMCC)
If you are addressing, the Touch-Screen allows you to enter
ID numbers and information about the engine (or lashup) us-
ing the TMCC method. You get the Addressing Touch-Screen
display by pressing ENG or TR.
Start-Up and Shut-Down Commands (TMCC engines)
Address the engine.
1. Tap the Start-Up Touch-Screen Icon to start up your TMCC engine.
2. Tap the Shut-Down Touch-Screen Icon to shut down your TMCC
engine.

Start-Up and Shut-Down Commands

(LEGACY equipped engines only)
Start-Up and Shut-Down sequences are designed to realistically start-up and shut-down
your locomotive.
The Start-Up Touch-Screen ICON will enable a sequence of events including the
smoke system starting up, Tower Communication dialog, and fi nally the engine
starting up. This will happen whether you have previously set the smoke to OFF, L,
M or H.
Note: To avoid having the smoke system start up, you must manually turn the smoke unit
off on your locomotive. Please see the locomotive's directions for the location of the smoke
unit switch.
Note: When a locomotive is fi rst placed on the track and powered up, it will start-up from
any action command, without pressing the Start-Up Touch-Screen ICON. In this case, the
smoke unit will remain in the state it was last commanded to be in: OFF, L, M or H.
The Shut-Down Touch-Screen ICON will enable a sequence of events including the
smoke system shutting down, Tower Communication dialog, and fi nally the engine
shutting down.
This will happen whether you have previously set the smoke to L, M or H. The smoke
unit will still be set to L, M or H for the next Start-Up
Address your LEGACY engine.
1. Tap the Start-Up Touch-Screen Icon to start up your LEGACY engine with no dialog; or Press and HOLD
the Start-Up Touch-Screen Icon to hear a Tower-Comm and Crew-Talk dialog. The smoke unit will
respond, and the engine will start-up.
2. Tap the Shut-Down Touch-Screen Icon to shut down your LEGACY engine with no dialog; or Press and
HOLD the Shut-Down Touch-Screen Icon to hear a Tower-Comm and Crew-Talk dialog. The smoke unit
will respond, and the engine will shut down.
Note: After Start-Up, the Touch-Screen will change to the control panel.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM

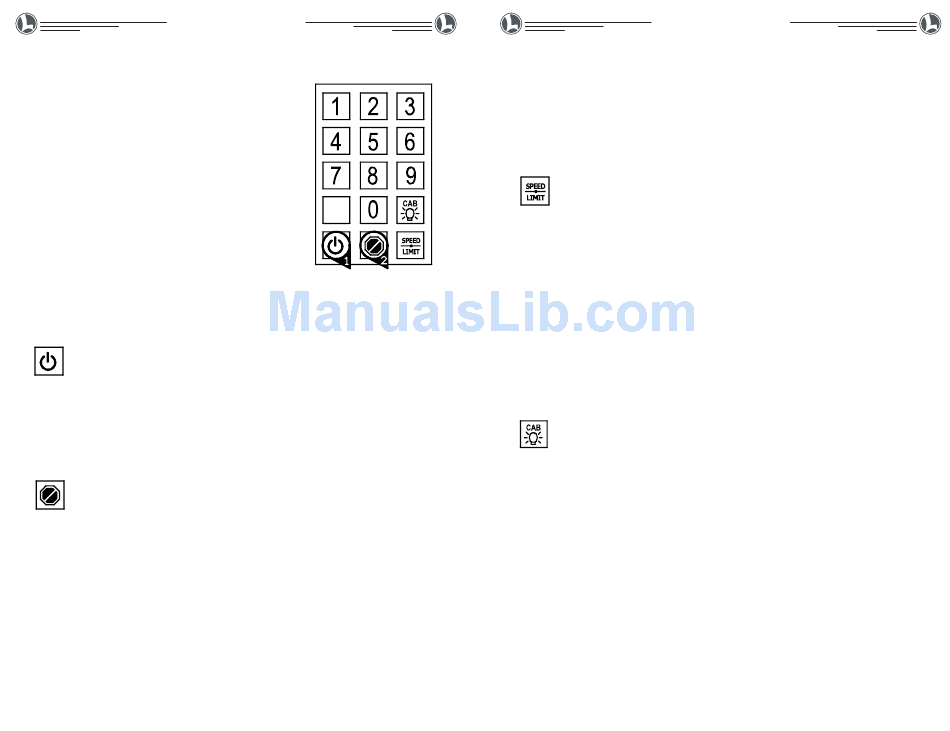

Address Touch-Screen
Page 34
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

Speed Limit Commands

To prevent inexperienced operators from operating an engine at an unsafe speed, it is
recommended to set a High Speed Limit for that engine. This can only be done in the ad-
dress screen, which is accessed by pressing either the TR or ENG address key. If the speed
limit is set, the icon will appear inverted.
Use the Speed Limit Touch-Screen ICON to set a speed limit for your engines.
Set Speed Limit
With your engine or train at the desired high speed limit,
1. Press and release the ENG or TR address button
2. Press and hold the speed limit Touch-Screen ICON
3. SPEED LIMIT SET will appear at the top of your display screen
4. Speed Limit is set.
Clear Speed Limit
With your engine or train on the track,
1. Press and release ENG or TR
2. Press and hold the speed limit Touch-Screen ICON
3. Speed Limit is cleared

CAB Light Commands

Use the CAB Light Touch-Screen ICON to turn on and off the CAB light in the ad-
dressed engine.
With your engine or train on the track,
1. Press and release ENG or TR address button
2. Press the CAB Light Touch-Screen ICON
If the CAB light was previously on, it will turn off. If the CAB light was previously off, it will turn on.
Operating With Touch-Screen Icons Section
The next few pages cover Touch-Screen Icons for Steam, Diesel, Electric, and Other
Engines for these operating conditions:
