LIONEL LEGACY CONTROL SYSTEM
Controlling Your Layout: ROUTES (continued)

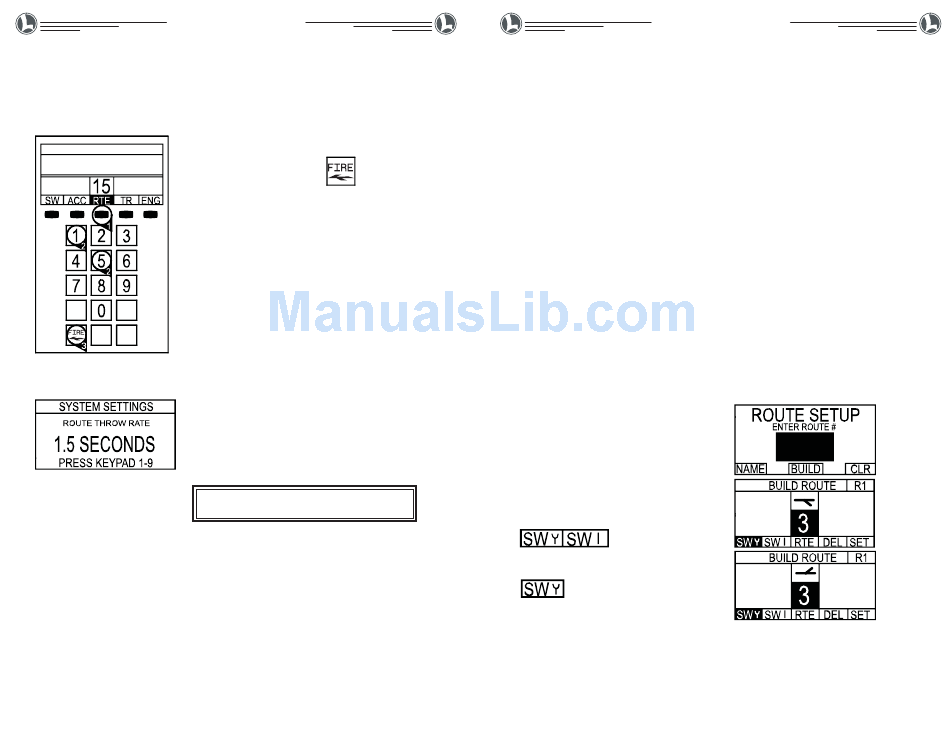

Route Addressing Methods
There is one way to address and throw Routes: Traditional ID#.
Traditional ID #
1. Press RTE
2. Enter Route ID# (1 or 2 digits)
3. Press FIRE to throw the switch
Route Throw Rate
Press CTC
1. Scroll to "SYSTEM SETTINGS ROUTE THROW RATE"
a. Select a number 1-9 on the keypad until you see the rate you
wish to set.
b. You can select any rate from "instant" to "2 seconds" between
Switch throws on your Routes.
Warning: Do not set the throw rate below 1 second if you
are using a SC-2 controller!
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 70
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
Controlling Your Layout: ROUTES (continued)
Building a Route
Building a Route allows you to control a group of Switches and Sub-Routes with one
command. In the CTC options menu (see page 48), you can set the rate at which the Switches
and Sub-Routes in the Route will throw.
There are three key differences between LEGACY and TMCC Routes:
1. LEGACY Routes can contain other Routes. These are called Sub-Routes.
2. LEGACY Routes can throw Switches at a user adjustable rate.
3. LEGACY Routes, while they are single digit ID# Routes by default, can be changed to be
double digit ID# Routes if you wish. It is possible to choose any number 1-9 and have
all Routes that start with that number become double digit Routes. You can have both
double digit Routes and single digit Routes. In the CTC options Menu (see page 48), you
can select Routes 1-9 to be double digit Routes, making a total amount of 99 Routes.
While double digit Routes make more Routes available, they are slower to throw, requir-
ing 2 button presses. Single digit Routes allow for quick throw of Routes with one button
press. An example of this implemented on your layout would be mainline single digit
Route ID#'s 1-8, and 9 double digit ID# Routes in your yard that all begin with ID# 9,
i.e. 90, 91, 92, 93, 94, 95, 96, 97, 98, and 99.
It is possible to add 16 Switches or Sub-Routes to a Route. You can add any number of
Switches or Sub-Routes but the total number of entries can not exceed 16. Sub-Routes can
be used to enable a master Route to enable more than 16 Switches.
Example: RTE 1 contains 2 Sub-Routes Routes and 14 Switches for a total of 16.
Example: RTE 2 contains 4 Sub-Routes Routes and 12 Switches for a total of 16.
Example: RTE 3 contains 1 Sub-Route and 2 Switches for a total of 3.
Build a Route
1. Press RTE
2. Press INFO
3. Enter the Route number
4. Press BUILD softkey (button directly under BUILD)
5. Enter the fi rst Switch ID#
a. (It is not necessary to press SW, just enter the #)
b. It will appear in the blinking box
6. Press either the through or diverging icon
7. Press the diverging icon again to change the direction
of the divergence
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 71
"Wipe Your Track Regularly"
