LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

TRAIN LINK

The TRAIN LINK function offers quick access to operating cars within
a train while controlling that train. This functionality allows you to quickly
operate items in a train without remembering ID's.
To utilize TRAIN LINK you must fi rst build the consist that includes
items you wish to access with TRAIN LINK. An example of this would be
an engine, a breakdown unit, and a freight car. A maximum of 5 devices
per train can be part of TRAIN LINK. Refer to page 60 for more information
on building a lashup and page 64 on utilizing TRAIN LINK.
To utilize your TRAIN LINK devices you press TRAIN LINK while controlling your Train.
The screen will change and in our example we would see a breakdown unit and a freight car.
At this time the touchpad will refl ect icons for the selected unit.
While in the TRAIN LINK screen you can switch between train linked devices by pressing
the different softkeys (TL1~TL5). You can then control this item directly by pressing any of
the touchpad items or remote keys. The softkeys will switch functionality of all the keys on
the remote to the new TRAIN LINK item. The knob will only control a TRAIN LINK device if
it is a CAB-1 type device that receives knob commands. Devices that normally have a graph
will not link to the knob.
Once operation of the TRAIN LINK device is complete, press TRAIN LINK again to
return to the train you where initially controlling.
Using the example of a train that has been built with an engine, a breakdown unit, and
a freight car and has been programmed with ID 1, 2 and 3 respectively, here's how TRAIN
LINK would be used to operate these devices.
Select the train using the procedure found on page 63.

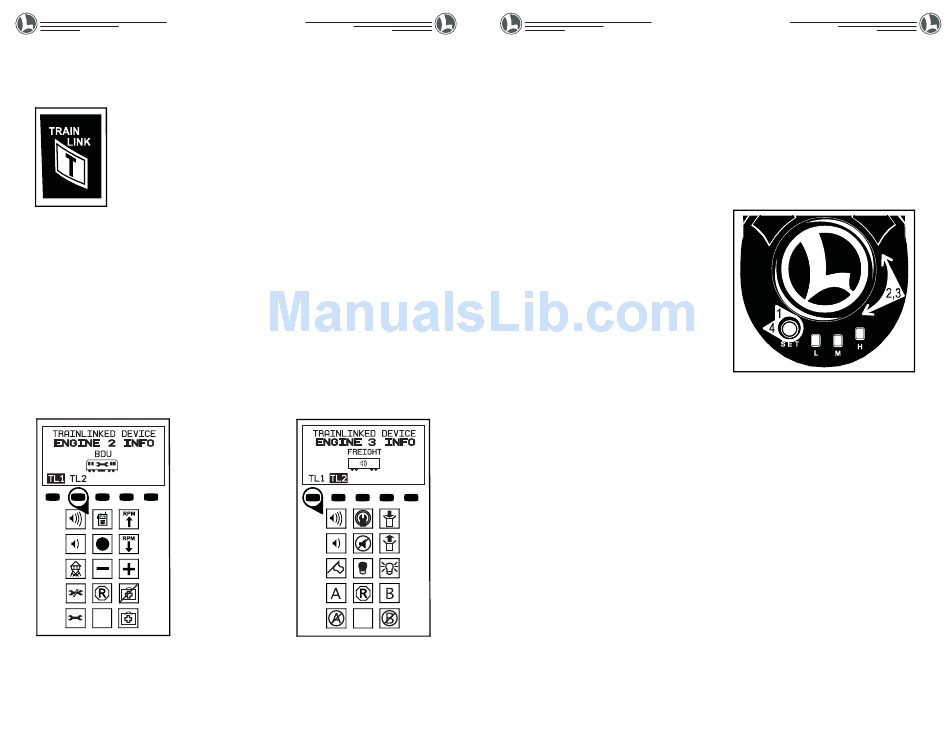

Press the TRAIN LINK button
1. Select the TL2 TRAIN LINK
device to control it directly
by pressing the TL2 softkey.
TL1 is selected by default
and the last selected is
memorized when toggling
1
the TRAIN LINK button.
Notice that the touchpad
icons change and refl ect the
device currently selected.
2. Select the TL1 TRAIN LINK
device to control it directly
by pressing the TL1 softkey.
3. Press the TRAIN LINK button
again to return to the train
that you were controlling
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
2
Page 28
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

STALL

STALL is a useful setting for LIONEL engines that have AC Pullmor motors. Sometimes
a Velocity Throttle will have to be turned a lot just to get these engines moving. Setting
" STALL" enables you to immediately go from 0 to the level of power your engine requires to
start movement as soon as you operate the Velocity Throttle.
NOTE: Your locomotive may not support STALL functionality. With the locomotive se-
lected, press the SET button. If the headlight does not begin to fl ash, STALL functionality is
not supported.
To set STALL, place your engine on a level straight track.
Set STALL
1. Press SET (headlight will fl ash)
2. Get your engine rolling
3. Turn the Velocity Throttle counter-clockwise until
your engine just stops
4. Press SET ( headlight will stop fl ashing, engine
will stop)
5. Your engine's STALL power has been set
6. Press Reset on the Touch Screen
7. Experiment to fi nd the STALL setting that best fi ts
your Pullmor locomotive
Clear STALL Setting
1. Press SET (headlight will fl ash)
2. Press SET
3. STALL setting is cleared
Note: If necessary, set " STALL" to match starting of Pullmor engines in a lashup with
other engines.
