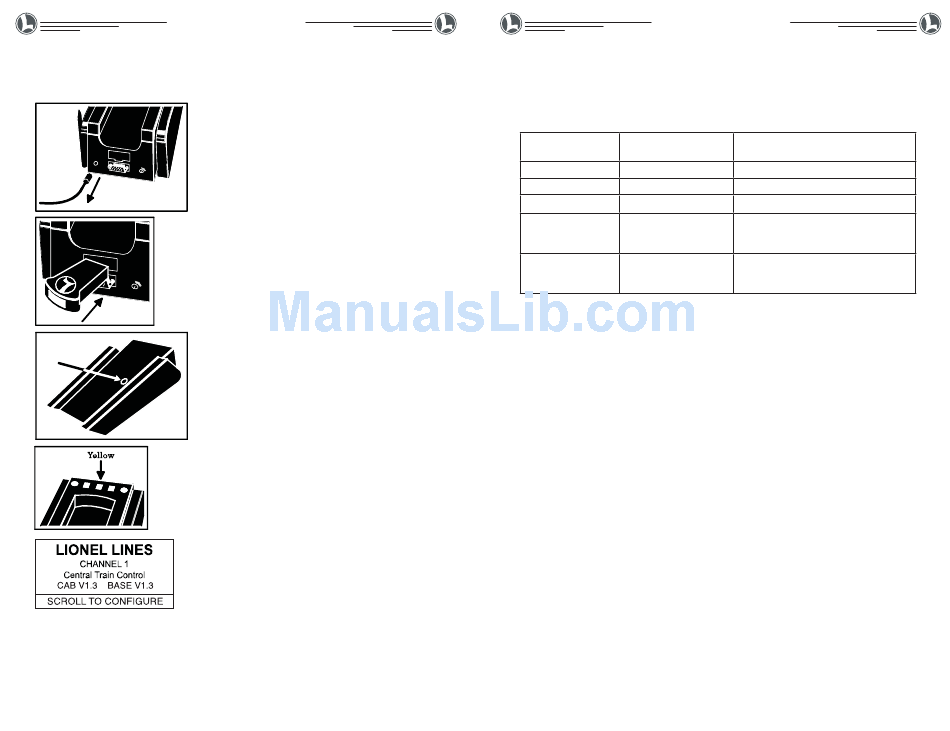

LIONEL LEGACY BASE Control System Update Module Procedure
1. Remove the Power Jack from the LEGACY Base to Power the
Base unit down.
2. Open/remove the Module port cover that is above the Data connector
and insert the BASE update Module.
Note: Be sure you are using the BASE update Module.
3. On the Bottom side of the BASE there is a Channel Select but-
ton. Press and hold the Channel Select Button while you plug
in the Power jack back into the BASE.
4. The Yellow center LED will begin to Flash on the top end of the Base. The
two other LED's will be on solid. The Lionel name on the both sides of the
Base will also Flash while programming the update. Release the channel
select button and wait until the Yellow and the side Lionel LED's stops
Flashing.
5. The BASE will Restart on its own. At that time the Green LED will
Flash once followed by the Yellow LED then fi nally the Red LED.
Once the Base restarts, turn the LEGACY CAB on. Press the CTC
button once again after the CAB fully powers up to get to the
Central Train Control screen to verify that the new software has
been installed. You will see CAB V1.3 and BASE V1.3 in the Central
Train Control scrolling screen.
Note: The status light (yellow on Base, red on remote) will stop fl ashing quickly if the update is successful. If
the light will not go off and blinks a number sequence slowly, it is indicating an error code. If you encounter
this please refer to the following table to diagnose the cause.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 76
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
Railroad System Management (continued)
Module Update Error Codes
Light Sequence Error Description
2 BLINKS IN A ROW Hardware error detected on
data line
3 BLINKS IN A ROW Incorrect Module Inserted
4 BLINKS IN A ROW Memory Module corrupted
5 BLINKS IN A ROW Module to advanced to read
6 BLINKS IN A ROW Verify fail after program
1 LONG, 1 SHORT BLINK Internal setting error
1 LONG, 2 SHORT BLINKS
1 LONG, 3 SHORT BLINKS
Note: that if you do a full reprogram it is suggested that you perform a 'clear database' command from the CTC
menu once the LEGACY Control System update is complete. Any additional instructions or steps will be included
in the Update Module you received.
NOTES
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Possible Cause
• Removed module during update
• Module not inserted properly
Incorrect module inserted
Bad Module
Incorrect or unrecognized new module
• Removed Module during update
• Module not inserted properly
• Possible hardware issue
Contact Customer Service Immediately
(586) 949-4100
