LIONEL LEGACY CONTROL SYSTEM
Controlling Your Layout: ROUTES (continued)

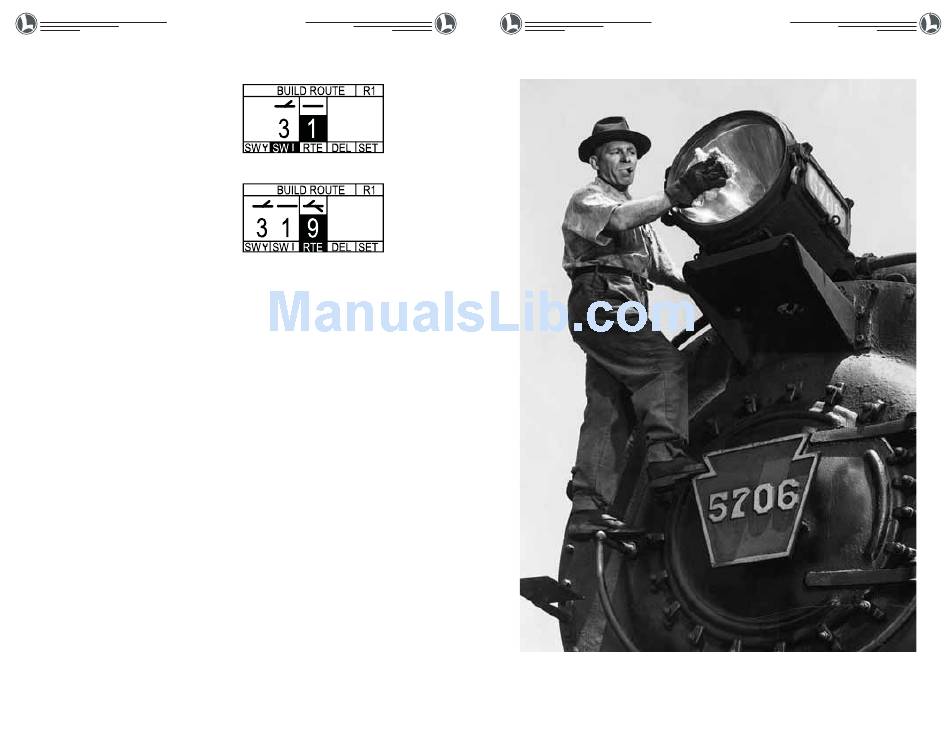

8. Add another Switch ID#
a. The previous Switch ID# will move to the left
and the blinking box will be ready for your
next Switch to be added
9. Select the correct icon for your Switch
10. Enter the rest of the Switch ID#'s in the blinking box
11. Select the correct icons for each one as you add them
12. To add an existing Route to a Route,
a. Enter a Route ID#
b. Press RTE
c. The RTE icon will appear
13. Add all the Switches and Routes to your Route in this manner.
14. To change the direction of a Switch in your Route
a. Turn the Velocity Throttle to move the Switch you want to change into the blinking box
b. Press the through or diverging icon to change the direction of the selected Switch
15. To delete a Switch or Route from your Route
a. Turn the Velocity Throttle to move the Switch or Route you want to delete into the blinking box
b. Press DEL
16. To save your new Route
a. Press SET
b. Watch the on-screen prompts and wait until you see the message ROUTE CREATED!
17. Press CTC to exit to the operating screen

TRACK POWER

Power your layout with one or more of the following products. Be sure to read the direc-
tions that come with the products. Some of these products will require a TMCC CAB-1 to
operate. Some can accept additional power from Power-Houses. It is recommended to add
the #994 Power-Master Bridge (# 6-24279) to your layout to operate some of these prod-
ucts with the LEGACY system.
TPC Track Power Controller
• Requires external power from Power–House
or Transformer
• Plugs into DB9 port on LEGACY Command Base
• Address as Engine (EN) 0-99 or Track (TR) 0-9
Other Post-War Power Supplies/ Transformers ZW,
KW, Train-Master 250W, Train-Master 150W etc.
• Non-addressable by remote control
• Built in automatic circuit Breaker
Power-Houses are available in 135 and 180 watt versions and provide power to these devices with the excep-
tion of the post war transformers in the "Other" category. Extra Power-Houses can be added to the PWC ZW
and TPC to provide more power.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Power-House Lock-On / Power-House set
• Non-addressable by remote control
• Built in automatic Circuit Breaker
Power-Master / Power-House set
• Requires #994 Power-Master Bridge
(# 6-24279) or TMCC CAB-1
• Address as Track (TR) 0-9
PWC ZW / Power-House set
• Communication through Track connection (455khz)
• Address as Track (TR) 1-9
• Address as (TR) 0 for conventional control
Page 72
