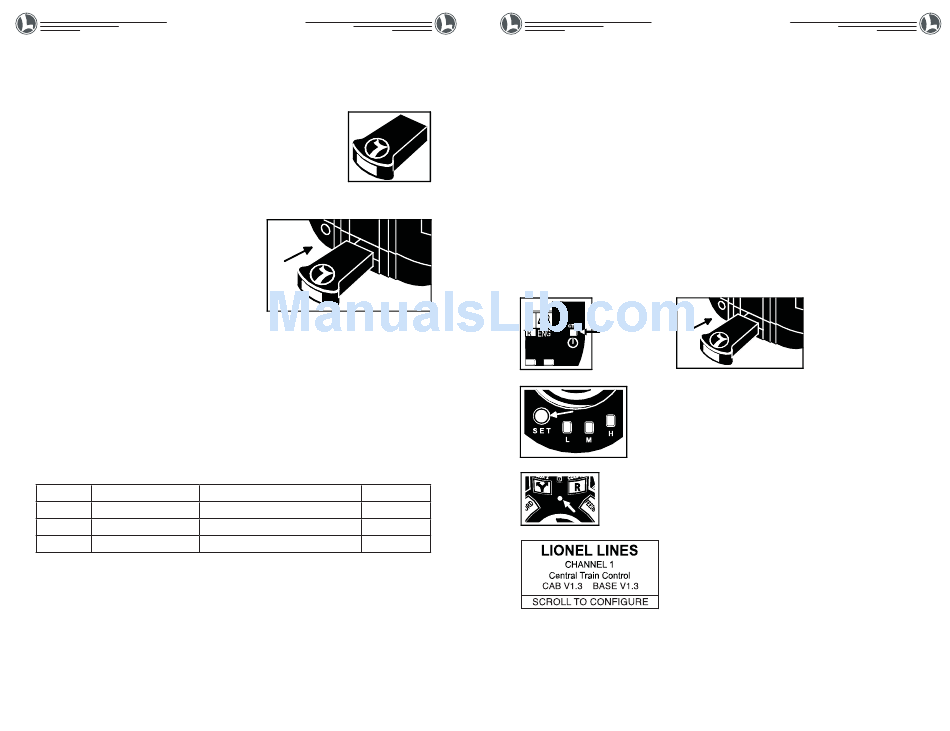

Engine Memory Module Download to the LEGACY Control System CAB-2
Your new LIONEL LEGACY Control System equipped product has
a unique memory module included. There are two tan generic TMCC
modules included with the #990 LEGACY Command set. Insert the
appropriate supplied engine memory module (either LEGACY or Generic
TMCC) into the CAB-2 and load the system with all of your new engine
options. This is a necessary step that you only do once.
Downloading LEGACY Engine Memory Modules
1. Address a LIONEL LEGACY Control System equipped engine with its ID#
2. Press INFO
3. Select LOAD with the soft keys
4. Insert Orange Memory Module into remote
5. Follow on-screen prompts
Information about your new engine will be down-
loaded into the system and associated with the ID#
you have entered. All other remotes will have the
information too.
TMCC and Generic Engine Memory Modules
Generic Steam and Diesel engine Memory modules are included with the LEGACY
Control system to make it easy to enter the most important options of your existing TMCC
engines. For specifi c information, (not necessary to operate) you will only need to enter the
RailSounds type, road-name and road-number manually.
Once the info has been entered manually (see page 55, Engine options), address the
engine, and you are ready to operate.
NOTE: Supplied with your LEGACY Control System are 4 modules, two tan modules for generic TMCC steam or
generic TMCC diesel, and Two blue modules for restoring factory settings to the CAB-2 and LEGACY Command
Base. These modules are clearly labeled on the end.
Memory Module Description Table
Color Type Description
ORANGE Factory Engine Module Contains Engine Information
TAN Generic Engine Modules Contains Generic Engine Information
BLUE Factory OS Modules Full Software
BLACK Writable User Module Shipping blank
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Used In
CAB-2
CAB-2
BASE-2 / CAB-2
BASE-2 / CAB-2
Page 74
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
Railroad System Management (continued)
LIONEL LEGACY Control System Revision Memory Modules
The Lionel LEGACY system allows you to choose what version of software you would like
to use. As Updates are released you may want to go back to the original software. The blue
factory modules 'CAB-2 program 1.3' and 'BASE-2 program 1.3' are full reprogram modules
These modules are programmed to restore the Base/Cab to original factory default settings.
Note: Some program modules are revision updates and others are full reprogram updates.
Full reprogram updates: The Modules that came with your #990 set are full reprogram
updates and they perform the FULL update procedure.
Revision updates: Revision Update modules will only update the operating system. They
do not clear any of the memory banks. (all name & settings will remain intact)
Warning: If the full reprogram module is used, you will lose all stored names and set-
tings!!
LIONEL LEGACY CAB Control System Update Module Procedure
1. Turn Power off
using the Central
Train Control
Button (CTC).
3. Press and Hold the SET Button on the bottom of the LEGACY CAB.
4. While holding down the SET button,
Press the CTC Button to turn the Power on to begin the update.
5. The Red indicator light will start to Flash rapidly,
6. Release the SET Button.
7. Once the Red indicator light stops, the CAB will self-start. Your
CAB will now be updated. The update will be displayed in the
Central Train Control scrolling screen. You will see CAB V 1.3 for
the Remote and Base V 1.3 for the Base version.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
2. Remove the Module port
cover from the top of the
LEGACY CAB. Then insert
the CAB Update Module
into the Module port.
Note: Make sure that you use the
Module that is labeled CAB.
Page 75
