LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)
WHISTLE HORN SIGNALS
The following is an abbreviated list of signals for use with the LEGACY Real-Time Quilling Whistle or Horn.
The superior ability to control the duration of signals with the CAB-2 Warning Sound Controller makes issu-
ing these signals easy and accurate.
Sources: B&O, C&O Operating Rules, 1969, The Pennsylvania Railroad Book of Rules, 1956
"o" = short sound "-" = long sound "____" = sustained sound
o Apply brakes. Stop.
- - Release brakes. Proceed.
o o o When standing - Back. When running - Stop at next Passenger Station.
- - o ____ Approaching public grade crossings at grade. To be prolonged or repeated
until crossing is reached
____ Approaching stations, junctions, and railroad crossings at grade.
o o o... Alarm for persons or livestock on the track.
____ o When running on left hand track of a two track section:
(1) Approaching stations, curves, or other points where view may be
obscured;
(2) Approaching passenger or freight trains and when passing freight trains.

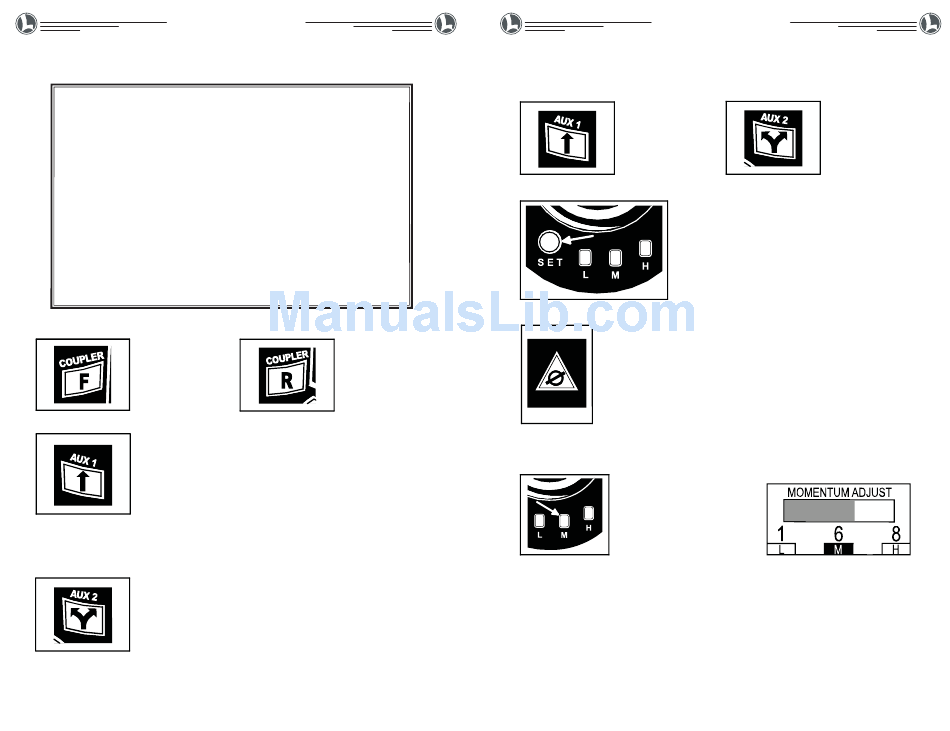

COUPLERS

Press the "F" front Coupler
button
1. Uncouple the front
coupler
AUX-1
Press AUX 1
Note: When Crew Talk or Tower Com Icons in the Touch-Screen keypad are negative (darkened),
pressing them in that condition will trigger a negative reply from the Tower as to status of the
orders i.e. "NOT cleared for departure" or "HOLD your position" etc, and the response will be posi-
tive i.e. "Cleared for departure" if the Icon is not negative. This feature enables you to play out a
scene where the engineer is waiting for departure and fi nally get the order when YOU decide it is
appropriate
1. With ENG addressed, open Touch-Screen control panel
2. Press AUX 1
3. Display Crew-talk and Tower-com Touch-Screen icons become negative
4. Press icon to trigger negative dialog
AUX-2
Press AUX 2
1. Headlight on/off
2. TMCC programming functions (follow TMCC directions that come with locomotive)
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
"..." - succession of sound
Press the "R" rear Coupler
button
1. Uncouple the rear
coupler
Page 26
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)
SWITCH THROUGH
Press the Switch Through
button
1. Throw an addressed switch
through (or straight)

SET

Used for various programming functions, i.e.:
Press the SET button
1. Set address ID#
2. Set STALL
3. Provide programming function for some layout control compo-
nents

HALT

Press Halt
1. Stop all trains

L, M, H MOMENTUM

L, M, and H are momentum levels in all LIONEL LEGACY Control System equipped engines.
Choose momentum level
1. Press L, M, H
Press and hold M
1. Open display to choose from 8 levels of
medium momentum
2. Use Velocity Throttle to adjust
3. Release M
Change momentum settings while underway and check out the response. It is easy to
change your acceleration and deceleration rate while moving, just press the L, M, or H
button.
LEGACY Momentum makes a train operate more realistically. But it take a long time to
stop, just like a real train.
If you have a Target Speed that is 0 and a Train Speed that is high and you want to stop
fast, try the L button! You can also use full braking on the Independent Engine Brake (pull
it all the way), which is almost as fast.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
SWITCH OUT
Press the Switch Out button
1. Throw an addressed
switch out (or curved )
Page 27
