CAB-2 Controls (continued)

INFO

The INFO menu is where you fi nd all of your Engine,
Train, Accessory, Switch and Route options. Options are
either downloaded from a memory module that came
with your LIONEL LEGACY product or entered manually
for other products. This procedure only needs to be done
once.
IMPORTANT! When you have completed entering your engine's INFO, the LEGACY sys-
tem will know how to control your train, and how you want to view it on the Display screen,
whether it is LEGACY or TMCC.
Accessing Engine INFO
Address engine by its ID#
1. Press INFO
2. Press SCROLL button repeatedly to move through categories of
Options
Entering Engine INFO with Memory Modules
See page 74
Entering Engine Options Manually
Each LEGACY Command set comes with a TMCC
diesel and steam Memory Module. These modules have
the important INFO your LEGACY system uses to control
the engine correctly. There are still some options you may
want to adjust or enter manually.
Once you have accessed the Engine INFO you may enter options manually :
1. Enter the correct info in each of the engine tabs
a. Find the desired ENGINE OPTION in the display window.
b. Select it by pressing the softkey under it.
c. Select one of the choices in every category.
d. Check all the ENGINE OPTION categories and make sure the choices are the desired ones.
Note: Make sure you get every desired Engine Option right. It will perfect the LEGACY
system operation of your Velocity Throttle, Control Panel, Speed Graph and RailSounds.
"Clean and Lubricate Your Equipment"
LIONEL LEGACY CONTROL SYSTEM
Page 46
"Wipe Your Track Regularly"
LIONEL LEGACY CONTROL SYSTEM
CAB-2 Controls (continued)

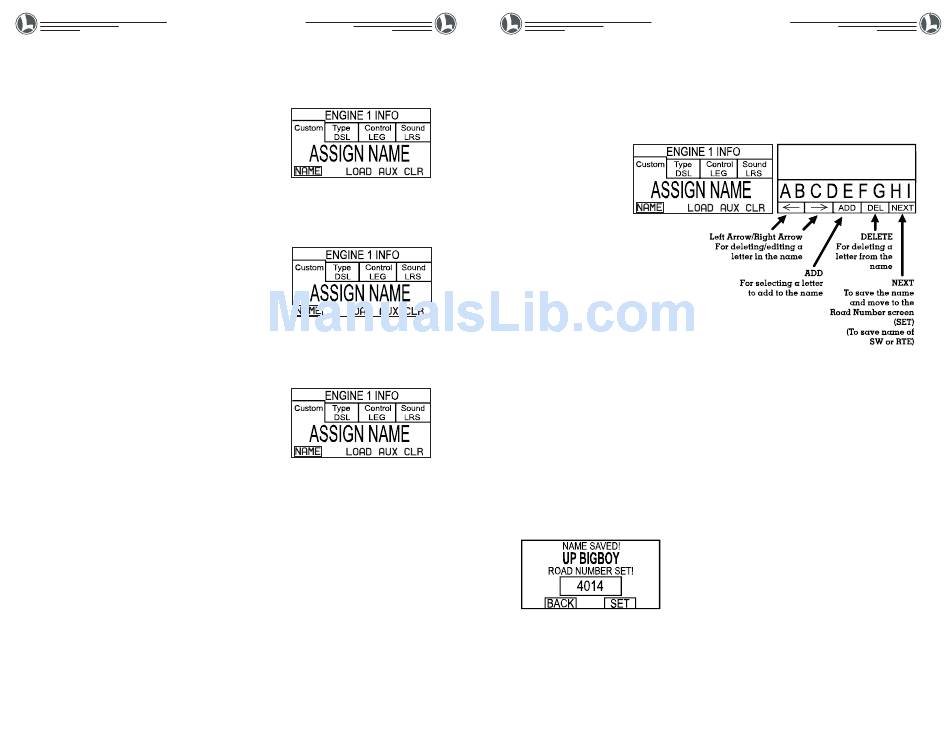

INFO - NAMING PROCEDURE
Names can be given to Engines, Trains, Accessories, Switches and Routes. Follow this
method to use the LEGACY Naming feature.
Address an EN, TR, ACC, or SW.
Enter the ID # (1-99)
Press INFO
Press the NAME softkey.
You will see the Alpha-Numeric
character choices.
1. Using the Velocity Throttle scroll to the fi rst
character.
2. Add the character by pressing the softkey
under ADD.
3. Add additional characters.
4. If using multiple words separate them using a SPACE.
5. Use the LEFT and RIGHT ARROW keys to select characters to edit, delete them
and replace them.
6. Delete characters by using the softkey under DELETE.
7. There is a limit of 31 characters (including SPACES). Use abbreviations where needed.
8. The Touch-Screen can be used to enter numerics (Add must be pressed to add them to the name.)
9. When the last letter of the name you are entering is highlighted DO NOT press the ADD softkey, simply
press the NEXT softkey.
10. When fi nished adding the name (for ENG, ACC RTE & TR only) press the NEXT softkey. (For SW press the
SET softkey or the SET button on the bottom of the CAB-2. The remote will automatically exit the naming
screen.)
11. The "Assign Road Number" screen will appear (this screen will not appear for RTE or SW naming).
12. Enter a road number if you want. This can be up to a 4-digit road number. (If you enter the wrong number,
simply fi ll the box with additional numbers. Once the box is full, re-enter the number you want.)
13. Press the SET softkey or the SET button on the bottom of the CAB-2. NAME SAVED will appear momentarily
then the screen will return to the INFO page.
14. Press the CTC button to exit to the operating screen.
