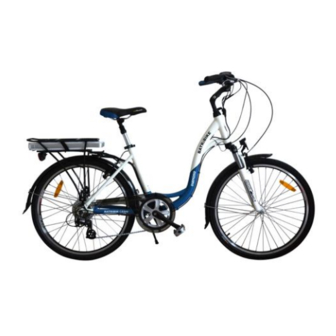

  • Page 1 GRANITE Pro DIAMOND Pro Owner Manual Pro Spec Models...
  • Page 2 DATATAG ETCH NUMBER:- IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.

  • Page 4: Parts Identification

    PARTS IDENTIFICATION UNDERSIDE VIEW We continually strive to ensure that we provide you with OF BATTERY the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE LCD (Display) Battery Power Switch Thumb Throttle Charging Socket Rear Brake Lever Fuse 35A Front Brake Lever USB Socket...
  • Page 5 OTHER SIDE UNDERSIDE OF FRAME BENEATH CRANK VIEW OF BATTERY WHEN REMOVED FROM BIKE OTHER SIDE UNDERSIDE OF FRAME BENEATH CRANK...

  • Page 6: Battery Care & Charging

    BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. Storage Batteries do not like to be stored in very hot or very cold conditions or to be subject to conditions of high moisture.
  • Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
  • Page 8 Usage Your BATRIBIKE Electric Bicycle can be used as a normal pedal cycle by simply not switching on the battery. (or using in Zero Assist - see below) Display Information Areas SPEED STATUS POWER ICON AREA USAGE Buttons POWER DOWN...
  • Page 9 ELECTRIC BICYCLE FUNCTIONS Switching On To use under electric power, switch on at the main power switch under the rear of the battery, then press the POWER button on the handlebar LCD display. Control Buttons By means of the three buttons, POWER, UP and DOWN, on the handlebar mounted display unit, the various functions of the power controller and Cycle Computer can be utilised.
  • Page 10 Battery Meter The LCD shows the charge remaining in the battery in the lower right of the display. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE FLASHING...
  • Page 11 Speed Display The centre large digits will normally display the current speed of the bicycle. For the UK market this is set to show miles per hour (MPH). The display is accurate to about 10% when the wheel size is correctly calibrated and the tyre inflated as per the manufacturers recommendations.
  • Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from LOW (1 bar), to HIGH (5 bars). The motor will then be activated upon pedalling. There is a rotation sensor located near the crank which senses when the pedals are being used.
  • Page 13 When the throttle is operational the throttle icon will light. If any other indicators show or the brake indicator remains active when the brakes are not used then a malfunction may have occured and you should refer to your BATRIBIKE dealer.
  • Page 14 If the assistance level is set to ZERO (one bar flashing), then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
  • Page 15 BS EN15194 Compliance The BATRIBIKE Pro range is compliant with BS EN15194. For the British market, the addition of a throttle control has rendered this not compliant in some countries. ● You are recommended to seek advice from the relevant...

  • Page 16: Cycle Computer Functions

    CYCLE COMPUTER The Pro models have useful Cycle Computer functions built in. There is a built in sensor and pickup located in the rear hub which activates the speed and distance readings. Normal Display When first turned on the display shows the Trip Distance (TRIP) in the bottom left.
  • Page 17 Resetting the Trip To reset the TRIP distance at the start of a journey, simply press and hold the UP and DOWN buttons simultaneously, and hold for 6 seconds. TOGETHER The Odometer distance displays the total distance travelled by the bicycle since leaving the factory and cannot be reset.

  • Page 18: Standard Bicycle Functions

    STANDARD BICYCLE FUNCTIONS Gears The DIAMOND Pro and GRANITE Pro are provided with 7 speed Shimano Altus gears. To change gear you use the right handlebar mounted Quick Shift selectors. SQUEEZE to Gear number 1 is low for hills and rough change UP terrain and gear 7 is high for normal road use.
  • Page 19 The luggage rack provided is designed to carry a maximum load of 25kg. Make sure that any items carried are securely strapped and nothing is able to get caught in the rear wheel. All other operation of your BATRIBIKE Electric Bicycle is as per a normal pedal cycle.
  • Page 20 Quick Release fittings for Seat Height Adjustment With the locking lever in the loose position, tighten the nut until finger tight. The final tightening is done by moving the lever to the locked position. To undo move the lever to the loose position to enable height adjustment.
  • Page 21 Adjust the bar rotation angle by loosening with the two 'C' bolts shown. Items shown as 'D' should not need adjustment. Ensure all bolts are secured properly after adjustment. If in RAKE ANGLE ADJUSTMENT GRANITE Pro (above) & DIAMOND Pro (right) HEIGHT ADJUSTMENT VIEW FROM BELOW...
  • Page 22 ® The Datatag UV “Stealth” PRO Cycle System is ideal for BATRIBIKE Electric Bicycles and is a Police Preferred Crime Prevention Product. The system protects your bicycle frame, forks and battery, plus the Datadots® are used to mark many of your electric and non-electric cycle components.

  • Page 23: Datatag

    Number, found on the label attached to your frame, and the Datatag Stealth Etch Code marked on the frame, forks and battery. (Only visible in UV light). You also need the bike Serial Number. This is a separate registration system to our Batribike Warranty Registration.

  • Page 24: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.

  • Page 25: Removing The Rear Wheel

    (or YEARLY) ● Hub motor and general inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. This includes opening up the hub motor to inspect and lubricate the gears. Tyre Pressures The tyres should be pumped up to within the range stated on the sidewall. This should be regularly checked as running with the correct pressures will ensure maximum range from the battery.

  • Page 26: Special Battery Features

    SPECIAL BATTERY FEATURES Battery Fuse If the battery will not operate or charge correctly, firstly switch off the battery and check the battery fuse (rated 35A) located on the underside of the battery beneath the screw cover. Use a small cross-head (+) screwdriver to remove the cover.
  • Page 27 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
  • Page 28 Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...

  • Page 29: Warranty

    6. In the unlikely event of a battery failure, the battery must be returned to Batribike for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.
  • Page 30 GRANITE Pro Technical Specifictaion...
  • Page 31 DIAMOND Pro Technical Specifictaion...
  • Page 32 BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow BATRIBIKE are Lincoln Full Members of LN1 2AH the British Electric Phone: 01427 787774 Bicycle Association E-mail: support@batribike.com ----- USER MANUAL Pro Range 2014 - ISSUE 1 - ©2014 Fallowgate Limited -----...
