DELT+
Featuring Connect+
DELTA 48
batribike.com
Owner
Manual
DELTA 43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELTA 43 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Batribike DELTA 43

Summary of Contents for Batribike DELTA 43

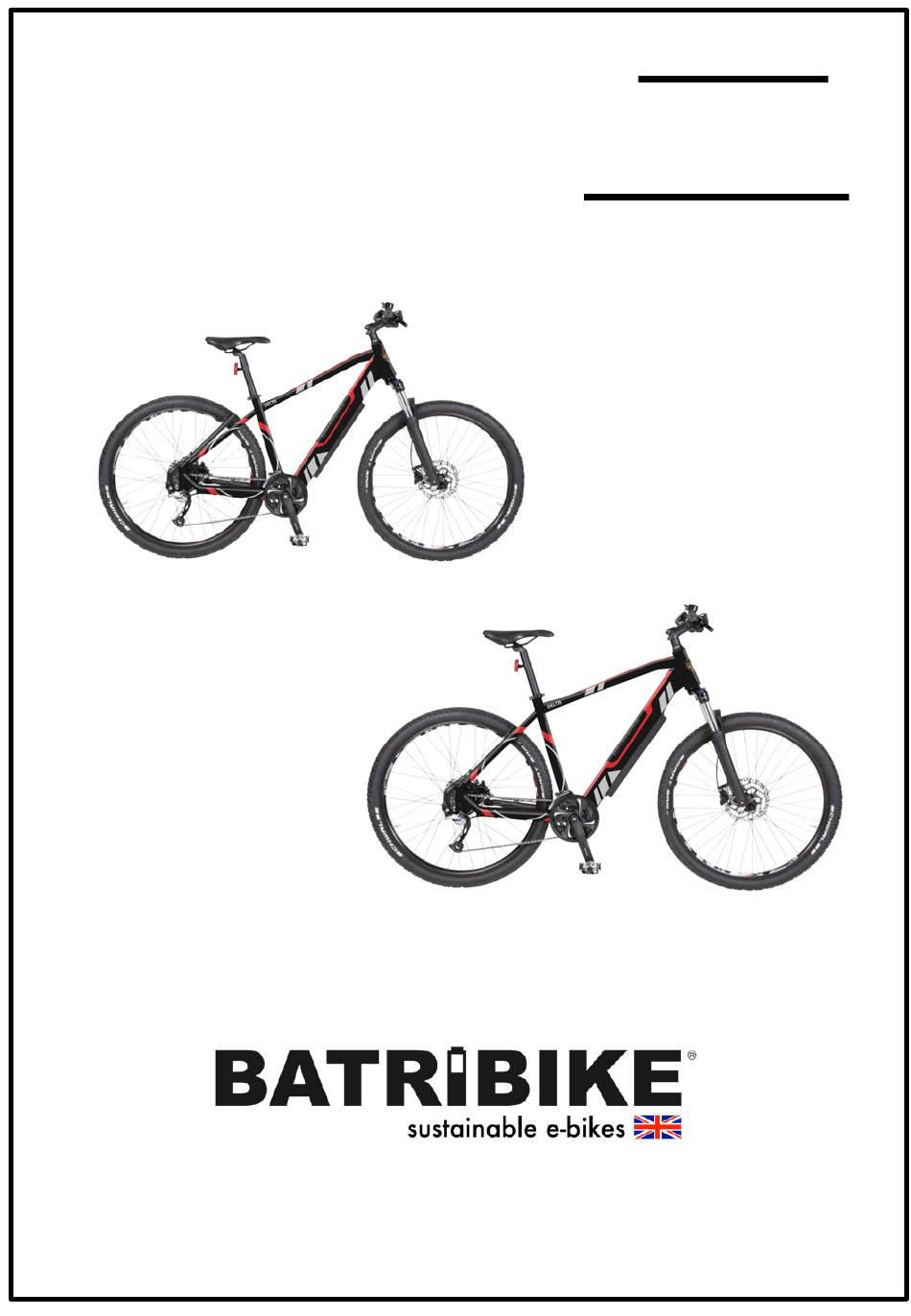

  • Page 1 Owner DELT+ Manual Featuring Connect+ DELTA 43 DELTA 48 batribike.com...
  • Page 2 Keep your receipt for a minimum of 5 years as it is your proof of purchase and entitlement to warranty. For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.

  • Page 4: Parts Identification

    PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Connect+ LED Display Seat Adjust (Position - Front/Back) C+ App. (phone & holder not supplied) Seat Adjust (Height) - Quick Release Bell Front Tyre 27.5 x 2.10...
  • Page 5 OTHER SIDE UNDERSIDE OF FRAME HANDLEBAR DISPLAY OPTIONS STANDARD FITMENT (Connect+ LED) SHOWN LEFT CONNECT+ SYSTEM CAN ALSO BE CONTROLLED BY SMART PHONE APP. (NOT SHOWN)

  • Page 6: Battery Care & Charging

    BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. First time use Your battery will be supplied in a state of sleep from the factory. The first time you use the battery it requires activation by being fully charged.
  • Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
  • Page 8 Usage Your BATRIBIKE electric bicycle has the CONNECT+ system fitted as standard to the bike. The bicycle can be operated with just the handlebar mounted control / display or, with enhanced, additional features via your smartphone. Connect+ See separate manual for operation LED display fitted as standard.
  • Page 9 Pedal Assistance - Fitted LED display There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 5 (Highest). The motor will then be activated upon pedalling. PEDAL ASSISTANCE FROM THE MOTOR LEVEL / RANGE EXAMPLE OF USAGE...

  • Page 10: Standard Bicycle Functions

    STANDARD BICYCLE FUNCTIONS Gears Your BATRIBIKE is provided with 24 speed derailleur gears with twin lever gear changers. To change gear you use the right handlebar levers for the rear 8 speed and the left handlebar levers for the front 3 speed (chainwheel).
  • Page 11 Rear (Derailleur) Gears x 8 SQUEEZE WITH FINGER INDICATOR PUSH WITH WINDOW DOWN THUMB Braking To stop, cease pedalling and pull the brake levers. Also ensure that the throttle is not operated. Remember that the DELTA is equipped with powerful hydraulic brakes and will stop quickly. Braking will be less effective in wet conditions and your riding style should be adjusted accordingly.
  • Page 12 The height of the saddle can be adjusted to suit the rider. If you do not feel confident with making these adjustments then your BATRIBIKE Dealer will be able to set up the bike initially. The saddle height is adjusted...

  • Page 14: Removing The Battery

    Removing the Battery To remove the battery, turn off at the handlebar display, unlock the battery using the key provided. Push the battery locking tab downwards away from the battery and using the finger insert pull the lower part of the battery downwards and angle the battery out of the frame.

  • Page 15: Accessing Charging Socket

    Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.

  • Page 16: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
  • Page 17 After 3,000 miles (5,000 km) (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures Recommended Tightening Torques Item Torque Item Torque The tyres should be...

  • Page 18: Warranty

    Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...
  • Page 19 5. In the unlikely event of a battery failure, the battery must be returned to Batribike, via your Batribike dealer for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.

  • Page 20: Specifications

    DELTA - Specifications (SUBJECT TO CHANGE WITHOUT NOTICE) MOTOR GEARS 250W Rear Hub mounted 45Nm 24 Speed (8 x 3) Promovec Motor with 3 year Warranty microSHIFT Derailleur Gears and shifter BRAKES WEIGHT of BIKE Shimano hydraulic disc brakes front 17.8 kg (39.2 lbs) without battery and rear 19.9 kg (43.9 lbs) with Eco battery...

  • Page 23: Safety Notices

    See pages 6 and 7 for full battery care and charging. See page 15 for battery disposal. Product Description Your Batribike has been produced according to the guidelines in European standard EPAC EN 15194:2017 and the classification according to EN 17406 The frame is produced in aluminum, which provides a stiff and robust construction and low weight is maintained.
  • Page 24 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln LN1 2PQ BATRIBIKE are Phone: 01427 787774 Members of the Bicycle Association E-mail: support@batribike.com of Great Britain ----- USER MANUAL DELTA - ISSUE 5 - ©2022 Batribike Limited -----...
  • Page 25 CONNECT+ Owner Manual CONTROL SYSTEM batribike.com...
  • Page 26 BATRIBIKE Thank you for purchasing a Electric Bicycle The CONNECT+ control system fitted to your bicycle has been designed and developed by our Danish partner Promovec. Your bicycle can be operated with just the handlebar mounted control / display or, to enhance your experience, you can access additional features via your smartphone*.
  • Page 27 Contents Handlebar Control ......... PAGE 3 Handlebar Control Operation ......PAGE 4 Handlebar Battery Meter ......... PAGE 6 Troubleshooting (LED flashes) ....... PAGE 7 Extended Features - Using the App....PAGE 8 App. Display ..........PAGE 10 Setting the Units & Wheel Size ...... PAGE 11 Backlight (Android) .........

  • Page 28: Handlebar Control Operation

    Handlebar Control Operation Switching On To use under electric power, switch on at the battery if required, (bike model specific), then switch on by pressing and holding the POWER button on the handlebar unit until the display lights (blue). Display LED Colours The handlebar display utilises two different colour LEDs for different functions.
  • Page 29 To fully turn off the power, switch off at the battery if required, (bike model specific). Bicycle Lights If your BATRIBIKE Electric Bicycle is supplied with lights on the front and rear, then these are switched on by pressing and holding the UP button on the handlebar display.

  • Page 30: Handlebar Battery Meter

    Handlebar Battery Meter Battery Meter The vertical row of BLUE LEDs show the charge remaining in the battery. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. When the LEDs are GREEN they indicate assistance level.

  • Page 31: Troubleshooting (Led Flashes)

    TROUBLESHOOTING Diagnostic Error Messages Initially the first LED in the battery indicator (blue) starts to flash as it finds a connection to the battery. When an error is detected all of the LED's will flash. The number of flashes determines the error code. Number of Error Action...

  • Page 32: Extended Features - Using The App

    Extended Features - Using the App. Features Connecting your smartphone to your BATRIBIKE Electric Bicycle via Bluetooth, using the Promovec app will give a range of additional features including - Current Speed - Trip Distance - Different Driving Modes - Battery Status Additionally the phone can be used as a display to control your bike*.
  • Page 33 Connecting to Your Bike Open the app and allow connection to Bluetooth. Switch on your bike using the handlebar display Make sure any other nearby bikes with connect+ are switched off. Press New Bike on your phone and the phone will search for your bike.

  • Page 34: App. Display

    App. Display Select your bike from the list. The app. will connect to the selected bike. All the features on the app. are now available. Settings Back Battery Charge level Light switch and indicator Assist Up (where fitted) Power Meter Assist Level Speed Assist Down...
  • Page 35 Setting the units When you first connect to your bike the units will be set to metric (km and cm) To change to Imperial units (mph and inches) - choose Settings, Application Toggle the unit format button to select your choice. Distances and trip time can also be reset on this screen.
  • Page 36 Setting Wheel Size (Circumference) To ensure that the speed, distance and battery distance remaining readouts are as accurate as possible it is important to have the wheel size (circumference) set to the tyre for your bike. See page 23 for guide sizes. Choose settings and bike.

  • Page 37: Backlight (Android)

    Backlight - Android only To set the Backlight Intensity - choose Settings, Application. Use the slider or set to Auto. When using Auto the slider is grey. Intensity is set by Night Mode which can be toggled on or off. For iOS the intensity is set by the phones own...

  • Page 38: Information Bar

    Information Bar Various distance and time information is available at the bottom of the display and is accessed by the left and right arrows.
  • Page 39 The higher number gives more assistance. The number on the app. and the number of lights on the LED display will be the same. Power Meter This shows the amount of power being drawn from the battery. (How hard your Batribike is working).
  • Page 40 Driving Mode The app. allows you to change the way the power is delivered. There are different "driving modes" to select from dependant on the system* installed on the bike. Speed, Eco / Normal or Set Distance. *Speed Sensor System *Torque Sensor System (Delta Plus) Assistance is activated by Assistance is activated by pressure on the...
  • Page 41 Choose - Settings - Bike - Select mode - Pop-up will auto close - Bike Icon - Mode shown on right Choose - Mode - Select mode - Pop-up will auto close - Mode shown on right...
  • Page 42 Set Distance...
  • Page 43 When the Set Distance mode is chosen this will show as either mil (miles) or km in the Driving Mode area of the screen. The distance of the journey can be set using the up and down arrows on the display to a maximum of 99km (61 miles). If the Set Distance is the same as or less than the distance remaining in the battery the rider will gain maximum assistance from the motor.
  • Page 44 In Speed and Eco modes the assistance level can be set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. The app. will still record your distance and trip time.

  • Page 45: Map

    The map feature can display your location.

  • Page 46: Service Tab

    Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
  • Page 47 Circumference Settings for BATRIBIKE Models with Standard Tyres fitted TYRE SIZE (Inches) MODEL VALUE STANDARD TYRE DESCRIPTION 28 x 1.60 VISTA 86in / 218cm Schwalbe 42-622 Spicer 28 x 1.60 GAMMA 86in / 218cm Schwalbe 42-622 Silentio 27.5 x 2.25...
  • Page 48 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln LN1 2PQ BATRIBIKE are Phone: 01427 787774 Members of the Bicycle Association E-mail: support@batribike.com of Great Britain ----- USER MANUAL CONNECT+ - ISSUE 5 - ©2022 Batribike Limited -----...
